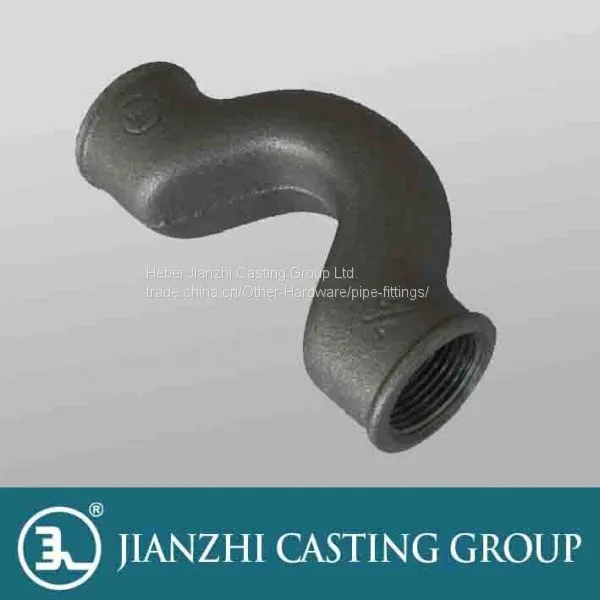

Hot Galvanized and Black Malleable Cast Iron Pipe Fitting Crossovers

Name: Hot Galvanized and Black Malleable Cast Iron Pipe Fitting Crossovers
Brand: jianzhi
SKU: 136584321

US$ 1600 - 1700 MOQ: 4 Metric Tons

Key Specifications

Brand Name:

jianzhi

Place of Origin:

China

Model Number:

Hebei Jianzhi Casting Group Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

30 days

Brand Name jianzhi

Place of Origin China

Model Number 85

Model NO.: 85 crossovers

Connection: Female

Use for: Pipeline Holding Water,Oil,Gas.

Tensile Strength: Over 330MPa

Hardness: Below 150

Transport Package: 485mmx320mmx180mm

Origin: China

Material: Iron

Suitable: Pressure Max 1.6MPa,Temperature Max 200°c

Finishing: Black,Galvanized

Elongation Rate: Over 8%

Trademark: JIANZHI

Specification: 1/8-6"

HS Code: 73071900

Products list
1	M&F Long Sweep Bend			290	Beaded Plug
2	Long Sweep Bend			291	Plain Plug
85	Crossovers			301	Round Cap
90	Elbow			310	Backnut
92	M&F Elbow			330	Union,Flat Seat
95	Union Elbow Flat Seat			331	M&F Union ,Flat Seat
97	M&F Union Elbow Flat Seat			340	Union,Taper Seat
120	45° Elbow			529	M&F Socket
130	Tee			90R	Elbow Reducing
180	Crosshead Female			130R	Tee Reducing
270	Entire Threads Socket			240	Socekt Reducing
270	Part Threads socket			241	Bushing
280	Hexagon Nipple			245	Nipple Reducing
Size		3/8"-6"		Material		Malleable Iron
Finishing		(Black) Painting, Galvanizing, Elctro-plating
Type		Banded, Beaded
Standard		ISO5922/IS049/ISO7-1 , BS EN1562:1997, DIN 2950/1692/2999
Mechanical Properties		Tensile Strength≥330MPA, Elongation rate≥8%, Hardness≤HB150
Mechanical Properties		C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0.18 Cr:0.09
Working pressure		Max 1.6MPA	Working temperature				Max 200°C

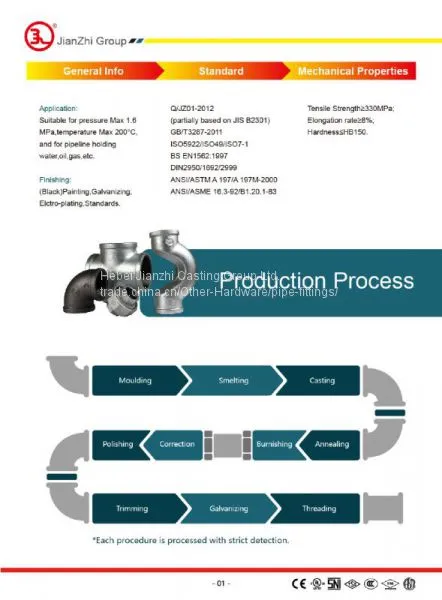

Producing Process		Pattern making - sand casting - heat treatment - galvanizing - threading - air pressure testing - packing
Usage		Fro pipeline convey water ,oil ,gas and so on
Testing		100% Air pressure testing
