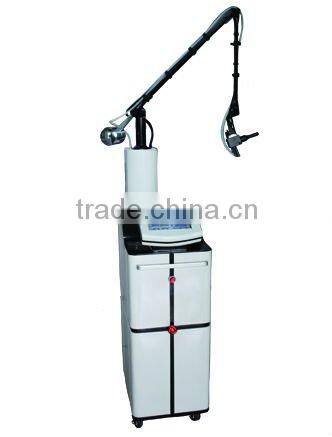

Ultra Pulse 10600nm RF CO2 Fractional Laser Beauty Equipment Wrinkle Removal To Remove Acne&Eliminate The Scar&Smooth Wrinkles&Rejuvenate Skin Skin Regeneration

Application:



1. Application Range of Fractional treatment handpiece
    a. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
    b. Various Scars: Burn Scars, Acne Scars, Surgical Scars and Keloid;
    c. Reconstruction of photoaging skin.

2. Application Range of Incision Handpiece
    a. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery
    b. In cosmetic surgery, it can be adapted to incisions for Blephaplasty, Skin Tags and Ingrow Nails, Compound Nevus and Intra Dermal Nevus etc

Specifications

Eliminate the scar,Rejuvenate,Smooth wrinkles
Eliminate striae gravidarum
Actinic keratosis

 Space formula fractional laser for wrinkle spot scar pigment removal equipment

Speicification:
Laser type: 10600nm CO2 laser
Optical maser: Special amorphous laser
Operating system: Korean manual drive intelligent controller system
Output pattern: Circle, square, ellipse, sexangle, rectangle, beeline, etc. for option
Spot diameter: 0.12-1.25mm
Laser power: 30w
Display screen: 8.4 inch colorful touch screen
Light transfer system: 7 Joint hinged arm
Guide light source: Semiconductor red light
Dot interval:  0.5, 1.0mm
Treatment depth: 0.1-2mm
Working volt: 220V/50HZ; 110V/60HZ
Dimension: 55.5*48*168cm
7 joint hinged arm: 82.5*22*14cm



Main Technical Parameters:

Laser wavelength: 10.6µm

Laser unit:TEM00 module Co2 unit (best quality for the facula)

Output power: super pulse output 0.3-7W, peak value 450W,continuous output 0.3-25W

Laser output mode: continuous, single pulse, repeat pulse, super pulse, with the optional pixel laser handpiece for Pixel laser output mode

Conducting system: seven joints longer articulated arm(the most advanced conducting light system in the world and the only one in China). It could be operated in the scope of R=1.7m, which makes the operation more flexible

Handpiece:multiple function handpiece and two kinds of focus lens for f=100mm and f=50mm. With the optional adapter, it could be used for orthopedic, gynaecology and ENT surgery

Operation mode:controlled by a touch screen and with the engineer interface and the doctor interface

Min. spot diameter:≤0.1mm, variable spot adjusting handpiece:0.1-2.5mm

Pulse width: the minimum pulse width is 0.1ms

1.Theory of operating:
Ultra pulse treatment is a "fractional" treatment that produces thousands of deep, tiny columns in your skin, called micro treatment zones. Ultra pulse is "fractional" in that it intensively treats old epidermal pigment cells without effecting any of the surrounding tissue, which reduces healing time(about 24 hours) and promotes the skin's natural process for creating newer and healthier tissue to replace the damaged tissue. Ultra pulse treatment is a safe, non-invasive procedure that allows you to rediscover the fresh, healthy skin for your beauty.

2.The scope of treatment:
Acne scars
Actinic keratosis
Basal cell carcinoma
Burn debridement
Laser skin resurfacing
Eliminate the scar: Traumatism, operation
Improve texture tone and pore size
Erase unwanted brown spots
Smooth wrinkles around the eyes and mouth
Eliminate striae gravidarum
Rejuvenate your neck, chest and hands etc.

CO2 laser system

The CO2 laser with a specific wavelength of 10.6 nm can be absorbed by human body tissue (no matter what color the skin is) by nearly 100%. Through laser emitter, the micropulsed laser beam shoots on the target skin in nanometer level to achieve a controllable precise treatment .The dimension of shooting area only can be measured in nanometer, which is precise enough for operators to control and adjust the treated depth andlayer according to the clinical diagnosis.

The energy of CO2 laser is even and steady. Its focused energy aims only at target tissue without any injury to surroundings. It is the heat and electromagnetic effect of the laser that people use to conduct non-blood or less-blood cutting, cauterizing, gasification and accurate microsurgery so as to avoid skin burnt. During the treatment, biochemical reactions of optical-thermal accelerate collagen reproduction and skin recovery,after exfoliation of the tiny scar; fresh and smooth skin can be regenerated. The device outputs invisible laser. In order to operate with more ease, red semiconductor laser has been added to indicate.



3. About US
Beijing Firstbeauty Medical Device Co.,Ltd. is a professional manufacturer in Beijing.It was established in Oct.10th of 2000.we have a team of technicians with many years experience, and we can provide good service to our customers with OEM service, the most popular style, the most competitive price, and the best after sale service.We could improve the machines according to the customer requirements.

4.Certificates
ISO 9000 approvaled in Nov. 2007,SFDA certificate in Mar 2009,CE certificate in June 2009,ISO13485 is in processing review in 2010.

5.Main products
Our main product include: IPL,RF,IPL+RF,Laser tattoo removal machine ,Laser hair removal machine ,Cavitation slimming machine, CO2 laser,Fractional co2 laser ,Liposuction machine, Mesotherapy free needles machine etc.We sincerely hope to cooperate with you ! We guarantee good quality ,prompt delivery and good afer-sales service. Welcome your enquiries!



6. Comapre picture




Contact
Beijing Firstbeauty Medical Device Co.,Ltd.
Website:
Trade manager: Ally Weng (cn220257161)



Principle of RF CO2 Fractional Laser



CO2 Fractional Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.
