Q Switch nd yag picosecond laser high power tattoo pigmentation birthmark removal from laser beauty salon equipment supplier
Application
3. The 1064nm wavelength mainly for black, blue, cyan pigment
4. The 532nm wavelength mainly for red, coffee, brown pigment
Treatment principle
using the Laser selective and adjusting Q-principle laser
Blasting, making the precise dose of a specific wavelength of energy aim at a
particularstructor in a very short period of time---colorradical: derma and epidermis
of ink, carbon particles and other exogenous and endogenous pigment granules of
melanin pigment cells. Pigment be heated suddenly then occur blasting, the
pigment was crushed tobecome smaller fragments, the crushed fragments was
phagocytosed by macrophages,with the macrophage cells goes into the lymphatic
circulation then pigment is excreted.
Utilizing the heat effect of the Nd:Yag Laser,the laser is absorded by the
hemachrome in the capillary vessel,then the capillary vessel become blocked and
disappear.
Specification
Light source |
Q-switch ND yag solid-state laser |
wavelength |
1064nm,532nm |
Output energy |
1064nm,100-2000mj;532nm,100-2000mj |
Energy density(max) |
1064nm,15J/cm2,532nm,6J/cm2 |
Pulse duration |
8±2ns |
Repetition rate |
1-10hz adjustable |
Spot size |
1-8mm |
Guide light beam |
650nm red laser |
Laser delivery |
Seven joint light guiding arms |
Cooling system |
Closed water cycle and air heat exchange |
Controlling system |
10.4 inch color touch screen |
voltage |
220V,10A,60hz;110V,10A,50hz |
dimention |
68*40*82cm |
Net weight |
75kg |
Advantage
1. Spot size: 1-7mm adjustable
2. Pulse energy: 200-2000mj
3. Pulse Rate: 1-10 Hz, each time can add by 1 Hz
4. 7-Articulation Joint Spring Arm
Traits:
1. No harm to the hair follicle and normal skin, leaving no scar.
2.The latest hi-tech of laser explosion in a twinkling.
3.Short treating time and easy operation
4. High quality controlled solid-state laser complying with international standard.
5. Computerized with big LCD
6. Tiny sense of pain, Anesthesia is unnecessary in most cases
7. No downtime and interruption of routine activities, no side effect.
8. Extensive patient and fast return of investment
Before and After Pics

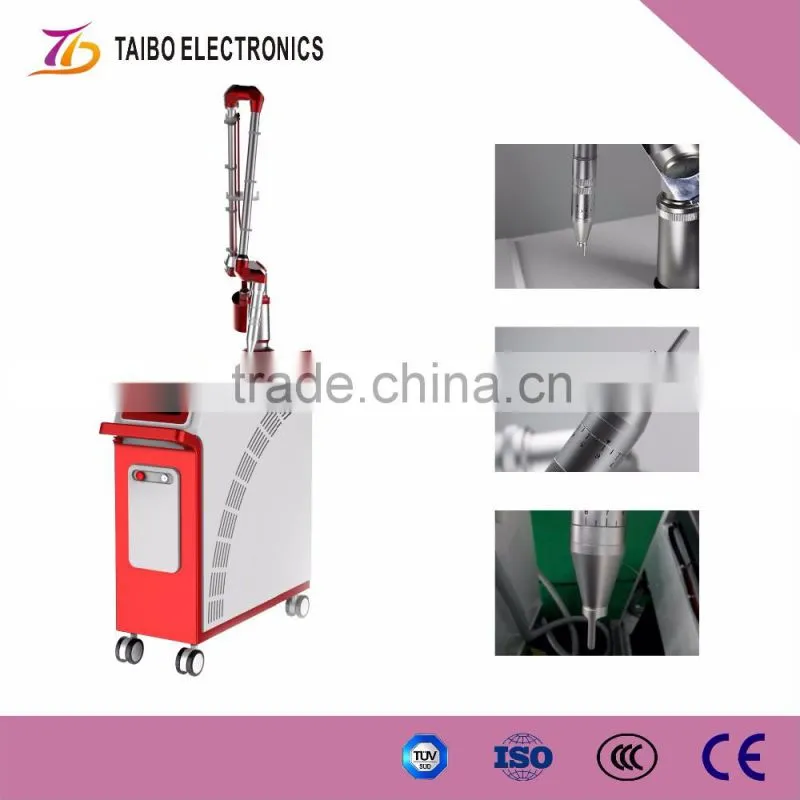

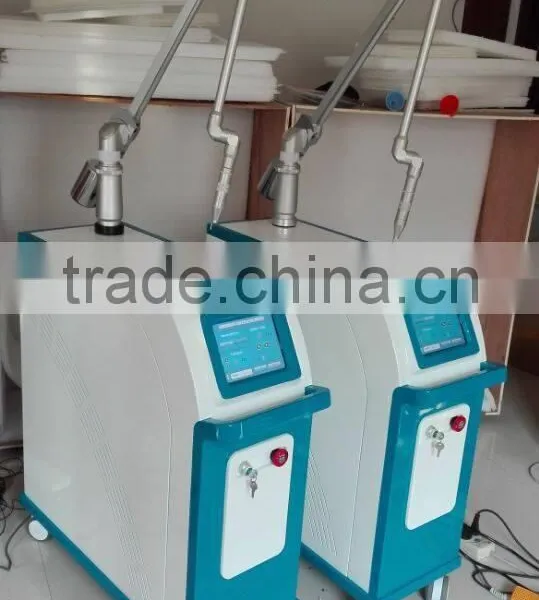

Details of this machine
FAQ
1. How many treatment sessions will tattoo removal take?
On average, professional tattoos require 5-6 treatments, while amateur tattoos may require 3-4
treatments. Each treatment should be spaced approximately one month apart. The number
of tattoo removal treatments depends on the amount and type of ink in the skin. Rarely, more
than ten treatments may be needed.
2. Do all colours of ink disappear equally well?
No. Dark (blue/black) inks and red inks fade the best. Oranges and purples usually respond well.
Green and yellow inks are the most difficult to remove, although additional treatments can produce
significant fading.
3. Will the tattoo completely disappear?
In many cases, yes. Greater than 95% fading of the tattoo may be accomplished. However it is
very important to know that over 100 tattoo inks are in use worldwide today, none of which are
regulated by the FDA. Not knowing which tattoo ink, how deep or how much was used, makes
it impossible for the physician to predict the degree of tattoo removal in any given case.
4. What type of post treatment care is necessary?
Usually there will be pinpoint bleeding associated with tattoo removal treatment. An antibacterial
ointment and dressing is applied. The treated area should be kept clean with continued
application of the ointment given to you by your physician. A shower can be taken the next day,
although the treated areas should not be scrubbed.
Tattoo ink is removed by using a specific wavelength which passes through the skin but is absorbed
by the ink. The rapid absorption of light energy causes the tattoo ink to destruct, where it is then
removed by the body’s natural filtering systems. The Q switched pulsed laser also delivers the light
in very short, high intensity pulses for maximum ink destruction. The use of this specific combination
of wavelength and rapidly pulsed light for tattoo removal results in minimal damage to the skin while
removing maximum possible amount of ink.
5. Is the tattoo removal process painful?
The laser emits light in very short flashes of light called pulses. The impact of the energy from this
powerful pulse of light is similar to the snap of a thin rubber band. A large majority of patients do
not require anaesthesia.
