Q swithced nd yag laser working Principle:
The energy of Q-switched ND:YAG laser can be absorbed by the blue and black melanin.The melanin will be fragmented so small that they can be metabolized by the lymphatic system or egested out of the body. Thus the tattoo or other pigmentations will be removed without damage to normal tissue.The treatment is safe and convenient without downtime and side effects.
Distributors wanted Tattoo Remover Q Switched Nd Yag Laser Tattoo Removal Machine/laser tattoo removal machine price
Applications:
Dermis pigmentation,such as lentigines, blue or black tattoo,eyebrow color.
Epidermis pigmentation, such as freckle, senior fleck and yellow, red, brown tattoo, lip color
Advantages:
1. The highest energy can reach 1600mj which makes the treatment to be more effective.
2. Pulse duration is 8ns which enables the treatment get the highest efficiency.
3. Particular technology of warm-up without sparkle, fulfilling CE requirement.
4.Advanced technology of counter reaction and resonant soft switch.
5.Adoption of 16 bits SCM and veneer structure more reliable performance.
6.Safe and efficient treatment:
Normal tissues under the skin barely absorb the Laser energy at the wave lengths of 1064nm
and 532nm and the Laser would not damage normal skin and no scars would be left. Automatic
protect device of water-level and water temperature makes treatment safe, efficient.
7.Portable and easy operation:
User-friendly LCD touch screen makes operation easy, its collimator makes the treatment safe, cacurate and efficient.

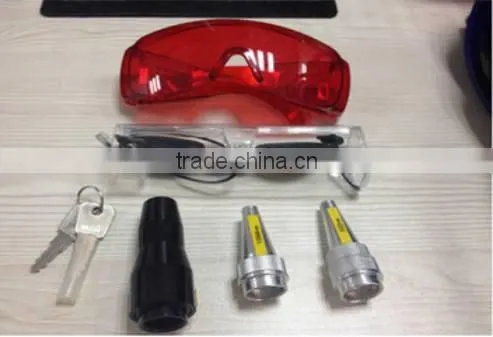

Treatment Pieces
ND:YAG LASER Hand pieces | ||
Hand pieces |
Wavelength |
Function |
|
Silver Hand piece
|
1064nm |
Remove and lighten speckles, age-spots, sun-burn spots and tattoo in black, blue colors |
Golden Hand piece |
532nm |
Remove and lighten red and brown colors tattoo |
Specifications:
Laser type |
Q-Switch Nd:YAG solid laser |
Wavelength |
1064nm /532 nm |
Output energy |
0-2000mj |
Pulse duration |
10ns |
Frequency |
1,2,3,4,5,6HZ |
Size |
380×200×200mm |
Spot diameter |
1-6mm (adjustable) |
Cooling System |
Built-in water cooled |
Net weight |
10Kg |
Gross weight |
17Kg |
Voltige |
AC220V±10%,10A,50Hz AC110V±10%,10A,50Hz |
||
Advantage:
1.touch screen
2.high power
3.two main board(energy stable control)
light guidance
5.Separable connector
6.Powerful cooling system(guarantee the long time working)
Q-Switch Nd Yag Laser Machine Working Theory:
Therapy of epidermis and dermis pigmentation
Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the
dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with
super high energy, the shot pigment mass swell quickly and breaks into small pieces, which
will be eliminated through metabolic system.
Therapy of the dilatation of capillary vessel
Utilizing the heat effect of the Nd: Yag Laser,, the laser is absorbed by the hemachrome in the
capillary vessel, then the capillary vessel become blocked and disappear.
Before and After Treatment Effect Photos:
Answers and questions
Q:Is the Laser harmless if I see it direct?
We have equipt care-protective glasses for the users
Q:What is the lamp life?
This machine has a counter shows you the total number. Averagely, Lamp life is 300,000
shots, the lamp can emit for more than 1,000,000 shots, but after 300,000 shots,you
will find the intensity of light will become a little weaker, removal tattoo may need more
times.
Q: This machine can do vascular therapy?
We are not suggest you use this machine to treatment vascular,as the blood containing
hemoglobin,and in the treatment process the hemoglobin absorpt the 532nm wavelength of
light, if it is not spread in time, it will form purpura.
Q:If we need to replace the water after finished the treatment every time?
No need to replace water every time, unless the machine is overheated,but we need to
operate it in a short time, we can choose to replace the half of hot water in the machine to cold
water .The water inside the machine is not consumed, it plays the role of cycle cooling. You
can replace the water every 15-20 days interval. Please note water should be destilled water Application of q swithched nd yag laser tattoo removal machine: ND YAG laser : tattoo/eye embroidery/eyeline/freckles removal and skin whitening. 1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color. 532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color. pigment removal. 1320nm Professional for skin rejuvenation and face deep cleaning , blackhead removal, skin tightening and whitening, skin rejuvenation.
Q:Treatment head cleaning
Clean thetreatment head softly using cotton bud in case the filter glasses is contaminated by
dust or ashes.
Q:It remove all color tattoo?
The laser is with 1064nm & 532nm treatment heads. The 1064nm remove black, brown,
cyan color pigment and the 532nm removes red, bule, coffee, yellow and other color
pigment.
Q: How many times needed to remove all tattoo?
Some tattoo is thin ( light) and easy to remove, some are not. It depends on the tattoo color.
Usually it takes about 4-6 times.
Q: Can I use alcohol to clean the screen or main board?
AbsolutelyIf use alcohol to clean it, screen will not word and the board will be cracked!
Just use fresh towel to clean. So, correct operation is very important!!!

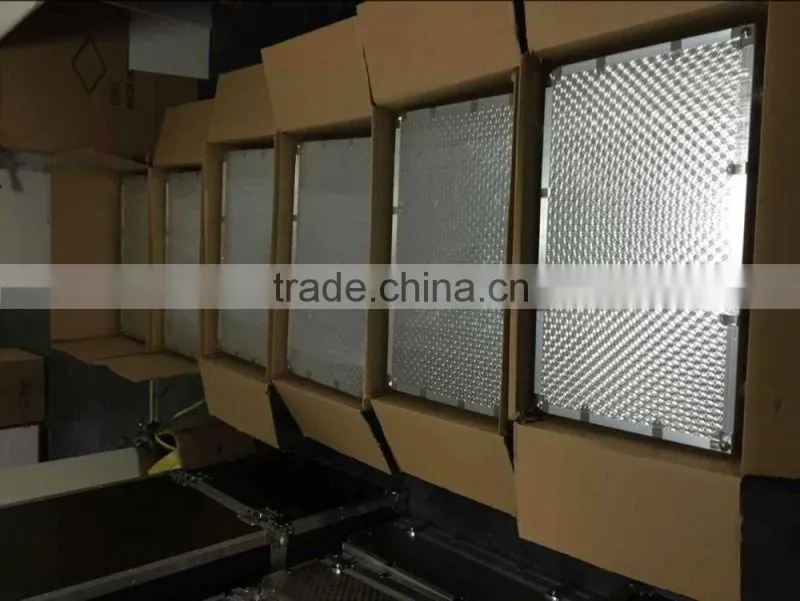

Our factory
Feature and Benefits:
1) Innovative in laser technology, strict in technical detection, precise in manufacture.
2) Special designed cooling system ensures constantly working.
3) New fashionable outlook design.
4) Portable and aseismatic, convenient for transportation.
5) No injury to normal tissue.
6) Remove pigmentation without side effects or scar.
7) Accurate infrared indication light makes the spot position more accurately and increases the utilization of light point
