The premium Q-switched Nd:YAG Laser offers the light of single wavelength 1064/532nm with sequential and uniform energy output, which will be on the target tissue directly to shatter pigments cell, not damage any normal tissue. It is very safe and effective treatment procedure for various tattoo and pigment lesions.
By bonding technology, the treatment performance is more effective than previous, it is our newest development with advantages of no light leakage, no need to debug, lower than 1‰ maintenance and much longer life time.
long pulse 1064nm 532nm Q-switch nd yag laser for tattoo removal and frecle removal
Application
3. The 1064nm wavelength mainly for black, blue, cyan pigment
4. The 532nm wavelength mainly for red, coffee, brown pigment
Treatment principle
Using the Laser selective and adjusting Q-principle laser.Blasting, making the precise dose of a specific wavelength of energy aim at aparticularstructor in a very short period of time---colorradical: derma and epidermis of ink, carbon particles and other exogenous and endogenous pigment granules of melanin pigment cells. Pigment be heated suddenly then occur blasting, the pigment was crushed tobecome smaller fragments, the crushed fragments was phagocytosed by macrophages,with the macrophage cells goes into the lymphatic
circulation then pigment is excreted.
Function:
1.Getting rid of tatoos ,eyebrow,Ota's nevus .
2. Acne treatment
3.Skin rejuvenation
4.Pigmentation treatment
5.Vascular treatment.
6.Eliminate and smooth wrinkles treatment
7.Professional tatoo removal machine for sale
8.Body Tattoo & Eyebrow Tattoo & Eyeliner Removal
9.Various Pigmentation Lesions such as Freckles, Sun Spots,
10.Color Spots, Age Spots, Nevus, Birthmarks
11.Deep Facial Cleansing & Rejuvenation Assisted With Carbon Cream
hemachrome in the capillary vessel,then the capillary vessel become blocked and disappear.
Specification
Light source |
Q-switch ND yag solid-state laser |
wavelength |
1064nm,532nm |
Output energy |
1064nm,100-2000mj;532nm,100-1000mj |
Energy density(max) |
1064nm,15J/cm2,532nm,6J/cm2 |
Pulse duration |
8±2ns |
Repetition rate |
1-10hz adjustable |
Spot size |
1-8mm |
Guide light beam |
650nm red laser |
Laser delivery |
Seven joint light guiding arms |
Cooling system |
Closed water cycle and air heat exchange TREATMENT THEORY Q-switched nd yag laser radiates the light ia absorbed by the pigmentations and results in an instantaneous blast that is light blasting principle The pigmentation particles are shattered into fragments some can be bounced out of the skin and others can be splited into tiny particles that can be engulfed by phagocytes and then eliminated by the lyphatic system. |
Controlling system |
10.4 inch color touch screen |
voltage |
220V,10A,60hz;110V,10A,50hz |
dimention |
68*40*82cm |
Net weight |
75kg |
Advantage

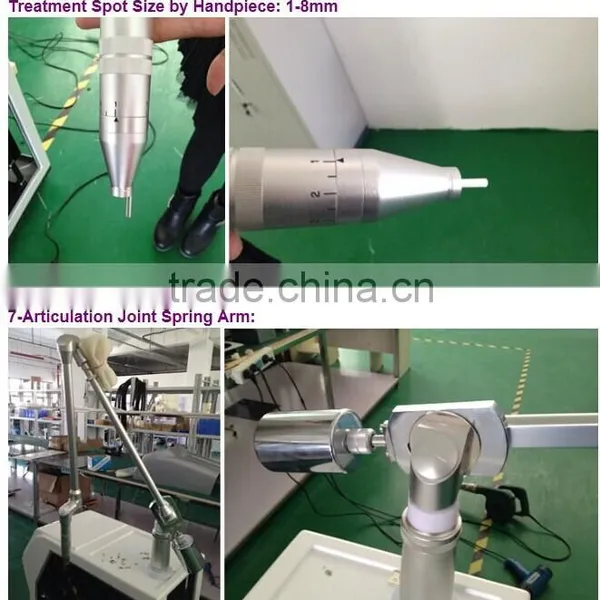

1. Spot size: 1-7mm adjustable
2. Pulse energy: 200-2000mj
3. Pulse Rate: 1-10 Hz, each time can add by 1 Hz
4. 7-Articulation Joint Spring Arm
Traits:
1. No harm to the hair follicle and normal skin, leaving no scar.
2.The latest hi-tech of laser explosion in a twinkling.
3.Short treating time and easy operation
4. High quality controlled solid-state laser complying with international standard.
5. Computerized with big LCD
6. Tiny sense of pain, Anesthesia is unnecessary in most cases
7. No downtime and interruption of routine activities, no side effect.
8. Extensive patient and fast return of investment
Before and After Pics
Details of this machine

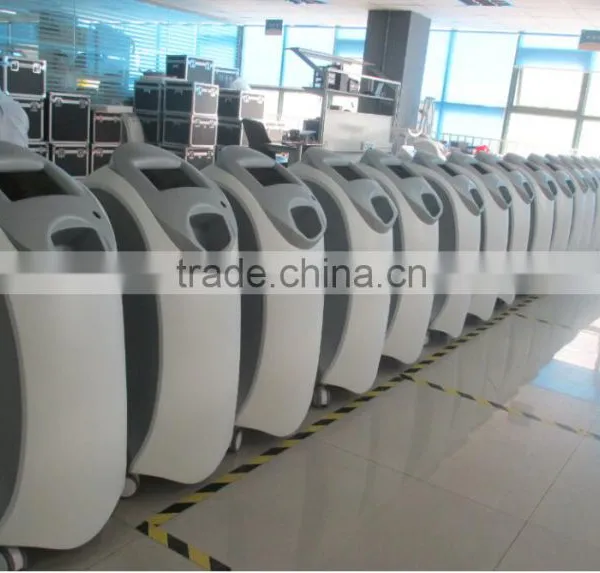

Our factory

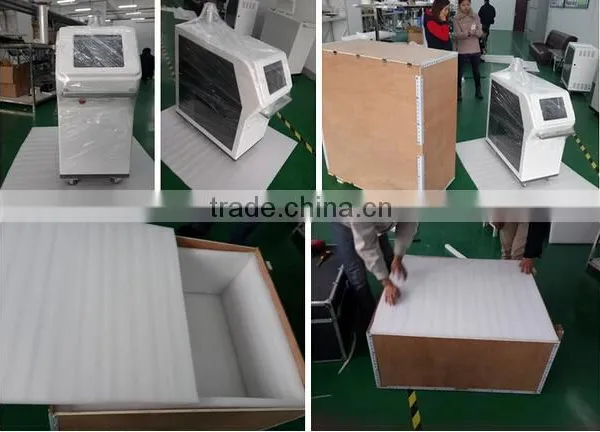

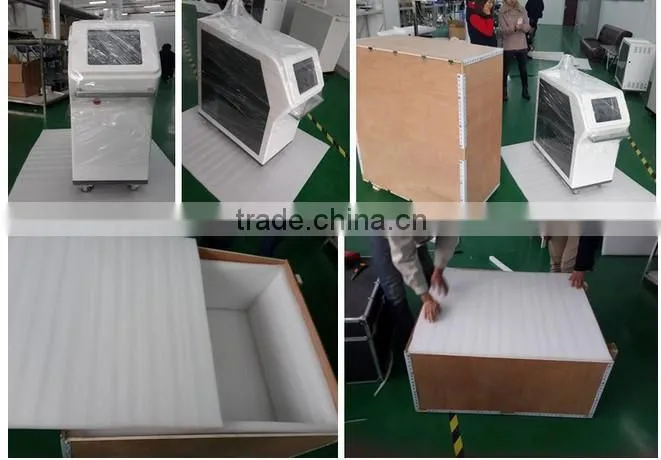

Shipping and Service
We provide door to door service by air and we can take care of custom clerance for you.
Remove spot and nevus
The speed of flashes could be set 3Hz/5Hz.Keep 3-4 fingers distance between head of handle and treatment area. It is better to use high energy for treatment until treatment area seeps a little blood. It is advised to use 1064 nm head for normal spot and nevus treatment, but for deep color spot and nevus, it is better to use 532nm head for treatment. It should have a 15-30days interval to continue next treatment until remove all.
