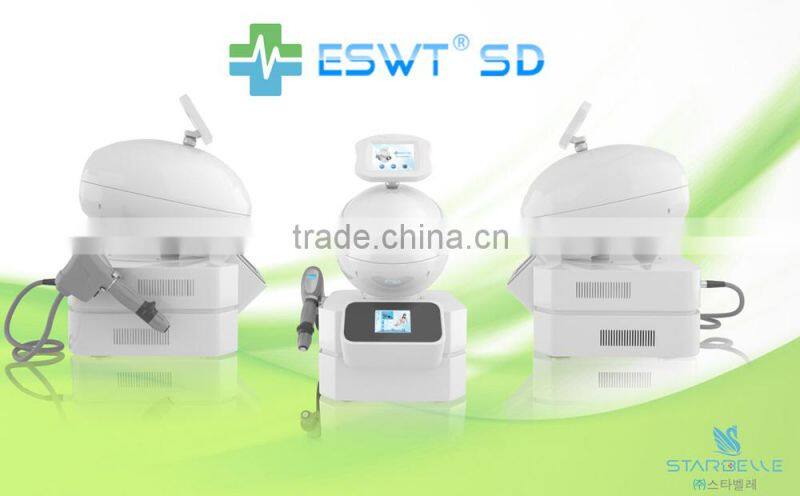

portable beauty system acoustic shockwave for cellulite removal device - ESWT SD

Portable beauty system acoustic shockwave for cellulite removal device - ESWT SD  shockwave for cellulite

Extracorporeal Shock Wave Therapy:

Fat Reduction

Muscle Toning

Body Sculpting

Skin Tightening

Cellulite Reduction

Circumferential Reduction

RSWT®
Radial Shock Wave Therapy

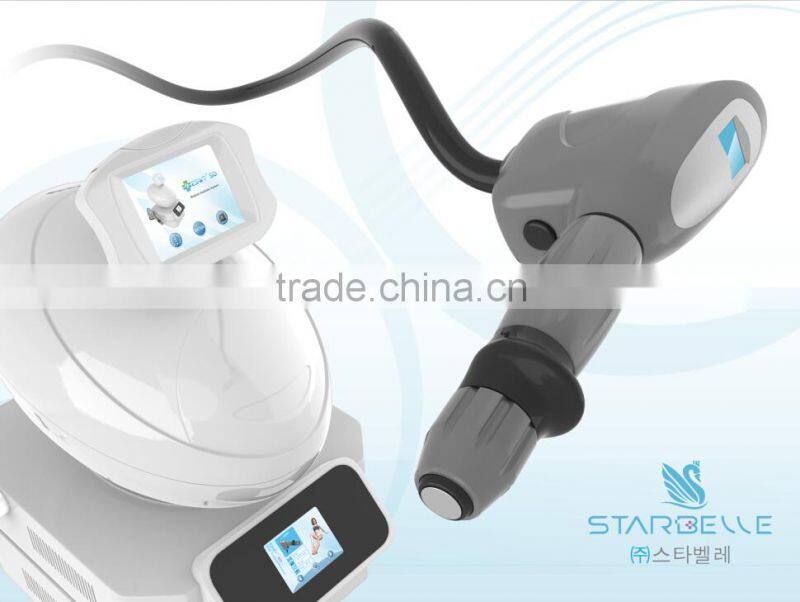

The RSWT® module is a compressed air operated, ballistic shock wave generator. A projectile is accelerated by compressed air. The kinetic energy stored in the motion and weight of the projectile is converted into acoustic energy in the form of long-wave pressure pulses when the projectile strikes a transmitter. These acoustic pulses are transmitted to the target tissue by means of coupling gel.

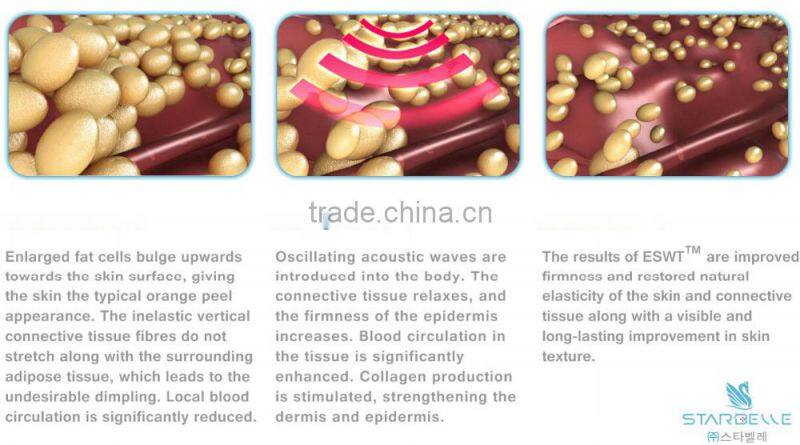

Shocking Your Fat Out!

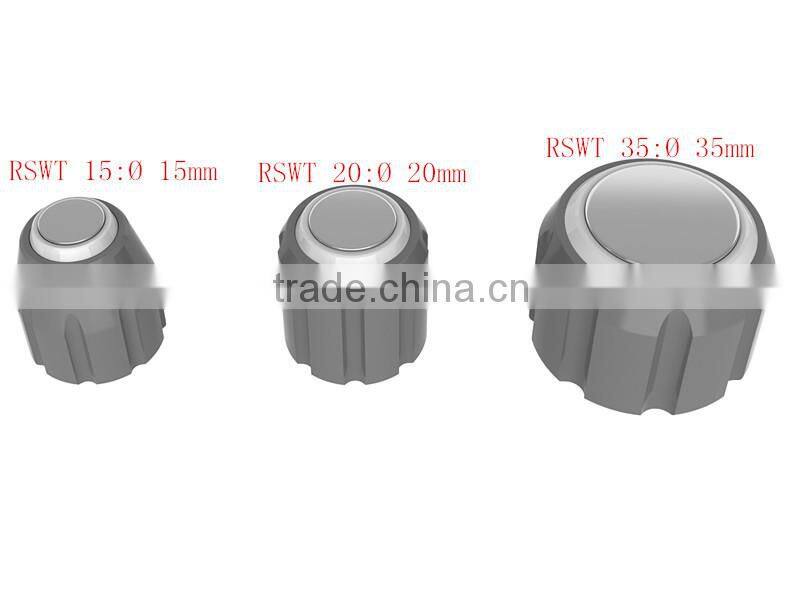

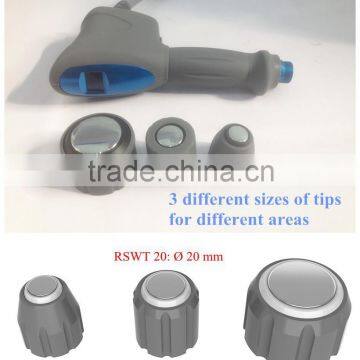

Transmitters For ESWT SD:

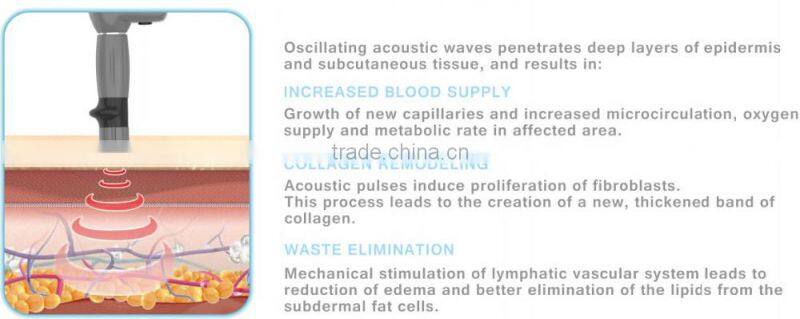

The RSWT handpiece uses acoustic waves to penetrate deep layers of the epidermis, dermis and subcutaneous tissue. Specific transmitters reach different parts of this structure:
RSWT 15: Ø 15 mm, high-efficiency transmitter: for treatment of epidermis, dermis, connective tissue and cellulite treatment.
RSWT 20: Ø 20 mm, radial pressure waves and vibration pulses: for the treatment of trigger points, muscle activation, blood and lymph circulation, for relaxing tissue.
RSWT 35: Ø 35 mm, radial pressure waves and vibration pulses: muscle and connective tissue activation, large back muscles, skin tightening, muscle smoothing, myofascial trigger point therapy, repair of fibrotic changes.

Coupling(PPC Cream)For ESWT SD Treatment:

Treatment efficacy is conditional upon good coupling! Always apply a sufficient amount of gel to ensure optimal shock transmission into the tissue. Make sure that the entire surface of the transmitter is in contact with the patient’s skin. Hold the handpiece in such a way that it is positioned at right angles to the skin surface.

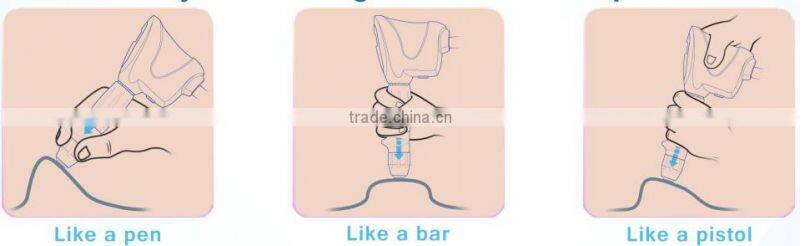

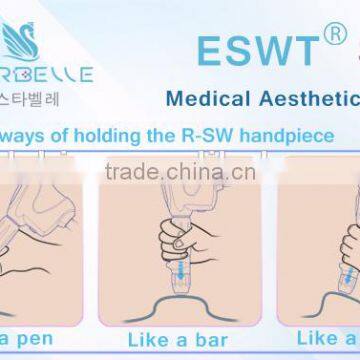

Different ways of holding the RSWT handpiece:

ESWT SD Application energy:

Generally speaking, one has to bear in mind that shock wave therapy is experienced differently from patient to patient. Some people find it rather pleasant, whereas others may feel slight pain.
RSWT application energy has Fine-Tune Output (0.1 Bar), which makes the therapy as pleasant as possible for patients:
Begin with an initial energy level of approx. 1.5 – 2 bar. Energies up to 3 bar will generally be sufficient.
When the patient reports abatement of pain, you can gradually increase the energy level with the arrows.
Select the application energy according to the patient’s sensitivity to pain (bio-feedback).
During the entire duration of the therapy session, a constant dialogue with the patient is required to ensure precise application energy.

Treatment is not permitted in the following cases:

• Coagulation disorders (haemophilia)
• Use of anticoagulants, especially Marcumar
• Thrombosis
• Tumour diseases, carcinoma patients
• Pregnancy
• Children in growth (growth plates)
• Cortisone therapy up to 6 weeks before first shock wave treatment

Generally speaking, sound waves must not be applied to target areas located above air filled tissue (lungs), large nerves, vessels, the spinal column or head.


Treatment may cause the following side effects:

• Swelling, reddening, haematomas
• Petechiae
• Pain
• Skin lesions after previous cortisone therapy

These side effects should be avoided by using low energy levels and continuous movement with middle pressure of the handpiece on the skin. Bear in mind that a low shock wave dose has a beneficial effect on biological systems, whereas a high dose may cause damage.
Side effects generally abate after 2 to 5 days. Make sure that the above side effects have disappeared before starting the next therapy session.

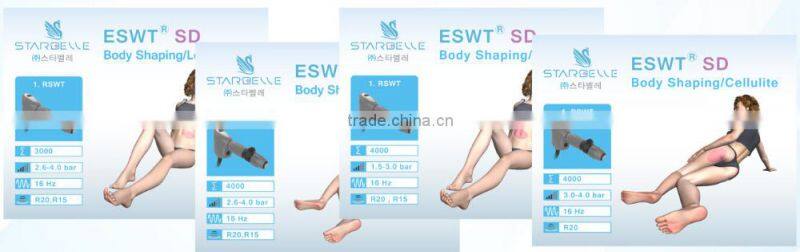

Protocols For Body Care:

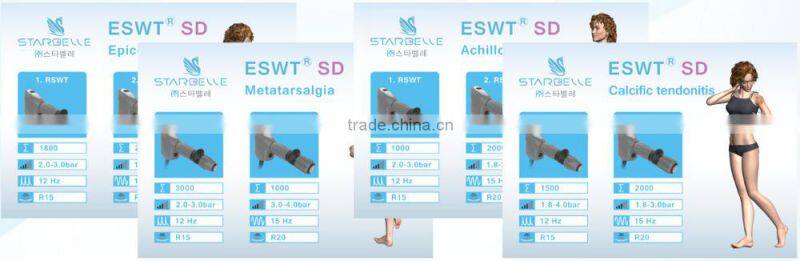

Protocols For Health Care:

Two Pieces of Touch Screens, 5.6 and 3.5

STARBELLE
We are a company founded in strong pillars: science, technology, commitment with our clients and constant innovation. Since 2008, we produce aesthetic equipments of high-quality and performance levels with elegant designs.
