Specifications
Photon Light & RF Skin Rejuvenation SystemFace lifting, Skin Tightening
1MHz multi-polar RF body shaping
Radio Frequency

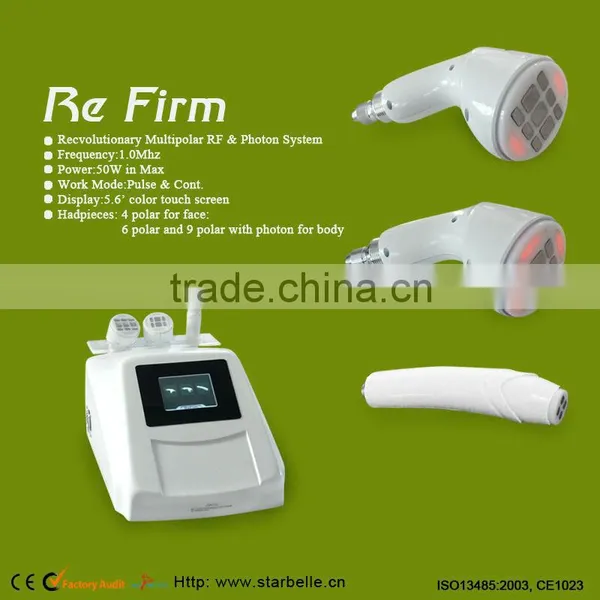

Photon Light & RF Skin Rejuvenation System
Radio Frequency
Revolutionary Focus Fractional RF System
Re tone Face for skin tightening & facial rejuvenation
Re shape Body for cellulite treatment & body contouring
Combine with Red Photon Dynamic to optimize the results
- Focus Fractional RF Technology
Focus Fractional RF is the 3rd generation RF technology. It uses three or more poles/electrodes to deliver the RF energy under the skin. The energy is controlled and limited to the treatment area.
The key advantages are that the three or more poles/electrodes focus the energy in the center between the three or more poles/electrodes.
This achieves two key advantages:
1. High treatment efficacy that is due to highly focused electrical energy that requires much less total energy and results in no pain during treatment, attaining immediate results and an overall shorter treatment course.
2. The unique Fractional configuration can achieve variable depths of penetration, thereby resulting in simultaneous treatment of deep and superficial skin layers. This is important to achieve uniform multi-layer skin heating.
- Skin Tightening & Skin Lifting & Facial Rejuvenation Treatment
1. As our skin matures and is continuously subjected to environmental effects, its connective tissue begins to break down, causing wrinkles and other signs of aging develop.
2. The Focus Fractional RF energy penetrates the skin layers to selectively heat the skin tissue and the extra cellular matrix where the collagen fibers are embedded. The local heating causes an immediate contraction of the collagen fibers, and at the same time increases the metabolism of the fibroblasts thereby accelerating the production of new collagen and elastin fibers.
3. The contraction of collagen fibers and the regeneration of the collagen and elastin deposits, tighten the skin layers creating smoother, healthier and younger looking skin.
- Body Contouring & Body Slimming& Cellulite Fat Reduction Treatment
1. Cellulite condition: Accumulation of a large number of enlarged fat cells in the hypodermis.
2. The accumulated fat presses the skin creating the cottage cheese skin effect.
3.Focus Fractional RF technology selectively increases the temperature of fat cells doing so simultaneously in deep and superficial layers of fat. This increases metabolism and release of liquid fat from the fat cells.
4. Normal cells can support 60C, but other cells including tumor cells or fat cells burn or come to apoptosis on 55C
5. Fat starts to be melted at 41C, and contains numerous veino-lymphatic vessels which allow a strong electromagnetic field. Moreover, high reflection in the frontier of fat layer and muscle layer leads easily the diathermy in the fat.
6. After treatment and release of liquid fat, the fat cells shrink in size and skin is restored closer to original form, reducing or eliminating the cellulite appearance.
Technical Specification | |
Application |
Radio frequency high frequency wave generator(fractional RF) |
RF applicator |
One applicator with 4 pixel for face(pixel: 0.7x0.7CMx4) One applicator with LED and 6 pixel for body (pixel: 0.7x1.5CMx4, 1.5x1.5CMx2) One applicator with LED and 9 pixel for body (pixel: 1.5x1.5CMx3, 0.7x1.5CMx6) |
Applicator material |
Stainless steel |
Work Frequency |
1.0Mhz |
Absorbed Power Max |
50W |
Output Power |
45W |
Power Supply |
110V-120V/220V-240V, 50/60Hz |
Fuse |
2 fuses 5x20 – 250V – 5A F |
Max actual power noise |
3W |
Elastic Working pressure |
0.6 Kpa/cmq per 40x10 E3 cycles/sec. |
Electronic control system |
Retroaction controls of working parameters, quickness of pressure-acoustic propagation, stable frequency, temperature and deviation from the point of maximum output |
Treatment Time |
From 5 to 30 minutes |
Programs |
Personalized regulations |
Parameters Setting |
RF type emission, time, power |
Safety Class |
CE |
Commands |
Selection through touch-buttons |
Visualization |
Graphic Display 5.6’’ touch sccreen |
Operating Temperature |
From 10 to 35°C |
Operation Relative Humidity |
From 30 to 75% |
Operation pressure |
500 Mbar to 1060 Mbar |
Warranty |
12 months |
Mark |
CE |
