Specifications
Hair RemovalSkin rejuvenation
Removing freckle
removing red capillary
beauty equipment
Brief Introduction( beauty equipment)

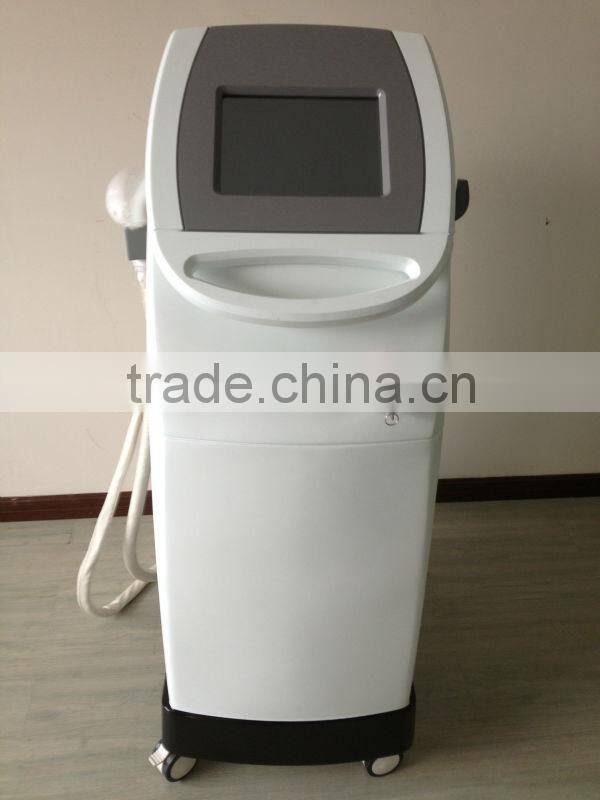

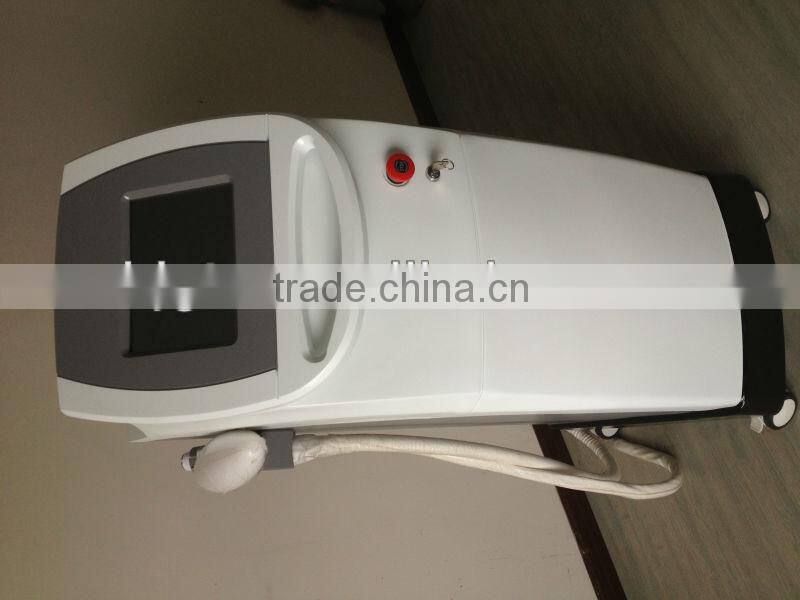

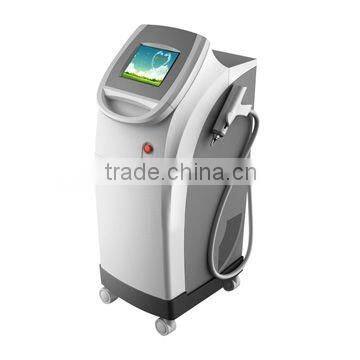

M-2.0 is an all around multi-functional platform, applying the latest core technique (IPL, RF, YAG laser) of the medical cosmetology , it integrated the three systems, an IPL system, a RF system and a YAG laser system all together on one platform. The controlling system of M-2.0 applied the Linux embedded technique, the core board adopted the Mrico2440 board, operation of the system real intelligent. It uses 10.4" TFT true color touch screen. It also sets dual displaying system with a VGA connector.
Principle
E-light: Applying the technique of IPL and Bi-polar Radio Frequency, the equipment acts on the entire skin corium and connective tissue, stimulates the collagens of different depth to realign and grow, then gets treatment effect. Bio-polar RF release energy at the same time, with the selective absorption for the skin to light energy, various pathological tissues of corium and epidermis creates Photothermolysis effect. Since light energy is far below conventional IPL, the pigment tissue and vascular pathological tissue of the corium and epidermis would absorb more energy without injuring the epidermis, and then remove these pathological tissues better and get the effect.
Bipolar RF: The system adopts a capacity coupling electrode to deliver radio waves and create an electric field passing through deliver radio waves and create an electric field passing through the skin layer
and getting into the hypodermia. The electric field exchanges the polarity 5 million times/second under high frequency of 5 MHz. To respond the extreme speed of electrode, particle charging particle of skin have to exchange directions in the same frequency, by which natural electric resistance of the hypodermia moves and creates heat energy. With the feature that derma collagen extends, recombines and reproduces when the temperature reaches to 60°C-70°C, the skin gets tightened and wrinkles get removed.
YAG: Adopting the Q-Switched ND: YAG model, the equipment uses laser to emit high energy instantaneously which smashing the pigment of pathological tissues, namely the laser leading explosive effect: High energy emits instantaneously, making particular wavelength laser penetrating epidermis and getting into pathological pigment tissues in only 6nms. Then pigments expand in top speed and explode. The superficial epidermis would be bounded out of body, other part of the pigments would split into granules which would be engulfed by macrophages, then exclude by the lymphatic system finally. The pigment becomes shallow gradually finally disappear while the surrounding normal skin tissues keep sound as they do not absorb particular wavelength laser.
Application Range
1. Hair Removal: armpit hair, hairline, beard, whiskers, lip hair, body hair, bikini hair or any other unwanted hair.
2. Skin rejuvenation: Whole body lightening and photo-rejuvenation
3. Removing freckle, Chloasma, age pigment, sunburn, chorioplaque,
4. Removing red capillary, vascular
5. Wrinkle removal: Removing true wrinkle, pseudo-wrinkle
6. Specialized in removing coffee, brown and other colorized tattoos.
7. Effectively remove all kinds of embroider eyebrow, soak lip, eye line, and lip line.
Equipment Consist, Specification, & Accessory List
1. Equipment Consist:
1.1. Mainframe
A. Power supply system
B. Microcomputer system
C. Monitor
D. Cooling System

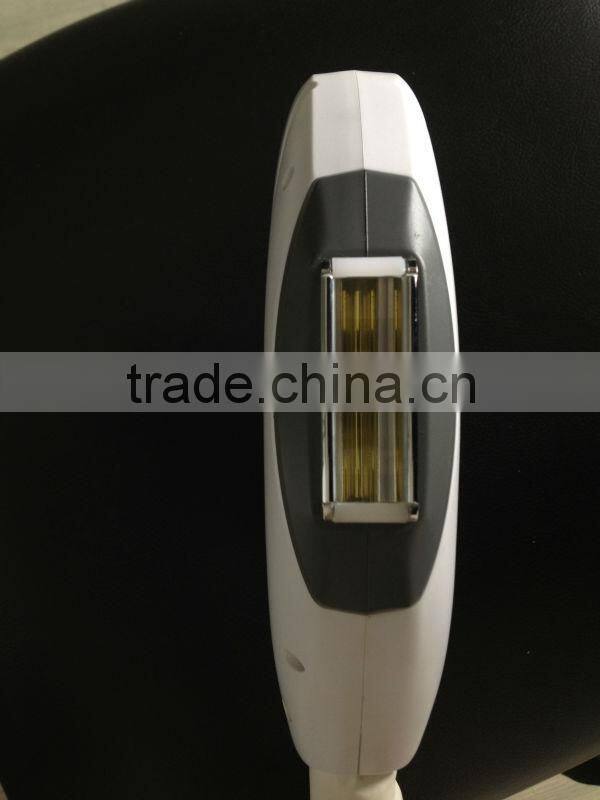

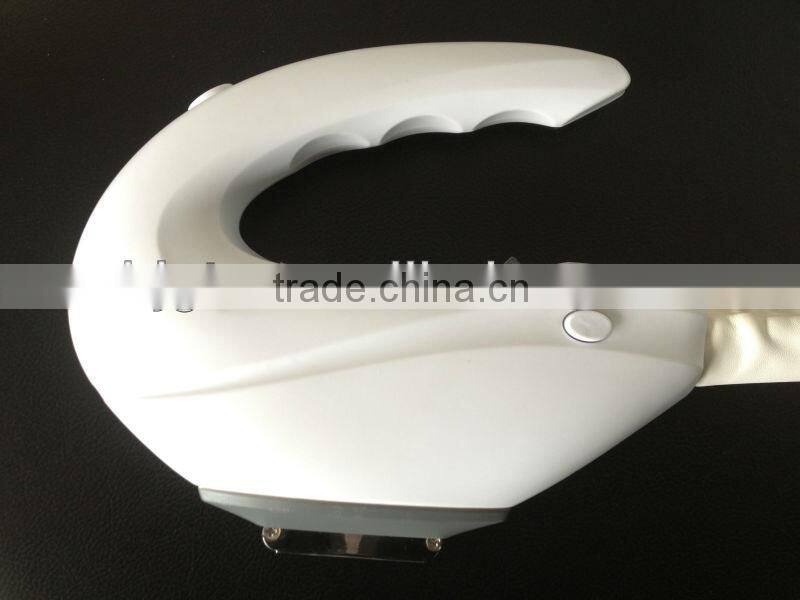

1.2. E-light handpiece
A. Intense pulsed light source, xenon lamp
B. Reflector and filter
C. Sapphire wave guide
1.3 Yag Laser handpiece
1.4 RF handle
2. Technique Specification
IPL Power: 1000W
RF Intense Electric Energy: 5MHz
YAG Energy: 120-1500 mj/CM2
YAG Frequency: 1-6Hz
Light Energy: 15-50J/cm2
Pulse Amount: 1-6
Pulse Width: 1-10 ms
Pulse Delay: 1-100 ms
Repeat frequency: 1-4s
RF working time: 50-2500 ms
Spot size: 15x50mm
Filters: 430nm,530nm,560nm,640nm,690nm
N.W.: 60kg
Dimension: 560mm×580mm×1120mm
Voltage: 230V±10%,110V± 10%, 50~60Hz
