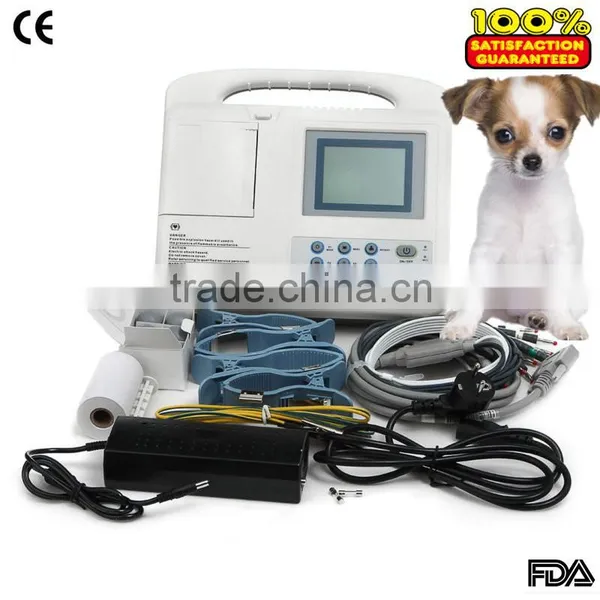

3-channel Vet Electrocardiograph Veterinary ECG EKG Machine
US$ 399 - 599
/ Unit
1 Unit(Min. Order)
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Digital 3-channel Vet Electrocardiograph Veterinary ECG EKG Machine on Sale
-
CE & ISO Approved Digital 3-channel Vet Electrocardiograph Veterinary ECG EKG Machine
-
CE & ISO Approved 8.4-inch 5-Parameter Vet Patient Monitor
-
2015 CE Approved Infusion Pump for Vet Use
-
CE and ISO Approved Vet Infusion Pump
-
High Quality New CE Approved Vet Infusion Pump Top Infusion Pump With Low Price
Product Details
| Place of Origin | Beijing, China | Brand Name | OEM | |
| Model Number | EKG-903V | Properties | Other, ECG |
Product Description
Features:
- Waveforms display and parameters configurable
- High-resolution thermal printer
- Built-in rechargeable lithium battery, AC/DC power supply
- Well designed membrane keyboard
- Data transportation via RS232/Ethernet port to PC
- USB Interface for ECG data transportation
- 7 leads direct print out by external ink-jet printer
- Complete digital filtering, avoiding baseline drift, AC, EMG interference
- Automatic baseline adjustment optimizing printing position
- Copy mode for additional copies of the latest ECG records
- Lead-Off detection and alert
- Selectable report formats: auto, manual, rhythm
- Data can be reviewed and managed by PC (option)
- AHA/IEC five-lead veterinary ECG cable
- Alligator clip and flat clip electrodes
Specification:
Safety standard | IEC class I, type CF |
Input circuit | Floating; Protection against Defibrillator effect |
Lead | Standard 12 Leads, Lead change automatically |
Patient current leakage | <10μA |
Input impedance | ≥10ΜΩ |
Calibrating voltage | 1mV±3% |
A/D conversion | 12 bit |
Frequency response | 0.05Hz~150Hz (IEC) |
Time constant | >3.2seconds |
CMRR | >80dB |
| >100dB (with filter) |
EMG filter | 35Hz (-3dB) / 25Hz (-3dB) |
Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
Recording system | Thermal-array |
| 8 dots/mm ( vertical ) |
| 16 dots/mm ( horizontal, 25mm/sec ) |
Paper speed | 25, 50mm/s±3% |
Recording paper | 50mm,20m, high-speed roll |
Input circuit current | ≤50nA |
Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 12V rechargeable battery |
Skin voltage tolerance | ±300mV |
Noise level | <15uVp-p |
Dimensions | 310×230×70mm |
Dimension of packing | 400×280×160mm |
Weight | 2.75kg |
