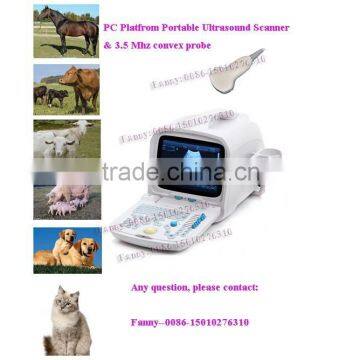

CE Approved Portable Veterinary B Mode Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V2

CE Approved Portable Veterinary B Mode Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V2 thumbnail-1
CE Approved Portable Veterinary B Mode Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V2 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Portable Ultrasonic Diagnostic Devices
Model Number:
RUS-9000V2
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Portable Ultrasonic Diagnostic Devices
Model Number RUS-9000V2
Place of Origin Beijing, China
CE approved Portable Veterinary B mode Ultrasound Scanner with 3.5Mhz multi-frequency convex probe RUS-9000V2


The RUS-9000V2 is a fully digital diagnostic ultrasound system developed specially for the veterinary market. It offers small, large and mixed animal veterinarians worldwide a high quality ultrasound scanner with uncompromising imaging quality and ease of use.
Equipped with full range of measurement packages detailed for small and large animal, RUS-9000V2 enables veterinarians to make fast but accurate diagnosis and record.


Outstanding imaging quality

Crystal clear and high resolution imaging brings accurate diagnosis.

THI(Tissue Harmonic Imaging)for enhanced contrast resolution *(Optional function)
Wide band frequency from 2MHZ to 10MHZ (depending on transducer )for excellent penetration and definition
Leading imaging processing technology for superior imaging optimization

Software function

Exam Modes: Canine, Feline, Equine, Bovine and Ovine
General Measurement: distance circumference, area, (ellipse/trace),volume, angle
Abundant calculation packages for abdominal, rectal, cardiac, reproductive examination


Imaging processing
Pre-processing: 6-segment TGC adjustment
                           Dynamic range
                           frame correlation
                           edge enhancement
     Line density

Post-processing: Gray scale
           Gray reject
Scan angle
left/right reverse
Up/down reverse
Polarity reverse

Function
Zoom:           Local zoom
Panoramic zoom
Image memory:  up to 800 frames
Cine loop:       512 frames
IQS:            image optimize

Software function
General Measurement:   distance circumference, area, trace, ellipse, volume. Etc.
Animal Calculation:      Canine, Feline, Equine, Bovine and Ovine. Etc.


Peripheral Ports:
USB
VGA
RS-232
Remote
Video output

Others
Net Weight:  9.5 kg
Power supply: 100~240 VAC, 50HZ/60HZ
Dimensions: 522mmX365mmX 420mm

Standard Configuration
Main unit
10 inch non-interfaced monitor
Two transducer connectors
512 frames Cine loop
Electronic high frequency convex transducer (60R Central freq: 3.5 MHZ)

Options
Electronic rectal linear transducer (50L70H Centralfreq: 5.0 MHZ)
Electronic micro-convex transducer ( (60C20H Central freq: 6.0 MHZ )
Electronic micro-convex transducer (32C20H Centralfreq: 3.2 MHZ)
Electronic endocavity micro-convex transducer (65C13H Centralfreq: 6.5 MHZ)
