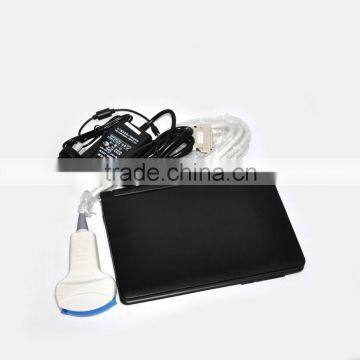

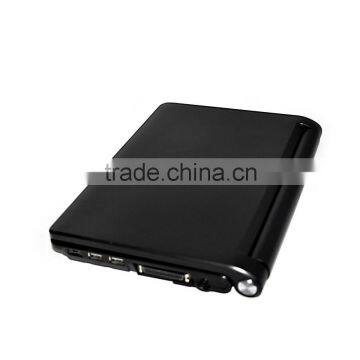

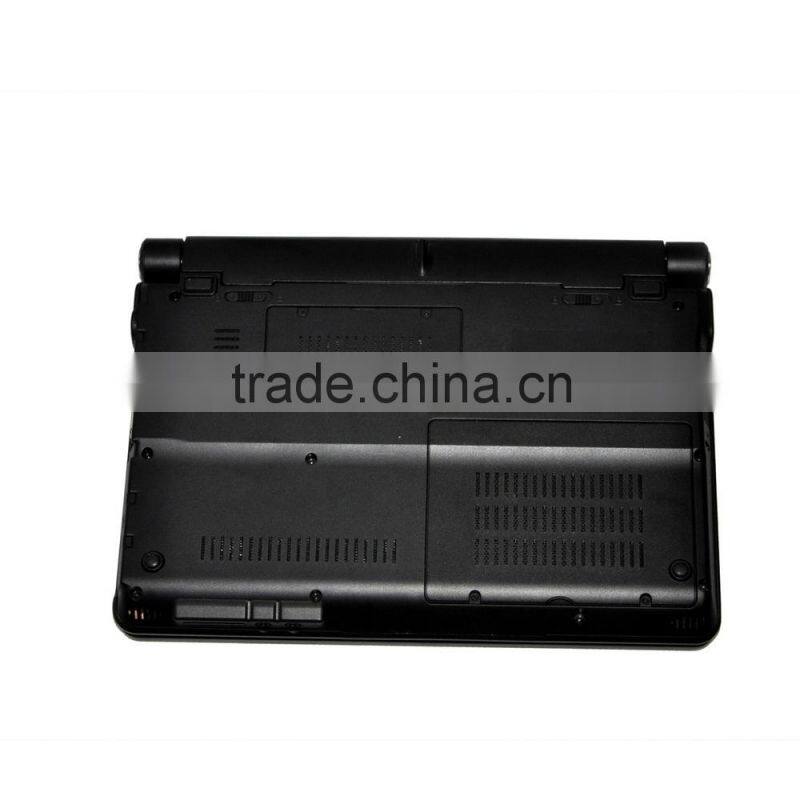

CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V

CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V thumbnail-1
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V thumbnail-2
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V thumbnail-3
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V thumbnail-4
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V photo-1
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V photo-2
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V photo-3
CE Approved Laptop Veterinary Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000V photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
RUS-9000V
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number RUS-9000V

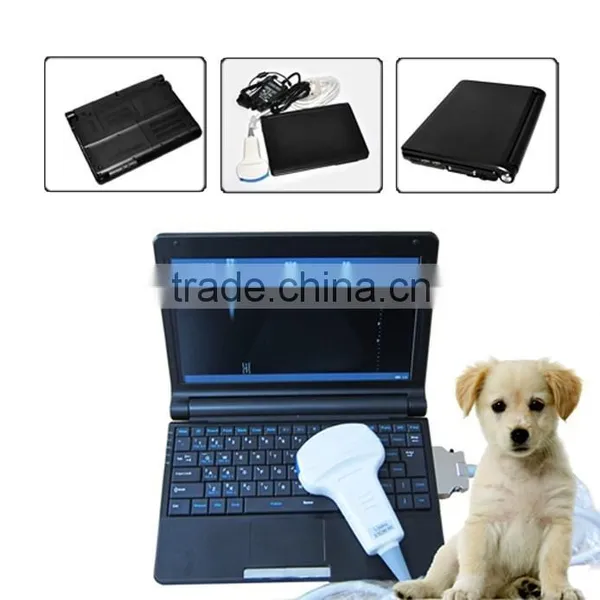

This laptop versatile convex ultrasound system is ideal for mixed practice. It is designed for bedside use and emergency scanning (triage ultrasound) either on site or in a rescue situation. RUS-9000V, weight only 1.5kg, is distinguishable by its bright and clear image quality. The probes offer a wide range of diagnostic applications. This scanner is a cost effective solution for family doctors, veterinary scanning. The complete software package, the multi-step zoom, and the high product versatility are available in it.

Advanced digital imaging technology
DBF: Digital Beam Forming technology
DFS: Dynamic Frequency Scanning technology
DRF: Dynamic Receiving Focusing technology
RDA: Real-time Dynamic Aperture imaging technology
DRA: Real-time Dynamic Receiving Apodization technology

Specification:
Performance:
Image mode:  B, B+B, 4B, B+M, M
Grey:              256
Display:          10.1-inch high-resolution TFT LCD
Probe frequency:   2.5~10.0 MHz
Probe connector:   1
Lateral resolution:  ≤3 mm (depth ≤80mm)
                               ≤4 mm (80mm≤depth ≤130mm)
longitudinal resolution:  ≤2 mm (depth ≤80mm)
                                       ≤3 mm (80mm≤depth ≤130mm)
Detectable depth: ≥160mm
Blind area:   ≤5mm
Geometrical position distortion: Lateral ≤15
                                              Longitudinal ≤10

Image processing:
Pre-processing:     Continuously variable aperture
                              TGC (Near Middle Far)
                              Dynamic filtering
                              Dynamic Range
                              Edge enhancement
                              Frame correlation
                              Smooth
Post- processing:  Gray map
                              Black/white reverse
                              Left/right reverse
                              Up/down reverse

Function:
Cine loop:     192-frame cine loop memory
Zoom:           X0.8X0.9X1.0X1.1X1.2X1.3X1.4X1.5
                      magnifications in real time
Permanent Storage: 1024
Storage media: massive image-storage capacity
                          USB disk
                          SD card
Front panel control:  Brightness, overall gain of the image
Focusing method:   Automatic multi-stage focusing
OSD (On Screen Display): Date, Time, age, sex, Patient ID and hospital, information, Gain, Focusing, Comments, Scroll, Zoom setting
Measurements: Distance, circumference, area/perimeter, volume, heart rate, pregnant week, fetal weight, etc.
Body-marks:  More than forty different body-markers
Adjustable biopsy guideline:  Guidance for puncture
Sleep mode:  save energy and protect screen and probe
Parameter Preset:  Suitable present for different application (Gynecology, Heart, Abdomen)
Image mode:  B, B+B, 4B, B+M, M

Measurement & Calculations
B mode: Distance, circumference, area, volume
M mode: Distance, velocity, heart rate
Software packages:
Abdomen    (Distance, circumference, area, volume)
GYN/OB     (EDD,GA,BPD,GS,CRL,AD,AC,FL,HC,FTA,APTD,TTD,FW),
Cardiology  (SAm, SL, SAi, SD, DAm, DL, DAi, DD, ESV, EDV, SV, EF)

Others
Peripheral port:  Video output 1
                           USB port 2
                           MiniUSB2.0 port
Power supply: AC 100~240V
                       50Hz/60Hz

Standard Configurations:
Main unit
10.1-inch high-resolution TFT LCD
1 each 3.5MHz R60 convex probe
1 probe connector
192 frames cine-loop
1024 permanent storage
OB report
OB & GYN & Cardiac software
2 USB port & 1 mini2.0USB port
VALENX Li-ion battery



CE approved Laptop Veterinary Ultrasound Scanner with 3.5Mhz multi-frequency convex probe RUS-9000VCE approved Laptop Veterinary Ultrasound Scanner with 3.5Mhz multi-frequency convex probe RUS-9000V

Optional
7.5MHz linear probe
6.5MHz Trans-vaginal probe
5.0MHz Micro-convex probe
