New Veterinary Syringe Pump vet for KVO with injection pump animal

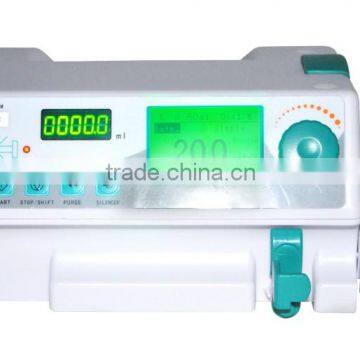

Veterinary Syringe Pump

Features:

1. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting etc, which gains patents

2. More Drug library

3. Compatible with 10ml, 20ml, 30ml, 50ml syringe of any brands

4. Preset Solution Volume to greatly reduce the workload of nurses

5. Three work modes: Rate mode, Time Volume mode, Dosage Weight mode

6. Three levels of occlusion: high, middle and low

7. Purge and Bolus function

8. KVO: KVO (keep-vein-open) automatically opens as infusion is completed. And KVO rate can be modified from 0.1ml/h to 10ml/h

9. Freely Stackable: freely stack one onto another to provide multiple Solutions, which have a wide range of clinical applications.

10. Connecting Port for Nurse-Paging

11. Power Source: AC100-240V, 50/60Hz; Internal Battery, DC12V car charge

12. One-key operation makes setup easy and simple

13. Syringe Plunger Grabble Detector, operable with one hand in a No-Germ Environment

14. Automatically record of Infusion

15. HD LCD Display, high capacity words, friendly user interface, dynamically display working status

16. Syringe brand can be displayed, furthermore, syringe specification can be written into the pump

17. language: English, Poland, Latvian, Russian etc

18.Anti-Bolus etc can be available per customers request

Specification:

Injection Speed:
        - 50(60)ml Syringe  0.1ml/h---1500ml/h (0.1ml/h step)
        - 30ml Syringe  0.1ml/h---900ml/h (0.1ml/h step)
        - 20ml Syringe  0.1ml/h---600ml/h (0.1ml/h step)
        - 10mlsyringe  0.1ml/h---300ml/h (0.1ml/h step)
Rate  Accuracy                 within±3% (after correct calibration)
Mechanical Accuracy       within±2Purge Rate
        - 50(60)ml Syringe: 1500ml/h
        - 30ml Syringe: 900ml/h
        - 20ml Syringe: 600ml/h
       10ml Syringe: 300ml/h                                                                                                                          Bolus Rate
        - 50(60)ml Syringe: 1200ml/h
        - 30ml Syringe: 720ml/h
        - 20ml Syringe: 480ml/h
        - 10ml Syringe: 240ml/h
Volume Limit     0.1ml---999.9ml (0.1ml step)
Total Injection   0.1ml---9999.9ml (0.1ml step)
Occlusion
        - High          800mmHg±200mmHg(106.7kPa±26.7kPa)
        - Medium    500mmHg±100mmHg(66.7kPa±13.3kPa)
        - Low           300mmHg±100mmHg(40.7kPa±13.3kPa)
Alarms         -  injection soon finish  end of injection  occlusion  improperly
                     - installation of syringe  wrong setting  low battery etc
Power source     - 100V---240V  50/60Hz  Internal rechargeable Li battery
                            - volume≥1,600mAh   4 hours internal battery backup; DC 12V
KVO Speed         - 1ml/h, can be modified from 0.1 to 10ml/h
Power Consumption       15VA
Operation Environment
                            a) Temperature  +5---+40degree
                            b) Humidity   20---90%
                            c) Atmospheric Pressure   86.0KPa---106.0KPa
Storage               a)Temperature   -30---+55degree
                            b)Humidity   ≤95%
                            c)Atmospheric Pressure   50.10KPa---106.0KPa
Dimension        280mm(L)x 210mm(W)x 130mm(H)
Weight              2.2KG
Syringe             compatible with any brand
Drug library     more than 1000 drug names
Package           1pc for each Carton, 3.2KG; 35cm (L) × 28cm (W) × 17cm (H)
                         2pc carton,6.6KG; 40cm (L) × 39cm (W) × 32cm (H)
                         3pc carton, 10KG; 59cm (L) × 39cm (W) × 32cm (H)
