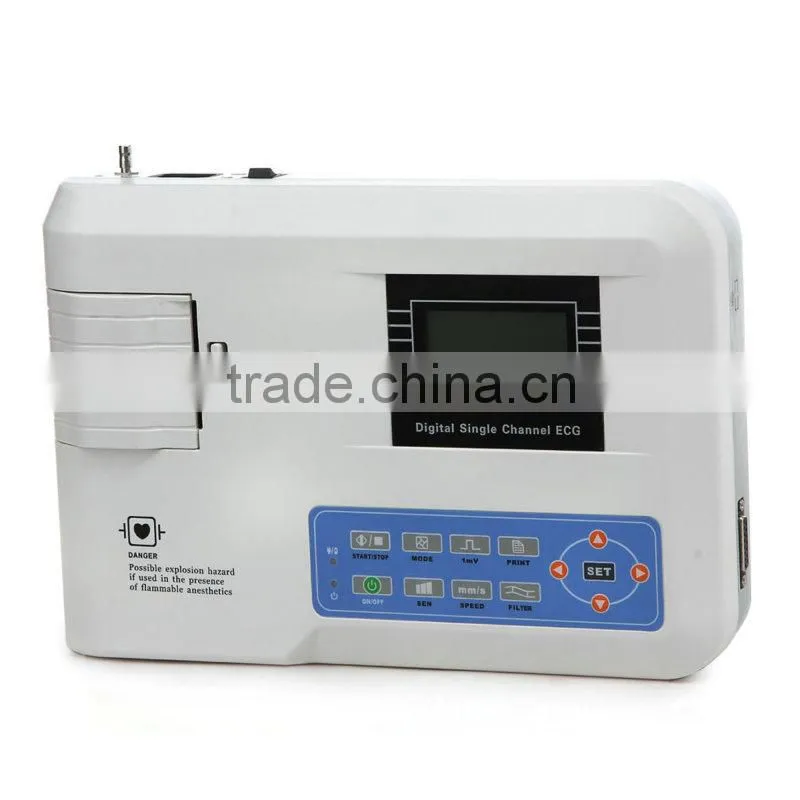

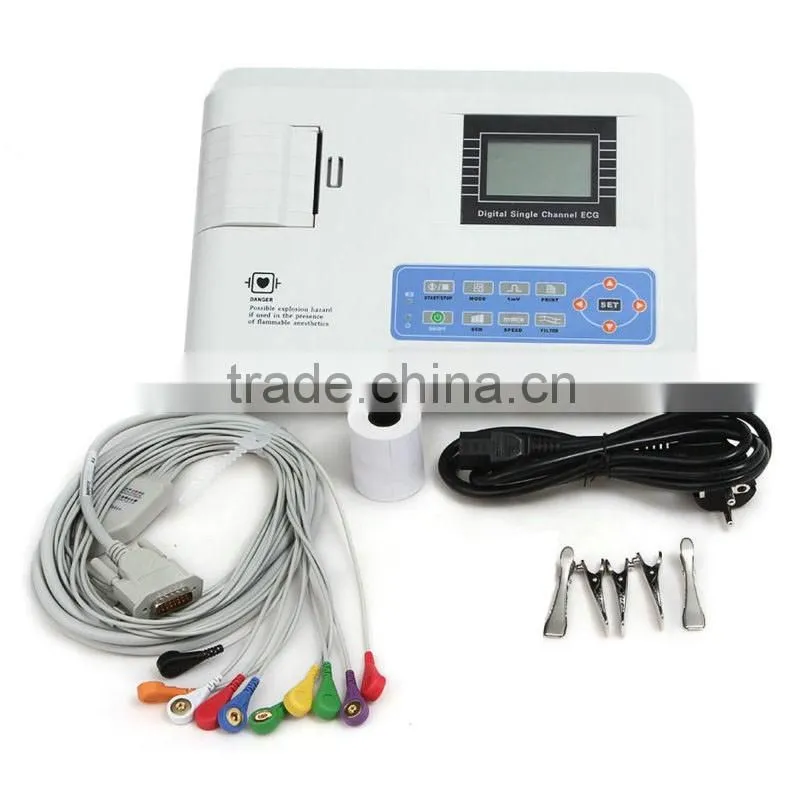

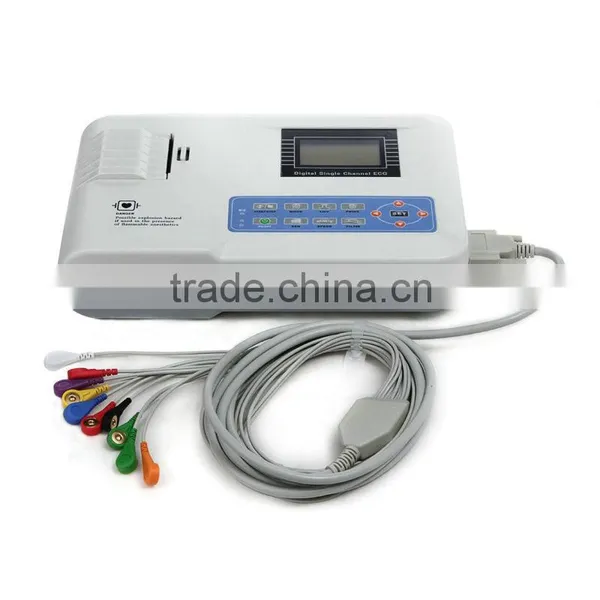

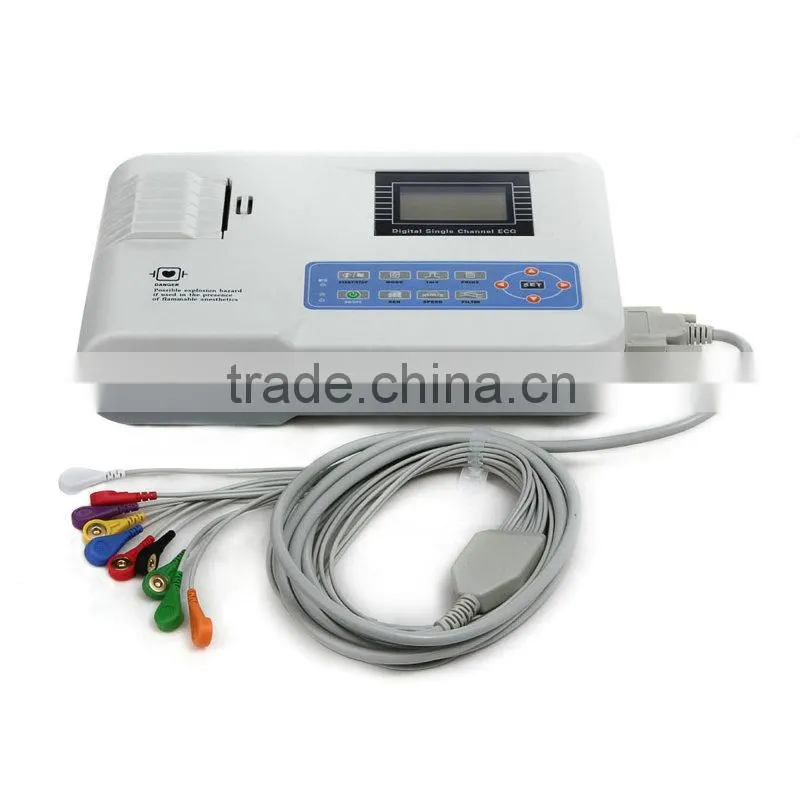

Portable Digital Veterinary 1-channel Electrocardiograph ECG Machine EKG
Features:

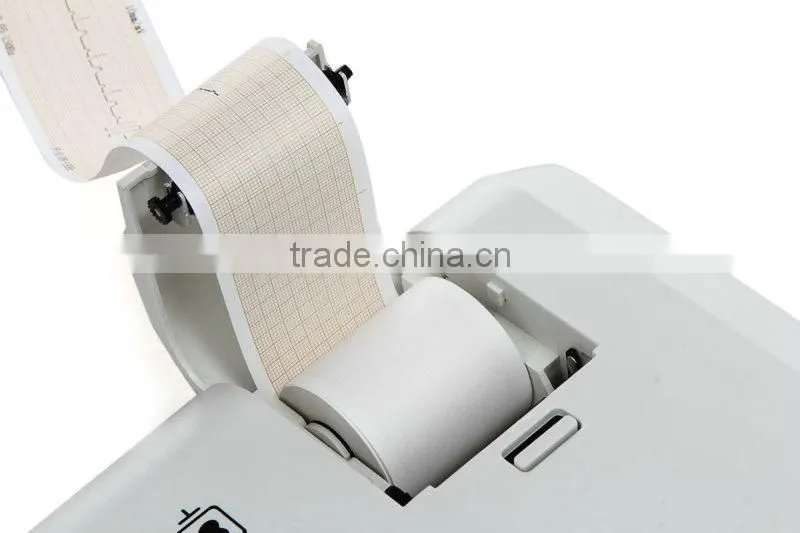

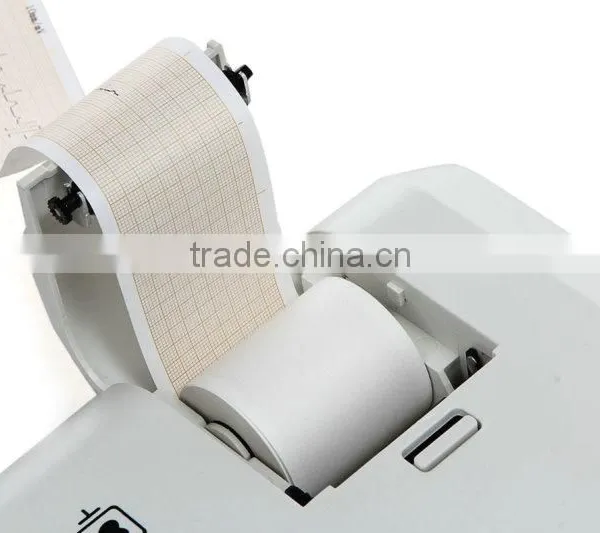

High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform

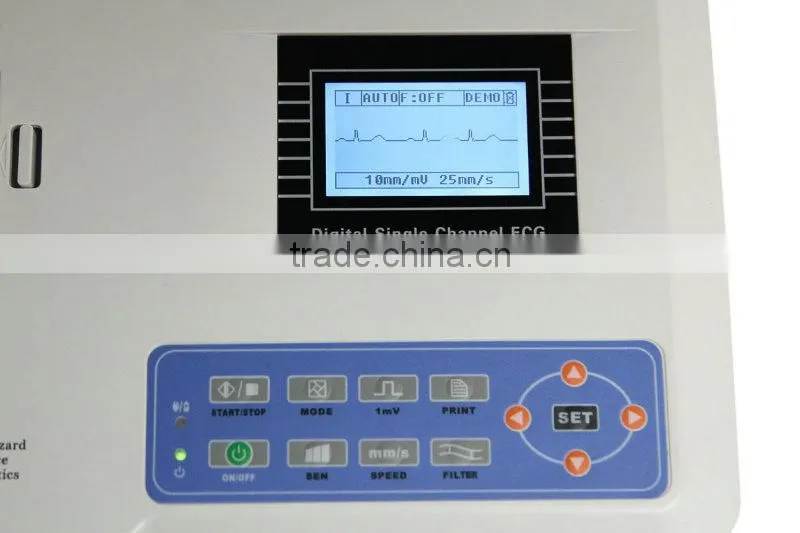

One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR | >80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
