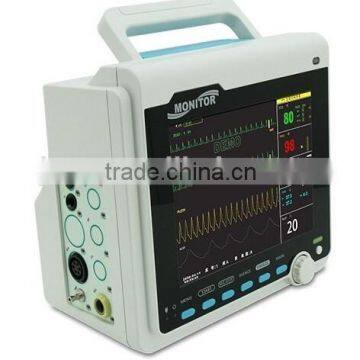

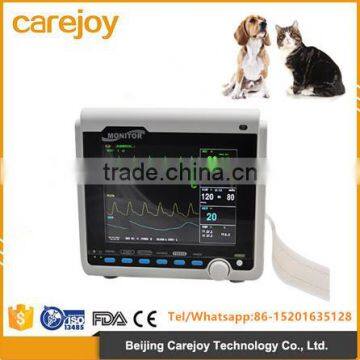

Vet Patient Monitor Vital Sign Monitor for Veterinary Use

Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-1
Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-2
Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-3
Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-4
Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-5
Vet Patient Monitor Vital Sign Monitor for Veterinary Use thumbnail-6
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-1
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-2
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-3
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-4
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-5
Vet Patient Monitor Vital Sign Monitor for Veterinary Use photo-6
US$ 499 - 599 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Brandnew
Place of Origin:
Beijing, China
Model Number:
RPM-9000V2
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Brandnew
Place of Origin Beijing, China
Model Number RPM-9000V2





 Hot Selling Computer style Portable 8.4 inch Patient Monitor for Vet Use



Product Description



Features:

  • 8.4” color TFT display
  • Unique digital SPO technology with excellent measurement and interference-free
  • Audible and visual alarms with adjustable alarm range
  • Anti electrosurgical interference and defibrillation
  • Can be connected with LAN to work with central monitoring system
  • Powerful data management and storage capacity
  • Suitable for vet use

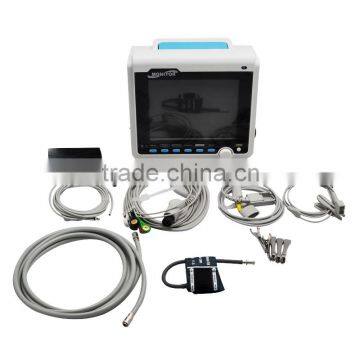

Standard configuration:

  • ECG, NIBP, SPO2, RESP, TEMP, PR, Built-in rechargeable battery

Optional:

  • 2-IBP, ETCO2, Thermal printer



Technical Specifications:

ECG:

  • Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
  • Lead selection: I, II, III, avR, avL, avF, V
  • Waveform: 2 ch
  • Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
  • HR and Alarm Range: Adult: 15 ~ 300 bpm Neo/Ped: 15 ~ 350 bpm Accuracy: ±1% or ±1bpm, which great Resolution: 1 bpm Sensitivity: >200uV P-P
  • Differential Input Impedance: >5MΩ
  • CMRR: Monitor: >105dB Operation: >105dB Diagnosis: >85dB
  • Electrode offset potential: 300mV
  • Leakage Current: <10uA
  • Baseline Recovery: <3s after Defi.
  • ECG Signal Range: 8mV(Vp-p)
  • Calibration Signal: 1mV (Vp-p), 5% Accuracy
  • ST Segment measure and alarm: -2.0 ~ +2.0 mV

NIBP:

  • Method: Oscillometry
  • Mode: Manual, Auto, STAT
  • Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90Min
  • Measuring Period in STAT Mode: 5 Min
  • Pulse Rate Range: 40 ~ 240 bpm
  • Alarm Type: SYS, DIA, MEAN
  • Measuring and alarm Range Adult Mode: SYS: 40 ~ 270 mmHg DIA: 10 ~ 215 mmHg MEAN: 20 ~ 235 mmHg Pediatric Mode SYS: 40 ~ 200 mmHg DIA: 10 ~ 150 mmHg MEAN: 20 ~ 165 mmHg Neonatal Mode SYS: 40 ~ 135 mmHg DIA: 10 ~ 100 mmHg MEAN: 20 ~ 110 mmHg Resolution: 1mmHg
  • Over-pressure protection: YES

SPO2:

  • Measuring Range: 0 ~ 100%
  • Alarm Range: 0 ~ 100%
  • Resolution: 1%
  • Accuracy: 70% ~ 100%: 2 % 0% ~ 69%: unspecified
  • Actualization interval: About 1Sec.
  • Alarm Delay: 10 Sec.
  • Pulse Rate Measuring and Alarm Range: 0~254bpm Resolution: 1bpm Accuracy: 2bpm Alarm Delay: 10 Sec.



Click the link for more styles:

https://jxkh.en.china.cn/productgrouplist-801121734/Patient_monitor.html

Contact Information

Vet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary useVet Patient Monitor vital sign monitor for veterinary use



Company Information

Vet Patient Monitor vital sign monitor for veterinary use

Vet Patient Monitor vital sign monitor for veterinary use

Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.
