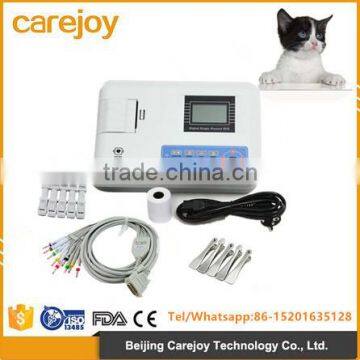

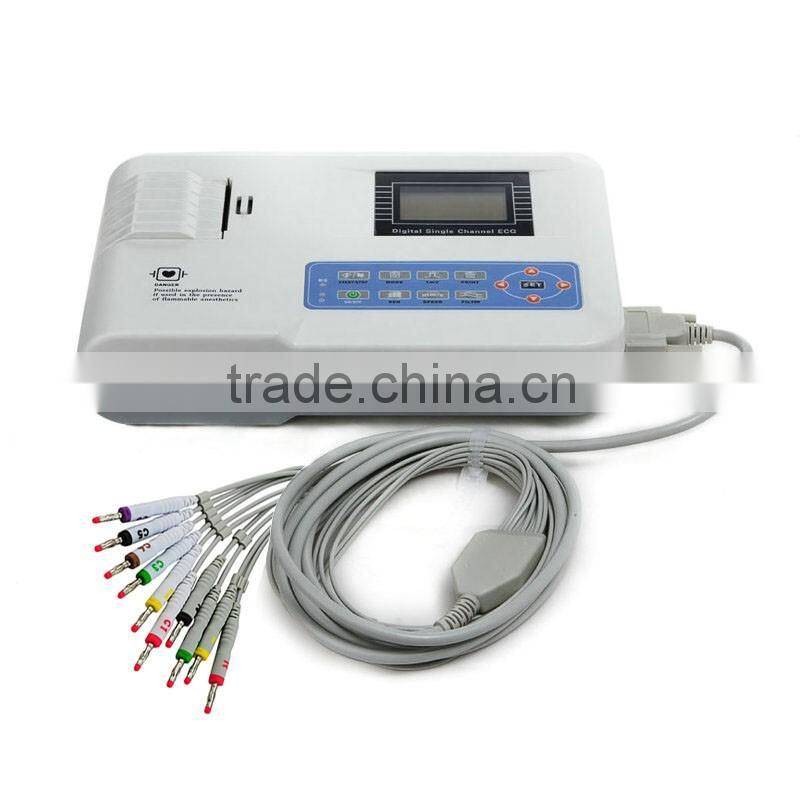

Help CenterDigital 1-channel Vet Electrocardiograph Veterinary ECG EKG Machine
Related Products
-
OEM/ODM Medical Veterinary Devices 10.4 Touch Screen Fully Automatic 3-part Vet Automatic Analyzer HematologyNegotiableMOQ: 1 Set -
Veterinary Ultrasound Equipment Portable Mini Handheld Ultrasound Machine for AnimalsUS$ 500 - 999MOQ: 1 Unit
-
Handheld Veterinary Ultrasound Machine for Dog Cat Bovini Sheep PregnancyUS$ 500 - 999MOQ: 1 Unit
-
CE&ISO Certified Handheld Veterinary Ultrasound Machine Vet With Cheap PriceUS$ 400 - 3,000MOQ: 1 Set
-
Mini Veterinary/vet Ultrasound Machine V8 for AnimalUS$ 400 - 3,000MOQ: 1 Set
Features:
- Waveforms display and parameters configurable
- Built-in high-resolution thermal printer
- Built-in rechargeable lithium battery, AC/DC power supply
- Well designed membrane keyboard
- Input/Output port
- Complete digital filtering, avoiding baseline drift, AC, EMG interference
- Automatic baseline adjustment optimizing printing position
- Auto/manual operation selectable
- Lead-Off detection and alert

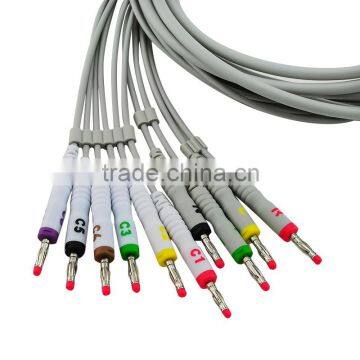

- AHA/IEC five-lead veterinary ECG cable
- Alligator clip and flat clip electrodes
Specification:
Safety standard |
IEC60601-1 class I, type CF |
Input circuit |
Floating; Protection against Defibrillator effect |
Lead |
Standard 12 Leads, Lead change automatically |
Patient current leakage |
<10μA |
Input impedance |
≥10ΜΩ |
Calibrating voltage |
1mV±3% |
A/D conversion |
12 bit |
Frequency response |
0.05Hz~150Hz (IEC) |
Time constant |
>3.2seconds |
CMRR |
>80dB |
|
>100dB (with filter) |
EMG filter |
35Hz (-3dB) / 25Hz (-3dB) |
Sensitivity |
1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
Recording system |
Thermal-array |
|
8 dots/mm ( vertical ) |
|
16 dots/mm ( horizontal, 25mm/sec ) |
Paper speed |
25, 50mm/s±3% |
Recording paper |
50mm,20m, high-speed roll |
Input circuit current |
≤50nA |
Power supply |
AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
Skin voltage tolerance |
±300mV |
Noise level |
<15uVp-p |
Dimensions |
310×230×70mm |
Dimension of packing |
400×280×160mm |
Weight |
2.75kg |
