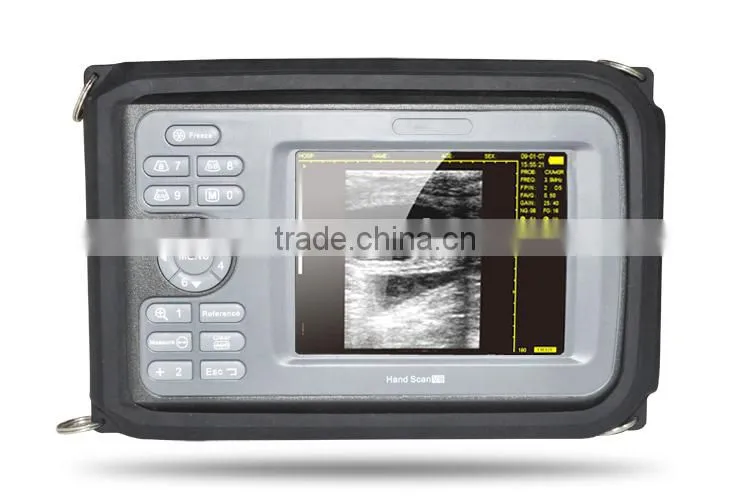

Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8

Product Description

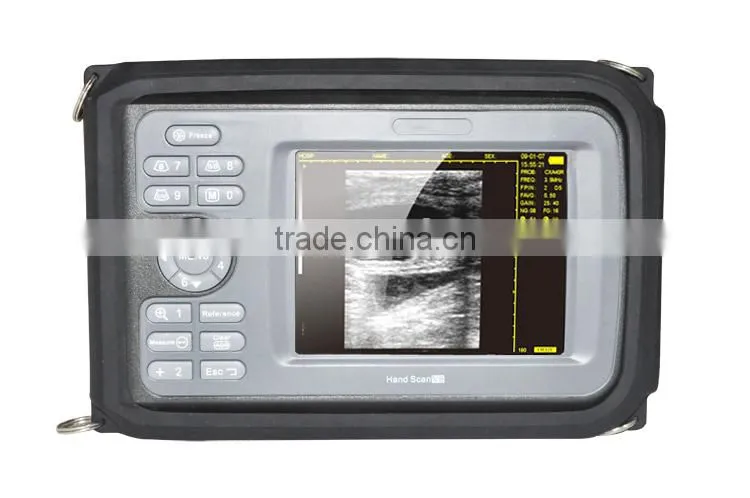

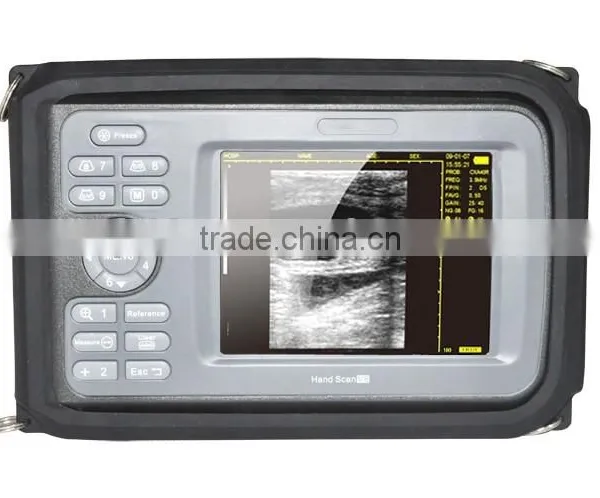

Introduction for the HandScan V8:
HandScan V8 is the latest model by RISINGMED. It is distinguishable by its bright and clear image quality.
The interchangeable probes offer a wide range of diagnostic applications.This equipment is Suitable for family doctors, eterinary scanning.

The complete software and the high product versatility are available in it. which is high resolution linear/convex
ultrasound scanning diagnostic equipment. It adopts microcomputer control and digital scan converter (DSC), digital beamforming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF),

Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Features for Digital PalmSmart Ultrasonic Scanner:
1. 5 inches TFTLCD display and programmable device (FPGA) and surface mounted technology (SMT) make this device compact and light in weight.
2. Battery: AC adapter,and Liion battery. 3 battery charging modes enable more lasting battery.
3. Display modes: B, B+B, B+M, M; Can realize image real time display.
4. Jet molding enclosure with hand-held structure makes it convenient for out diagnoses.
5. The device consists of mainframe, probe and adapter.

Specifications:

Screen Size: 5.5 inch, TFT color LCD
Display Mode: B, B+B, B+M, M, 4B
Gray Shade: 256 levels
Scan Depth: 70~240mm, adjustable
Cine Loop: ≥ 400 frames
Built-in Memory: 64 images
Focus Position: 2 points adjustable
Annotation: date, clock, name, Sex, ID, Age
full screen editor.Battery Working Time: ≥ 3 hrsBattery Charging Time: ≥ 2hr
Net Weight: 600g

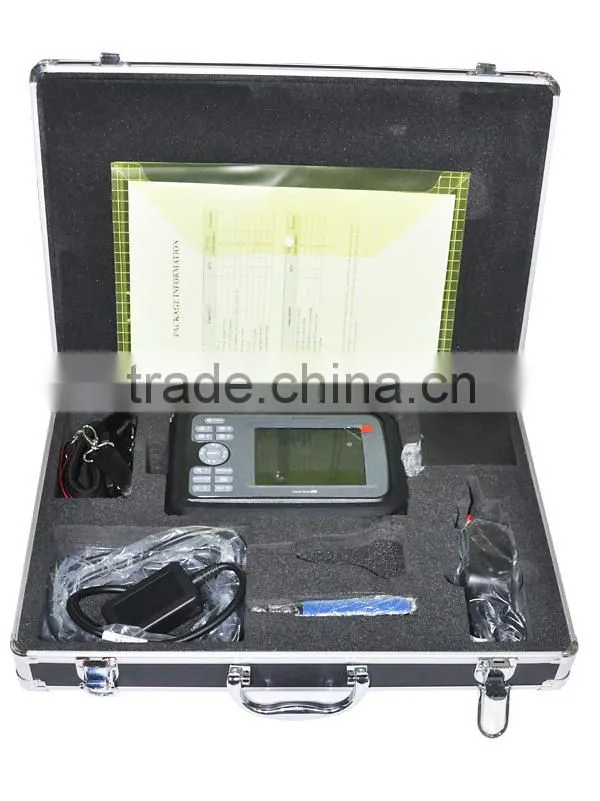

Package: metallic case in a carton box
Image Reservation: up/down, left/right
Image Procession: Coded color, GAMA, HistogramAnd Image Smoothen,
TCG: N.G (near gain) adjustable
 F.G.(far gain) adjustable

         O.G (overall gain) adjustable
Language: English/Chinese switchable
Measurement:: Distance, Circumference, Area,
Volume and Heart RateOB Measurement: Swine -- HL
                                                                  Sheep/Goat -- USD
                                                                  Cat – HD, BD
                                                                  Dog – BD, GSD, CRL, HD, BD

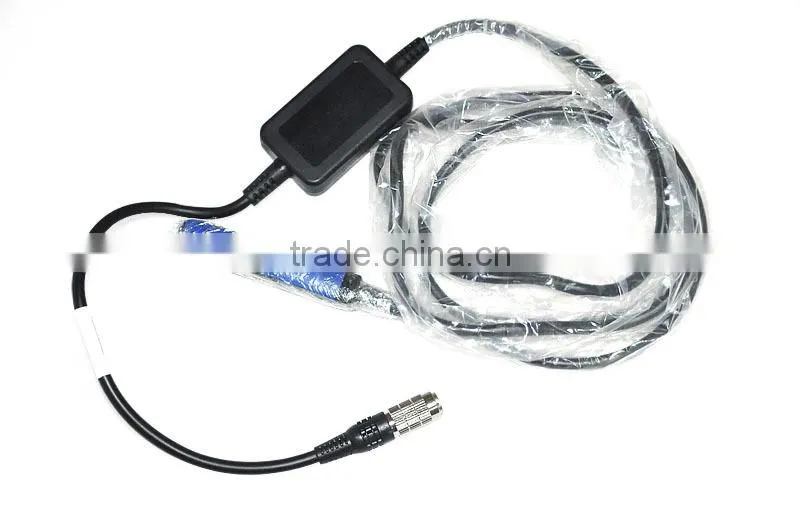

                                                                  AC adapter: 110~240V, 50/60Hz

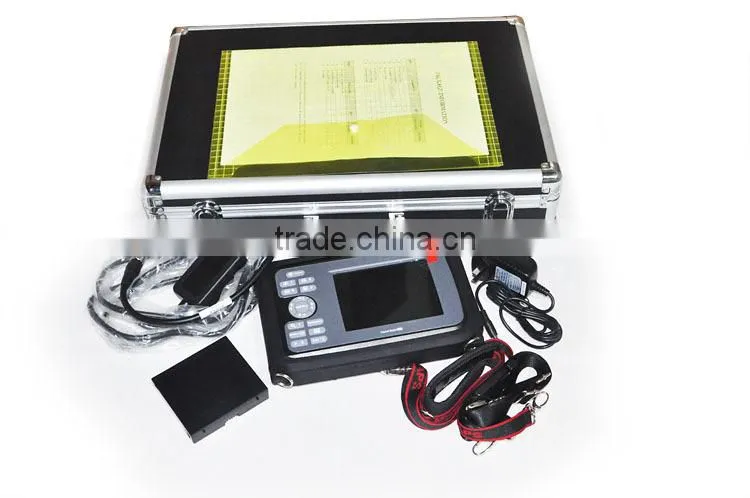

Packing list:
Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8



 Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8Handheld Digital PalmSmart Veterinary/VET Use Ultrasonic Scanner with Convex Probe-V8
