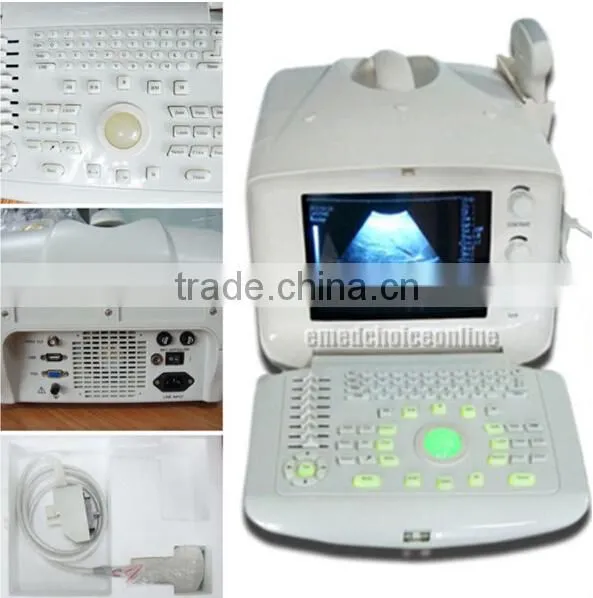

Low Price Portable Ultrasound Scanner 10 inch with Convex probe optional High frequency linear probe RUS-6000A

Ultrasound Scanner

Features:

• Application of FPGA& SMT technology, brief circuits with reliable performance
• Dynamic frequency imaging, multistage focusing, aperture control
• Multi-frequency (4-frequency) & high sensitivity probe contributes to high resolution images
• Applicable to abdominal, obstetrics, gynecological, urological and small parts diagnosis
• Cline-loop & permanent image storage
• 8-segment TGC
• Built-in color coding module & VGA video outlet
• User-friendly with one-touch keyboard & trackball operation
• USB port

Specification:

• Display modes: B, B+B, B+M, M, 4B
• Scanner depth: 230mm
• Gray scale: 256
• Image magnification: x0.8, x1.0, x1.2, x1.5, x2.0
• Cline-loop: maximum 128 frames
• Permanent Image storage: 32 frames
• Image conversion: up/down, left/right, black/white
• Local zoom: 4(can be used at frozen/real-time)
• Frame correlation: selectable 4 levels
• Body marks: 43
• Pseudo color processor: 7 colors
• Video output: PAL-D, VGA
• Monitor: external monitor can be used
• Measurement: distance, circumference, area, heart rate, pregnant week, fetal weight, EDD
• Comments: real-time clock, date, scanning depth, model of probes, parameter of frame correlation, combination of focus, patient’s ID, gender, age
• Power supply: AC220V±22V or AC110±11V, 50Hz±1Hz or 60 Hz±1Hz
• Gross Weight: 12kgs
• Net Weight: 10kgs(including probe)
• Carton Size: 47cm x 39cm x 39cm

Standard:

• 10-inch SVGA high resolution monitor
• 2 probe connector
• 1 USB
• 80 elements R60, 3.5MHz multi-frequency convex probe

Optional:

• High frequency linear probe
• Electronic trans-vaginal probe
• Micro-Convex probe
• Video thermal recorder
