CE/ISO Approved 4D Color Doppler Ultrasound Diagnostic System Machine
Introduction:

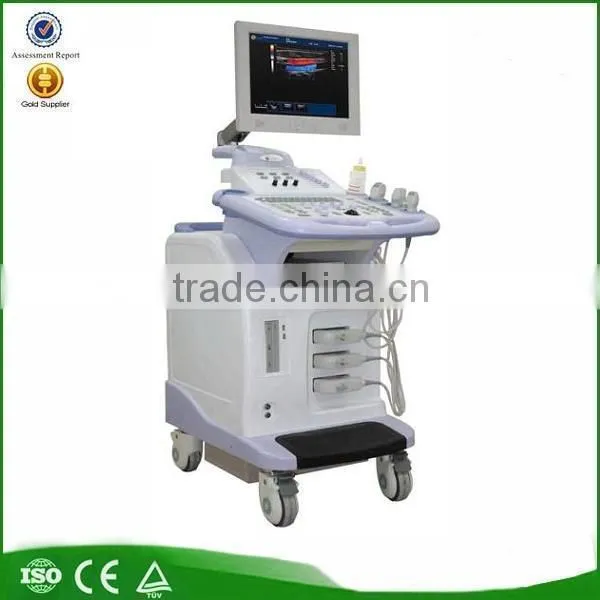

R60 is a trolley color doppler system and it is PC-based Color Doppler system with powerful software and rich accessories.
It takes excellent image quality for multi-application of abdomen, OB/GYN, small parts, urology and cardiology. With the powerful work-flow, R6 helps user record measurements and save images easily and friendly.
Specifications:
Display mode
B&W model: B, 2B, B/M, 4B
Color Doppler mode: CFM, PD, PW
Triplex: Real-time simultaneous 2D, Doppler & CFM
Duplex: Real-time simultaneous 2D&Doppler
Gray scale: 256
Display: 15-inch LCD monitor
Transducer frequency: 2-10 MHz
Digital technology: Dynamic Receiving Focusing (DRF)
Dynamic Frequency Scanning (DFS)
Scanning depth: 240mm
Pre-processing:
8-segment TGC
IP (Image Processing)
Gain (B&W, Color)
PRF
Dynamic range
Image enhancement
High resolution/High frame rate
Acoustic power
Post-processing:
Gray map
Black/white reverse
Left/right reverse
Up/down reverse
Functions
Cine-loop: 256 frame cine loop memory
Storage media: 160G massive image-storage capacity, USB
Zoom: Pan zoom
Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth curve
M model: distance, time, velocity, heart rate
Doppler model: Vs, Vd, RI, PI, SD
Software packages: abdomen, gynecology, obstetrics, cardiology, small parts, urology
Others
Transducer connector: 3 active transducer connector ports
Peripheral ports: video, S-video, VGA, tow USB ports
Power supply: 100-240VAC±10%, 50Hz/60Hz
Standard Configuration:
Main unit with 3 probe connectors + 1PC convex probe + 1 PC Phased Array probe.
15" LCD Monitor.
SRA (Speckle Reduction Algorithm).
Super Image module (THI on convex probe, Trapezoidal imaging, Compound Imaging).
B, 2B, 4B, B/M, B/BC, CFM, PW Mode,
Power Doppler/Directional PD Mode.
Chroma B/PW mode.
320 GB hard disk
4 USB ports.
Extended cardiac software package: include: ECG, Free Steering M Mode, CW, Color M
DICOM 3.0
i-image
Optional Transducers
3.5 MHz convex probe
7.5 MHz liner probe
6.0 MHz transvaginal probe
5.0 MHz pediatric probe
3.0 MHz cardiac probe
4.0 MHz 4D module + 4D software + 4D volume probe
Optional Accessories
SONY B&W UP897MD printer
HP 2025 Pc printer
Biopsy kit: for convex, linear, TV probe
Foot-switch
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
