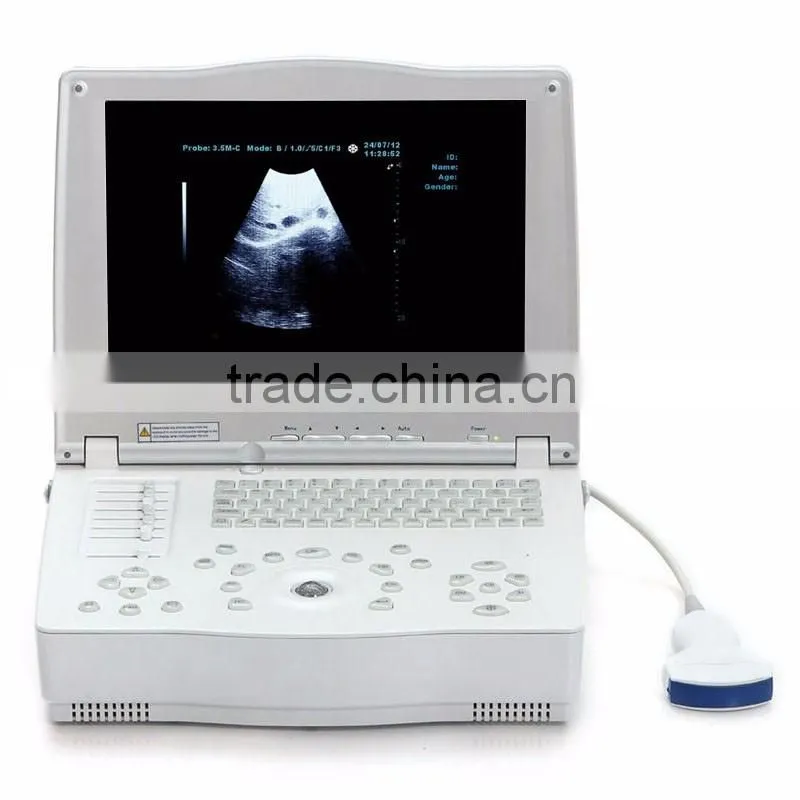

CE&ISO13485&FDA approved digital portable type 15-inch Laptop Ultrasound Scanner
Specification for for Laptop Ultrasound Scanner:
| Image mode | B, B/B, B+M, M, 4B, 8B |
| Scanning mode | Convex and linear multi-frequency with wide band |
| Element | 80 |
| Multi-frequency probe | 2.5~8.5 MHz |
| Image magnification | ×1.0, ×1.2, ×1.5, ×2.0. |
| Electronic focus | Acoustic lens focus, single focus and multiple focus |
| Max display depth | 220mm |
| Depth enhancement | Yes |
| Local zoom | Yes |
| Frame correlation function | Yes |
| Adjustment total gain and dynamic range | Yes |
| Gray Scale | 256 |
| Display | 15-inch LCD, image valid display is 10.4-inch |
| Gain Control | 6-segment STC segmentation control, full gain control |
| Probe connectors | 1 (standard) |
| Cine Loop | 128 frames |
| Scanning frequency | 2.5~8.5 MHz (depends on probes) |
| Image reverse | Left/right, up/down, positive/negative |
| Comment |
Name, Age, Sex, number of patient recorder, diagnostic date, 24 markers of body location, remarks in full screen |
| Body marks | 18 |
| Gray Scale Conversion | γ rectification |
| Pseudo Color Function | 8 colors |
| Power supply | 110-240V AC, 50Hz±1Hz |
| Power consumption | ≤100VA |
| Dimensions | 380x285x110mm (LxHxM) |
| Net weight | approx. 6.8kg |
Description:
RUS-9000E is a digital laptop type of linear & convex array, multi-purpose portable ultrasonic diagnosis instrument. It adopts advanced imaging process technologies, provides high resolution and high definition images. RUS-9000E is electronic scanning, multi-stage dynamic focusing, variable aperture, digital scanning and switching techniques are ideal suitable for applications in superficial organs, abdominal, cardiology, gynecology, obstetrics and urology for hospitals and clinics.
Features for Laptop Ultrasound Scanner:
- 15-inch LCD (abbr. Liquid Crystal Display, effective display 10-inch)
- Multi-frequency probes
- Real-time zooming
- 128-frame cineloop
- Multi-segment TGC adjustment
Imaging Processing for Laptop Ultrasound Scanner:
- Part zoom in real time, gray curve control, STC curve, edge enhancement, dynamic range, frame correlation, 256 gray scale, image reverse function
- Pre-processing: multi-segments TGC adjustment, frame correlation, image direction
- Post-processing: left/right, up/down, positive/negative
- Zoom: magnification (4 steps)
- Cine loop: 128 frames
Software Functions:
- General measurement: distance, circumference, area, oval, trace, volume, HR, gestational week
- Obstetric measurement soft: GS, CRL, BPD, AC, HC, FL, AFI, EDD, and calculating fetus weight, pregnancy week, expected delivery date, fetal physiological rating according to the previous measurements
Peripheral Ports:
- VGA port
- PAL-D video output
Standard Configuration:
- Main unit
- 15' LCD (abbr. Liquid Crystal Display)
- 128-frame cine loop
- One probe connector, without USB function
Optional:

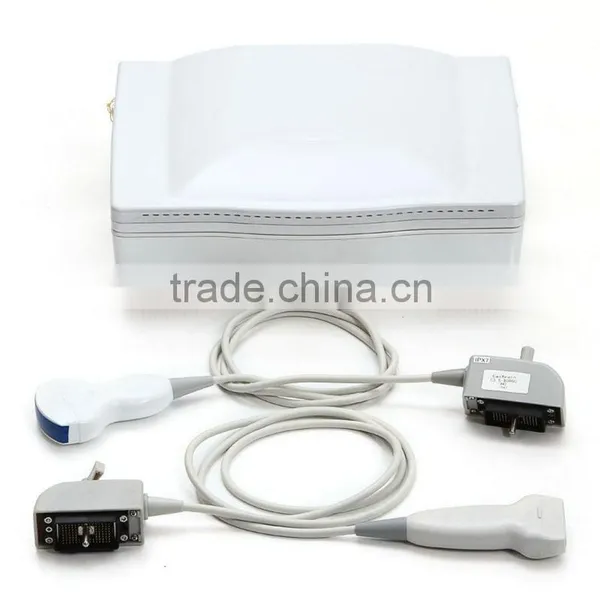

- 3.5MHz electronic convex probe
- 6.5MHz Electronic transvaginal probe
- 7.5MHz High frequency linear probe
- 5.0MHz Micro-convex probe
- Video printer
Main Unit:
- Power cable: 1 each
- Ground Line: 1 each
- Fuse (3A): 2 each
- User Manual in English: 1 each
- Packing list: 1 each
- Optional part: 1 set
Click the picture for more information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
