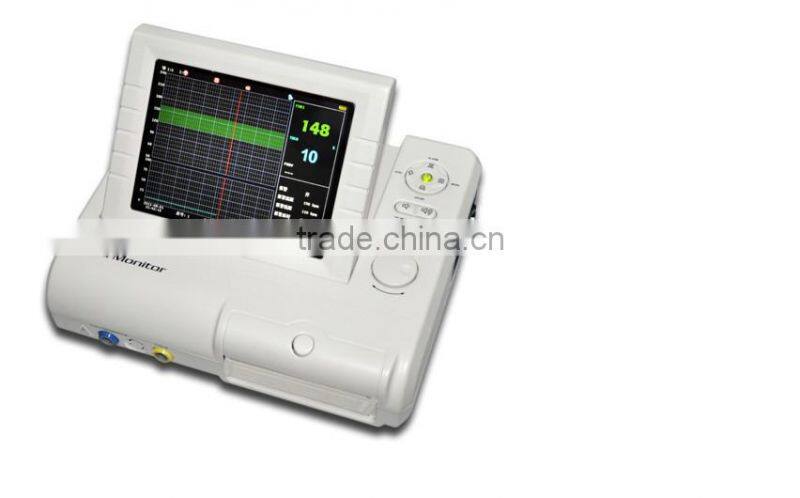

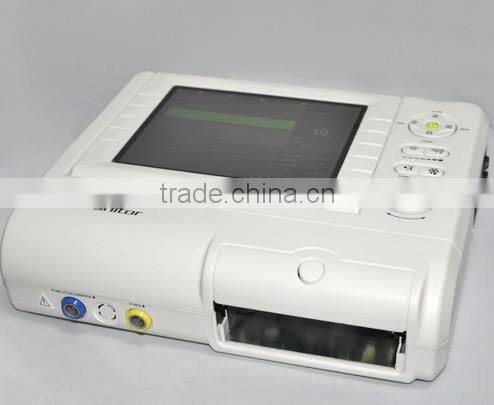

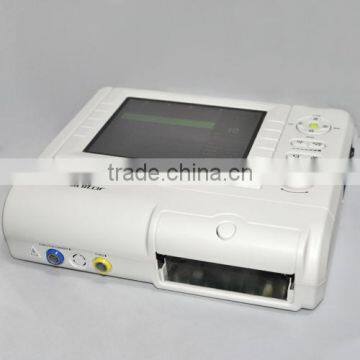

Fetal monitor

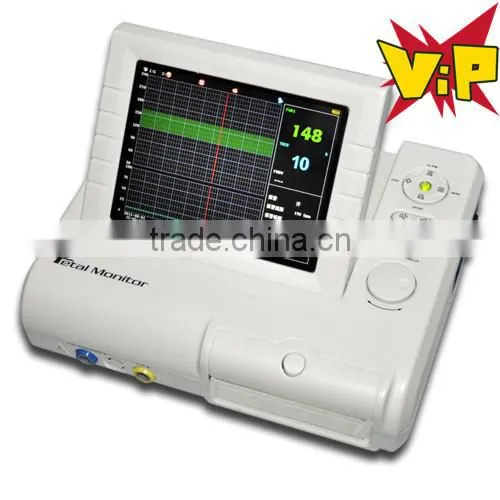

RFM-300A is a lightweight, space-saving fetal monitor, ensure external and internal monitoring parameters. It can be used up to and during the second stage labor. It also can be connected to the obstetrical central station to build central monitoring system.
Features:
- Light weight, space-saving, easy operation
- 8.4-inch screen color LCD display, rotate screen to 60°
- Display of the patient data and curve clearly
- Print paper fetal heart rate 120-160bpm
- Manual records fetal movement
- Audible and visual alarm for high and low fetal heart rate
- Continuous 24-hour real-time monitoring function
- Continuous 12-hour patient curve and data storage and playback
- With picture freeze function
- Single, Twins Monitoring optional
- 9 chip pulse width beam probe
- Extra-long life, high-resolution built-in thermal printer
- Built-in communication port, can be connected with central monitoring system
Technical Specifications:
- Security: IEC 60601-1-4, IEC 60601-1-2
- Anti-shock types: Type I, no internal power supply
- Anti-electric Shock Degree: B

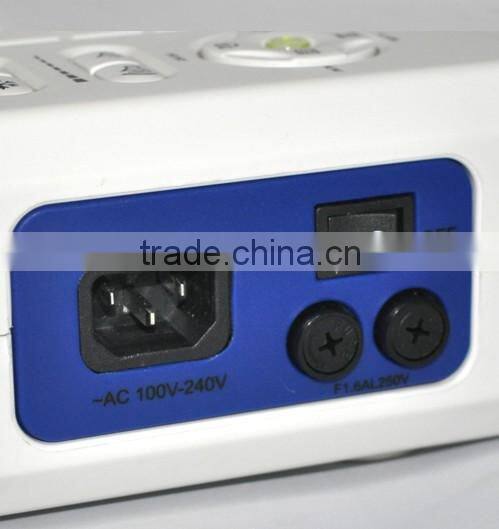

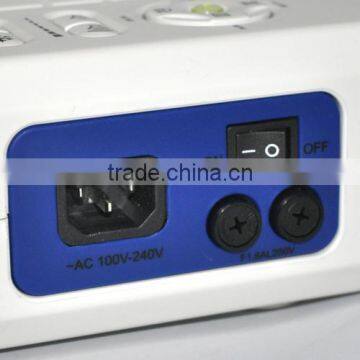

- Power Supply: Working Voltage: AC 100V ~ 240V
- Frequency: 50Hz/60Hz
- Environment:
Transport and storage:
Temperature: -10 °C ~55 °C
Relative Humidity: ≤ 93%
Atmospheric pressure: 70kPa ~ 106kPa
Working environment
Temperature: 5 °C~ 40 °C
Relative Humidity: ≤ 80%
Atmospheric pressure: 70kPa ~ 106kPa - Display:
Dimensions: 8.4" color LCD display, folding 60 degree

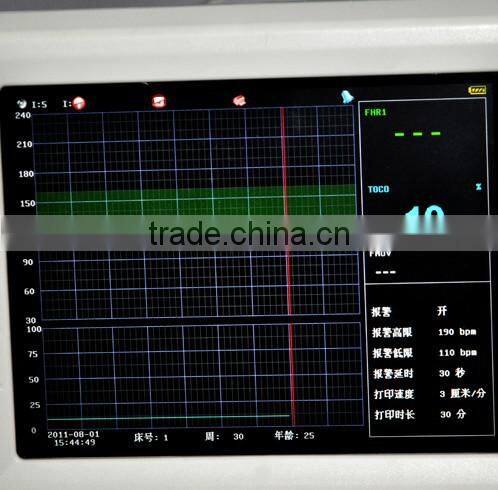

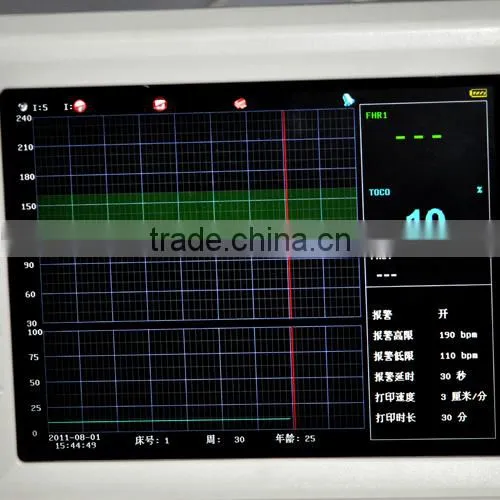

Display Content: bed No. , pregnancy age, age, single/twins type, paper speed, date, time, volume, alarm status, transducer connection status, recorder status, FHR data and wave, Contraction data and wave, Fetal move times and mark etc. - Print:
Record Paper two-double type Z
Print Width: 112mm
Valid Print Width: 104mm

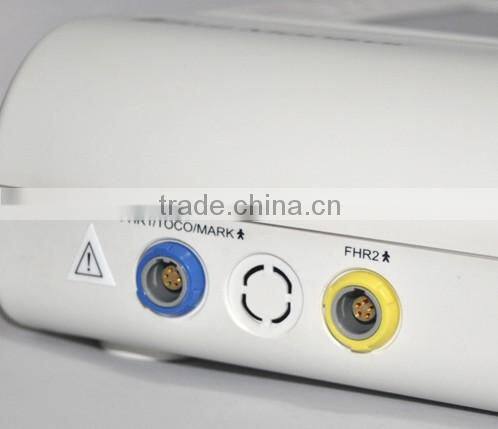

Signal Interface: RJ 45 - Ultrasound probe:
Nominal Frequency: 1.0MHz
Work Frequency: 1.0MHz±10%
FHR Rang: 65BPM~210BPM,Allow error: within ±2bpm
Resolution: 1BPM
Accuracy : ±2% - TOCO:
TOCO range: 0~100%
Resolution: 1 - Fetal Marking: For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section
- FHR Alarm: Alarm for high and low FHR, which exceeds appointed limit

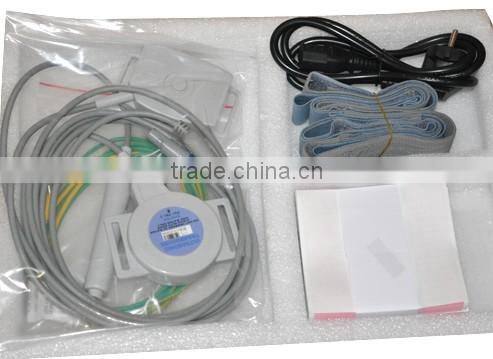

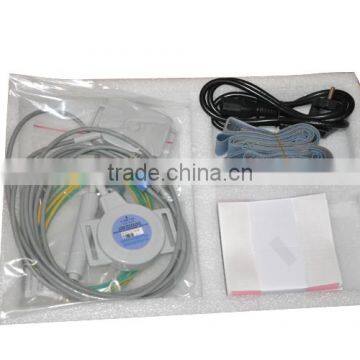

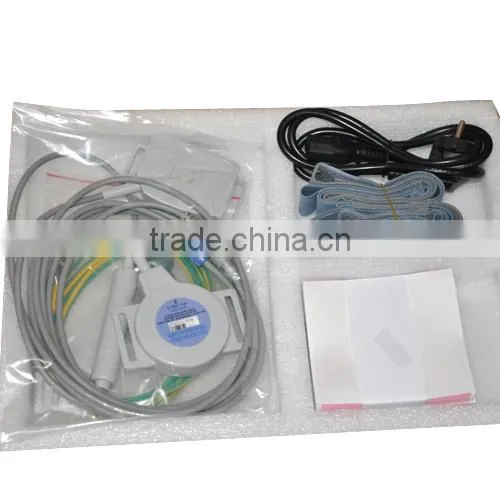

- Transducers:
Ultrasonic Transducer:
System: Pulsed Doppler
Dimension: 90mm × 65mm
TOCO Transducer:
System: Passive Straingauge
Dimension: 102mm × 50mm
Remote Marker:
Length: 3.2m - Dimension: 320(L) x 260(W) x 80(H) mm
- Weight: about 3.2 Kg
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aims to provide the costeffective, reliable performance products. By collaborating with famous universities
and organizations, the company has designed and produced several types medical equipments in China market.
The quality management system of our company is ISO13485 certified.
Our products are also CE certified by MedCert Germany CE 0482.
Our company has a considerable market share in China domestic market and a growing increase in international market.
We aims to build good business relationships with more international distributors and customers sincerely.
We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices
and rapid & effective customer service
