High Frequency Surgical Unit Electric Electrosurgical Unit
US$ 800 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Properties:
Abdominal Surgery Equipments
Type:
Knife
Brand Name:
Carejoy
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Arrival ! Infusion Pump LCD Display Volumetric Automatic in Hospital ICU CCU Clinic by CE ISO CertifiedUS$ 300 - 400MOQ: 1 Set -
2015 Hot Seller Infusion Pump IP-50C KVO Function Made-in-ChinaUS$ 400 - 500MOQ: 1 Set
-
100% Warranty Audible and Visible Alarm Infusion Pump Volumetric Automatic by CE&ISO&FDA MarkUS$ 300 - 500MOQ: 1 Set
-
On Sale Portable Syringe Pump Hospital Clinic With CE*ISO*FDA Approved SP-50BUS$ 300 - 450MOQ: 1 Set
-
Handheld Veterinary Syringe Pump for KVO Injection Pump SP-50BV for Animal VetUS$ 300 - 450MOQ: 1 Set
Properties
Abdominal Surgery Equipments
Type
Knife
Brand Name
Carejoy
Model Number
RES-300
Place of Origin
Beijing, China
Product Description

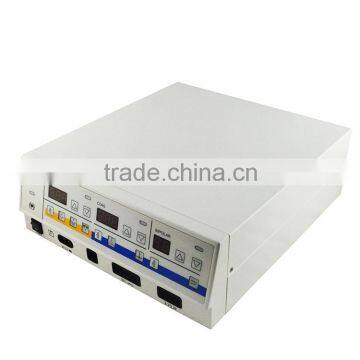

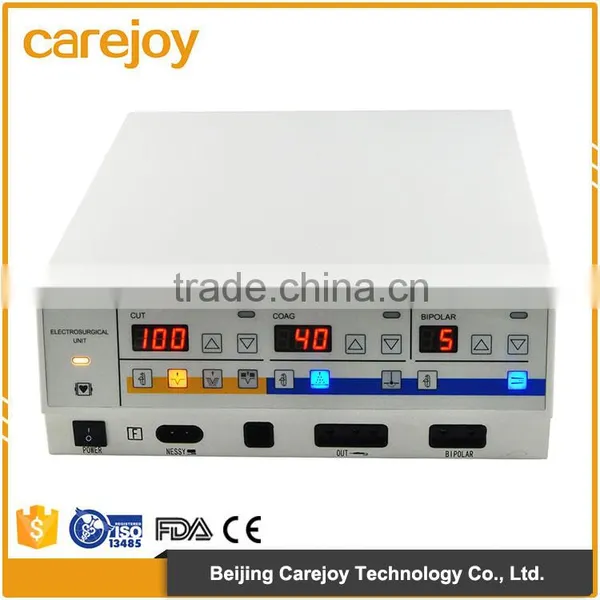

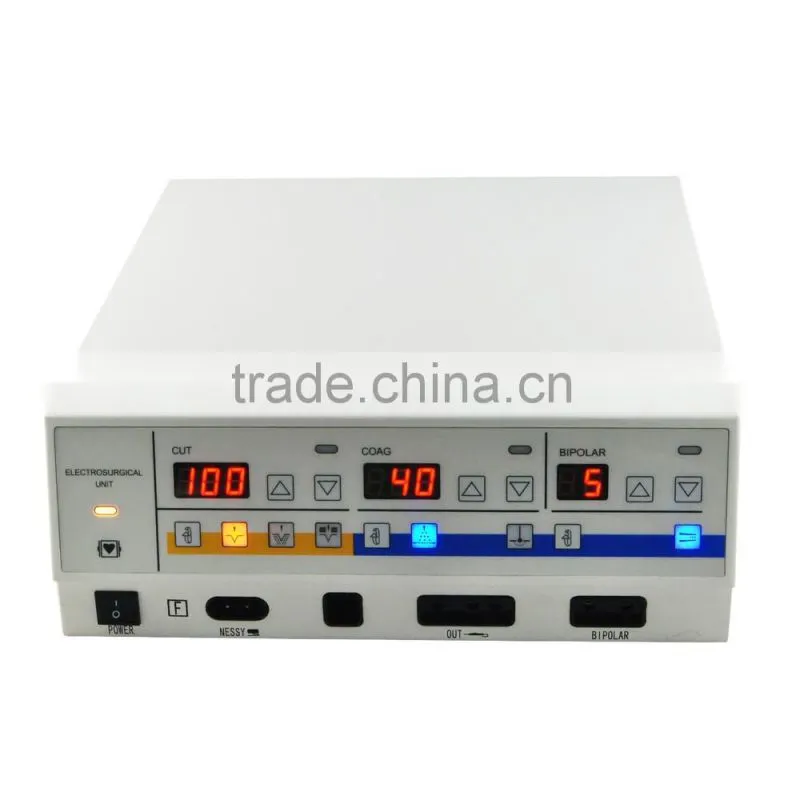

High Frequency Surgical Unit electric electrosurgical unit
Feature:
- The wide scope permanent power, the surgery locates precisely
- The return route pole plate monitor system, guarantees the patient safety
- 300W high efficiency output also continuously adjustable, can meet each kind of surgeon’s surgery needs. (General surgery, thoracic surgery)
- Seven kinds of working model, the surgery is quickly easy. (pure cutting, blend 1, blend 2, coagulation, spay, bipolar cut, bipolar coagulation)
- When turn on the Generator, it can check the system by itself
- When the neutral electrode detect that the impendence is between 20Ω and 140Ω, the alarm will be activated and the ESU will be shut down
- There are three kinds of sound to show the 4 different working modes as the following: Error Warning, Cutting & Coagulation, Bipolar

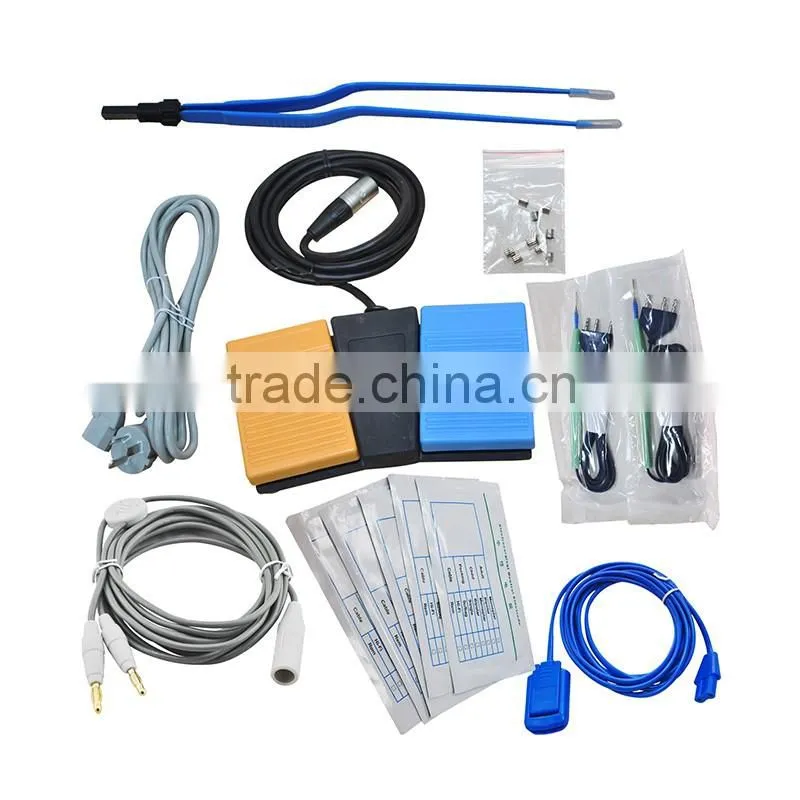

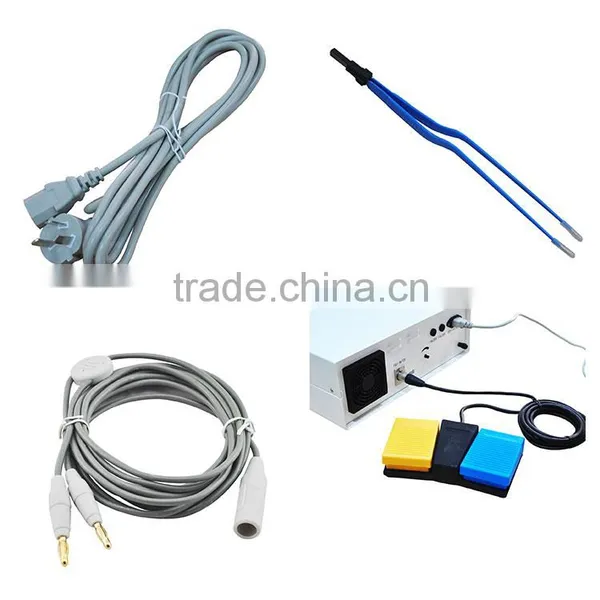

- Many kinds of appendix disposition, best performance-to-price ratio
- Classification: Class I, type BF
- Quality Management: ISO13485
- Line Voltage: 220V/110V 50/60Hz
- Power consumption: 600VA(max.)
Application:
- Ordinary surgery, cardiology, urology, gynaecology, thoracic surgery, oncology
Specification:
Work Type |
Work Mode |
Frequency |
Rated Power |
Wave |
Vp-p |
|
Monopole |
Incision |
Pure Incision |
416KHz |
0-300W(500Ω) |
Sine Wave |
2200V |
Mixed Incision I |
416KHz |
0-250W(500Ω) |
Modulate Sine Wave |
3000V |
||
Mixed Incision II |
416KHz |
0-200W(500Ω) |
Modulate Sine Wave |
3700V |
||
Concreting |
Standard Concreting |
416KHz |
0-100W(500Ω) |
Modulate Sine Wave |
4500V |
|
Jet Concreting |
416KHz |
0-80W(500Ω) |
Modulate Sine Wave |
5800V |
||
Bipolar |
Dual Incision |
416KHz |
0-100W(500Ω) |
Sine Wave |
1000V |
|
Dual Concreting |
416KHz |
0-70W(100Ω) |
Modulate Sine Wave |
700V |
||
Click the link for more styles:
http://jxkh.en.china.cn/productgrouplist-801147561/Endoscope.html
Contact Information

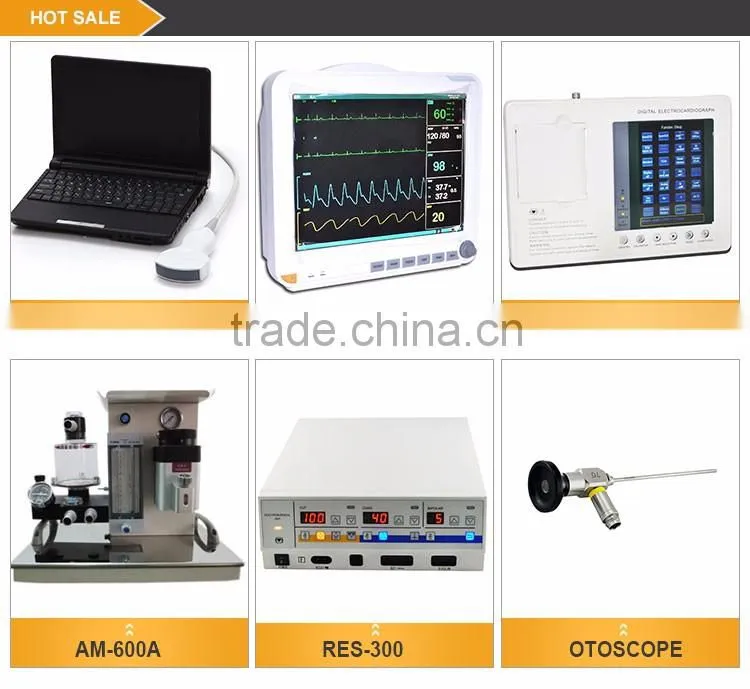

Hot Sale
Click the picture for detalied information:
Company Information
Our Services
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
