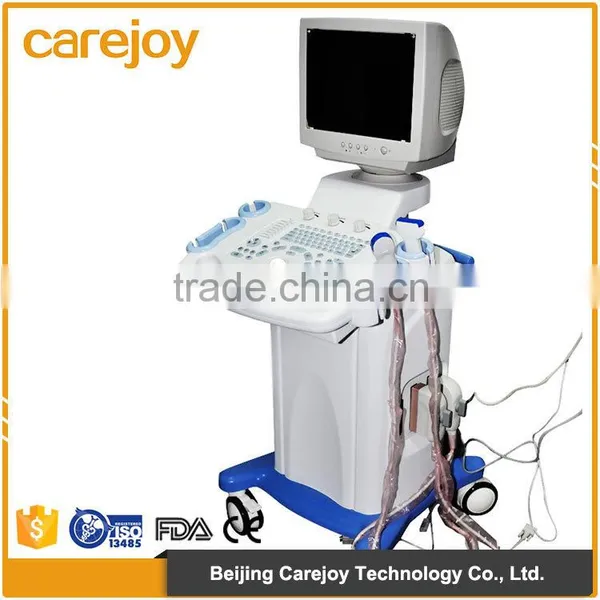

Digital Ultrasonic Diagnostic imaging System Trolley Ultrasound Scanner for medical
Features:
Digital Ultrasonic Diagnostic imaging System
Incorporated with the latest micro-electronic technology and image processing techniques such as BDBF, RDF, DFS, RDA, DRF and THI, RUS-9000C delivers excellent image clarity and accuracy, features a wide selection of broadband hign density transducers for general and specialty clinical applications of abdominal, OB/GYN, gynecology, cardiology, small organ, and urinary, etc, with optimal penetration and resolution. Powerful embedded PC work platform contributes to simple, efficient and pleasant operation experience.
Technical Specifications:
Transducer Type |
linear/convex/micro-convex array |
Scan Mode: |
B, B/B, B/M, M, 4B |
Gray Scale |
256 |
Monitor |
14”non-interlaced |
Transducer Frequency |
4-frequency, 2.0-10.0 MHz (depengding on transducers) |
Scanning Angle |
60-160 degree (depending on transducers) |
Scanning Depth |
20-240 mm (depending on transducers) |
Image Reverse |
90/180/270℃, positive/negative |
Dynamic Range: |
≥100 Db, 4-STEP switch |
Peripheral Ports |
Video, S-Video, VGA, RS232, RJ-45, USB 2.0 |
Power supplier |
100-260V, 50/60Hz |
Net Weight |
55kgs |
Carton Size (monitor included): |
86(L)×66(W)×106(H) CM |
Imaging Processing: Tissue Harmonic Imaging (THI)
Tissue Specific Imaging (TSI)
Frame correlation
Edge inhancement
y-correlation
8-segment TGC adjustment
Zoom: continuously, PIP (Picture in picture)
Cine-loop: 256 frames manually or automatically, 4B or 9B, B/M or M mode cine loop
Permanent Storage: >50000 Frames
Display Info: Date, Time, Hospital Name, Patient Mame/ID/Age/Sex/Weight, Transducer/Frequencey, etc
Software Packages: General, Obstetric, Gynecology, Cardiology, Organ, Urinary
Measurement &Calculation: distance, circumference, area, volume, angle, time, velocity, heart rate, residual urine, etc. Automatic measurement and calculation software packages of obstetric , gynecology, organ, cardiology and urinary.
Standard configurations:
14" non-interlaced monitor.
Main unit with abundant built-in software packages and peripheral ports, 2 transducer connectors.
R60/2.5/3.5/4.0/5.0MHz convex AC power cable.
Coupling gel.
Operation manual.
Optional:
R20/2.0/3.5/4.0/5.0MHz micro-convex transducer(128 element)
R10/5.0/6.5/7.5/8.0MHz transvaginal transducer (128 element)
L40/5.0/6.5/7.5/10.0MHz high frequency linear transducer(128 element)
3-D re-construction software
DICOM3.0
Biopsy guide
Video, laser or jet printer
Video recorder
CD/DVD ROM
160G hard disk
SD/CF card
Flash disk

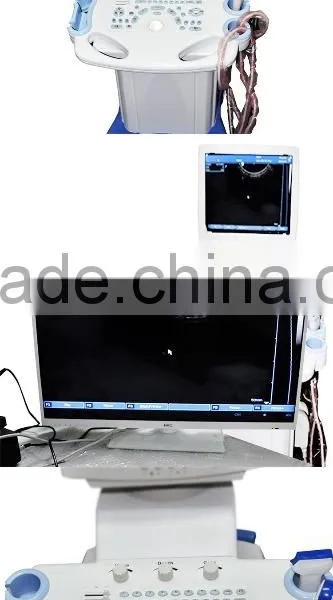

Details show:
Click the link for more styles:
http://jxkh.en.china.cn/productgrouplist-801116687/Ultrasound_Scanner.html
Click the picture for more styles:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
