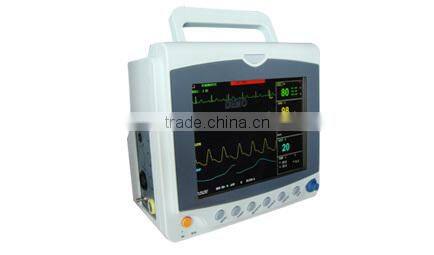

2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price

2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price thumbnail-1
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price thumbnail-2
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price thumbnail-3
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price thumbnail-4
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price thumbnail-5
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price photo-1
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price photo-2
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price photo-3
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price photo-4
2015 New 8.4-inch 4-Parameters Patient Monitor With Low Price photo-5
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Examination Therapy Equipments
Model Number:
RPM-9000C
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Examination Therapy Equipments
Model Number RPM-9000C
Place of Origin Beijing, China

Features:

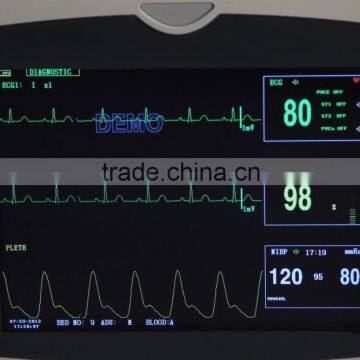

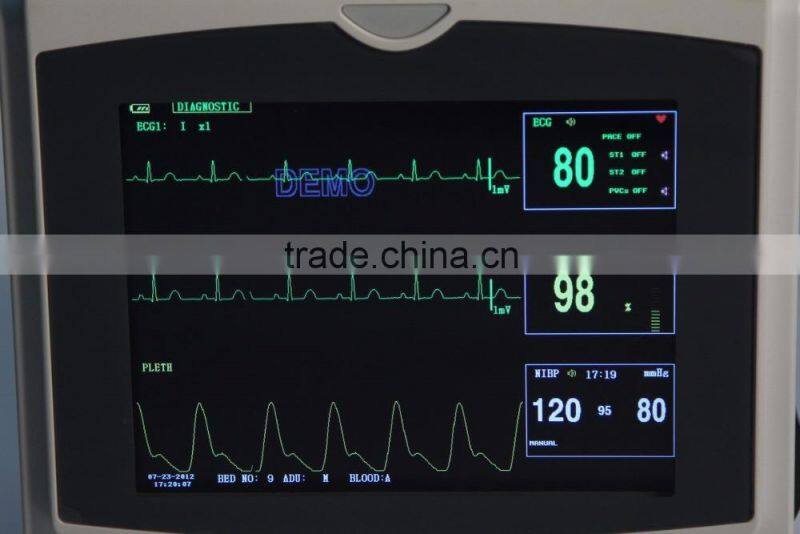

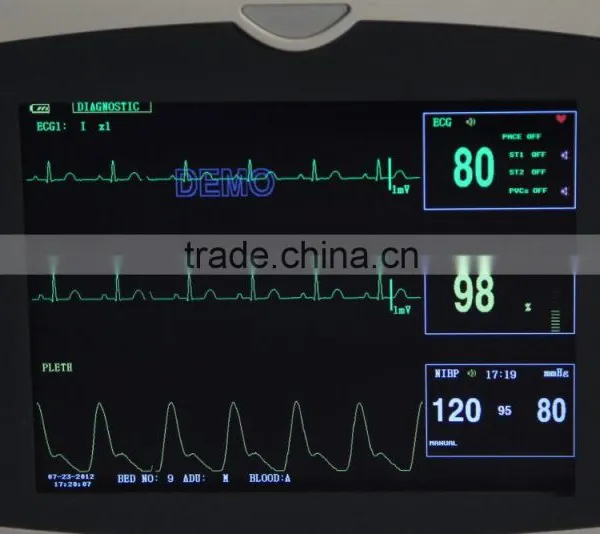

  • 8.4” color TFT display
  • Unique digital SPO technology with excellent measurement and interference-free
  • Audible and visual alarms with adjustable alarm range
  • Anti electrosurgical interference and defibrillation
  • Can be connected with LAN to work with central monitoring system
  • Powerful data management and storage capacity
  • Suitable for adult, pediatric and neonatal patient

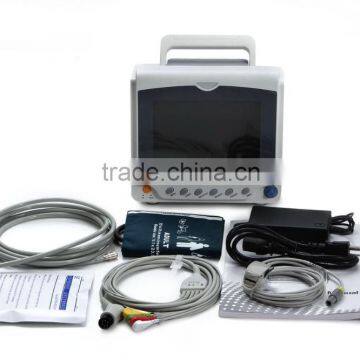

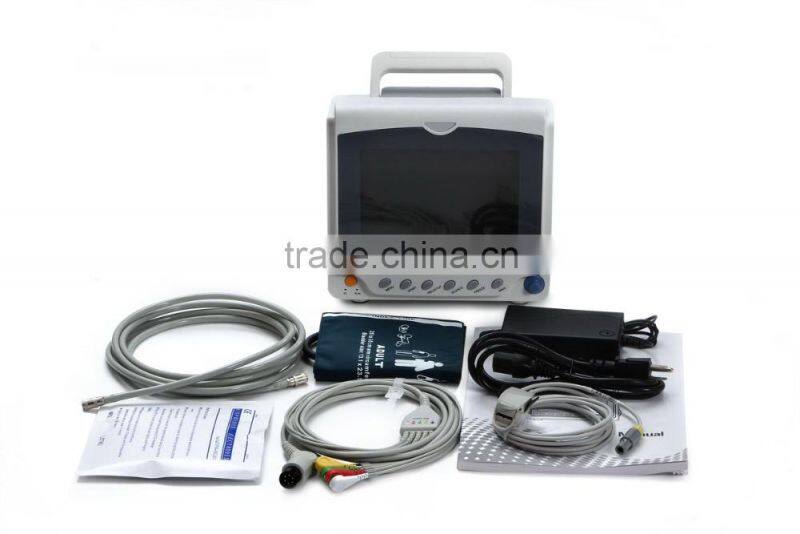

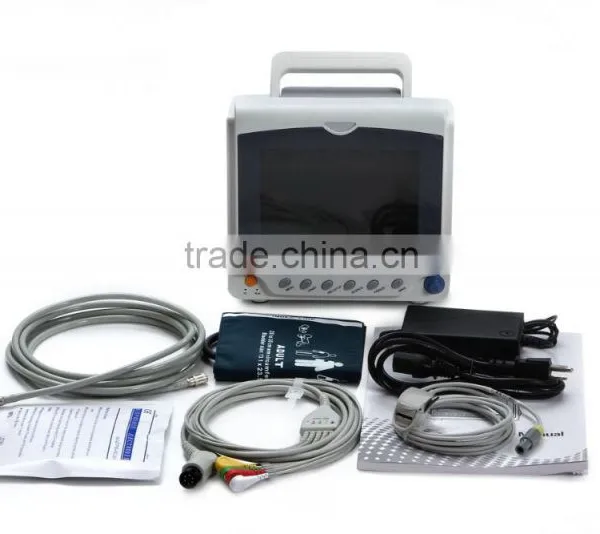

Standard configuration:

  • ECG, NIBP, SPO2, PR, Built-in rechargeable battery

Optional:

  • RESP, TEMP, 2-TEMP, 2-IBP, ETCO2, Thermal printer



Technical Specifications:

ECG:

  • Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
  • Lead selection: I, II, III, avR, avL, avF, V
  • Waveform: 2 ch
  • Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
  • HR and Alarm Range:
    Adult: 15 ~ 300 bpm
    Neo/Ped: 15 ~ 350 bpm
    Accuracy: ±1% or ±1bpm, which great
    Resolution: 1 bpm
    Sensitivity: >200uV P-P
  • Differential Input Impedance: >5MΩ
  • CMRR:
    Monitor: >105dB
    Operation: >105dB
    Diagnosis: >85dB
  • Electrode offset potential: 300mV
  • Leakage Current: <10uA
  • Baseline Recovery: <3s after Defi.
  • ECG Signal Range: 8mV(Vp-p)
  • Calibration Signal: 1mV (Vp-p), 5% Accuracy
  • ST Segment measure and alarm: -2.0 ~ +2.0 mV

NIBP:

  • Method: Oscillometry
  • Mode: Manual, Auto, STAT
  • Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90Min
  • Measuring Period in STAT Mode: 5 Min
  • Pulse Rate Range: 40 ~ 240 bpm
  • Alarm Type: SYS, DIA, MEAN
  • Measuring and alarm Range
    Adult Mode:
    SYS: 40 ~ 270 mmHg
    DIA: 10 ~ 215 mmHg
    MEAN: 20 ~ 235 mmHg
    Pediatric Mode
    SYS: 40 ~ 200 mmHg
    DIA: 10 ~ 150 mmHg
    MEAN: 20 ~ 165 mmHg
    Neonatal Mode
    SYS: 40 ~ 135 mmHg
    DIA: 10 ~ 100 mmHg
    MEAN: 20 ~ 110 mmHg
    Resolution: 1mmHg
  • Over-pressure protection: YES

SPO2:

  • Measuring Range: 0 ~ 100%
  • Alarm Range: 0 ~ 100%
  • Resolution: 1%
  • Accuracy:
    70% ~ 100%: 2 %
    0% ~ 69%: unspecified
  • Actualization interval: About 1Sec.
  • Alarm Delay: 10 Sec.
  • Pulse Rate
    Measuring and Alarm Range: 0~254bpm
    Resolution: 1bpm
    Accuracy: 2bpm
    Alarm Delay: 10 Sec.



2015 new 8.4-inch 4-Parameters Patient Monitor with low price





2015 new 8.4-inch 4-Parameters Patient Monitor with low price2015 new 8.4-inch 4-Parameters Patient Monitor with low price2015 new 8.4-inch 4-Parameters Patient Monitor with low price2015 new 8.4-inch 4-Parameters Patient Monitor with low price







2015 new 8.4-inch 4-Parameters Patient Monitor with low price
