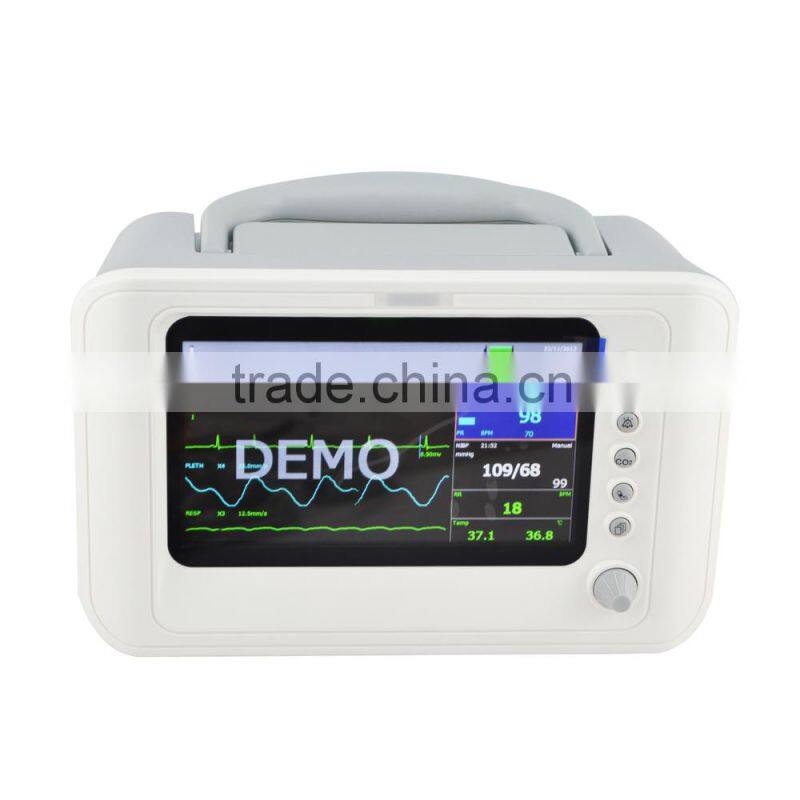

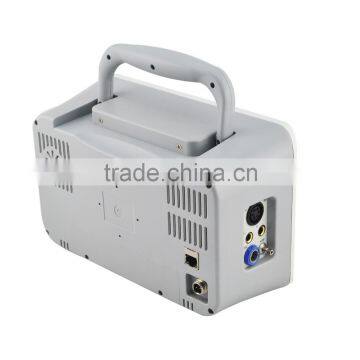

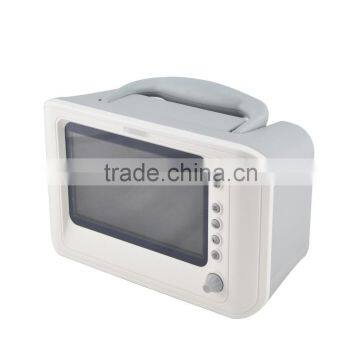

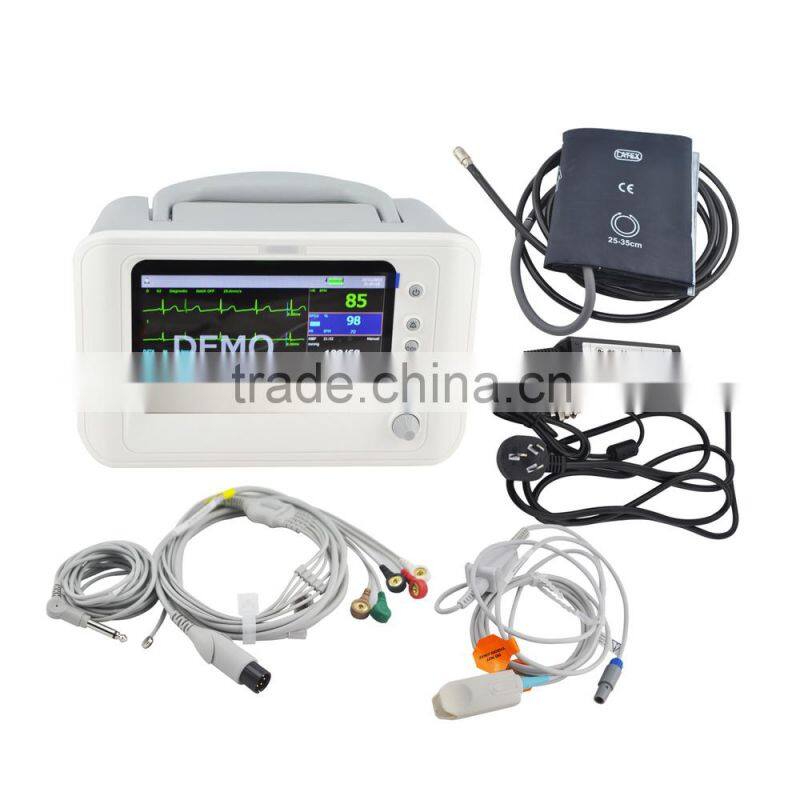

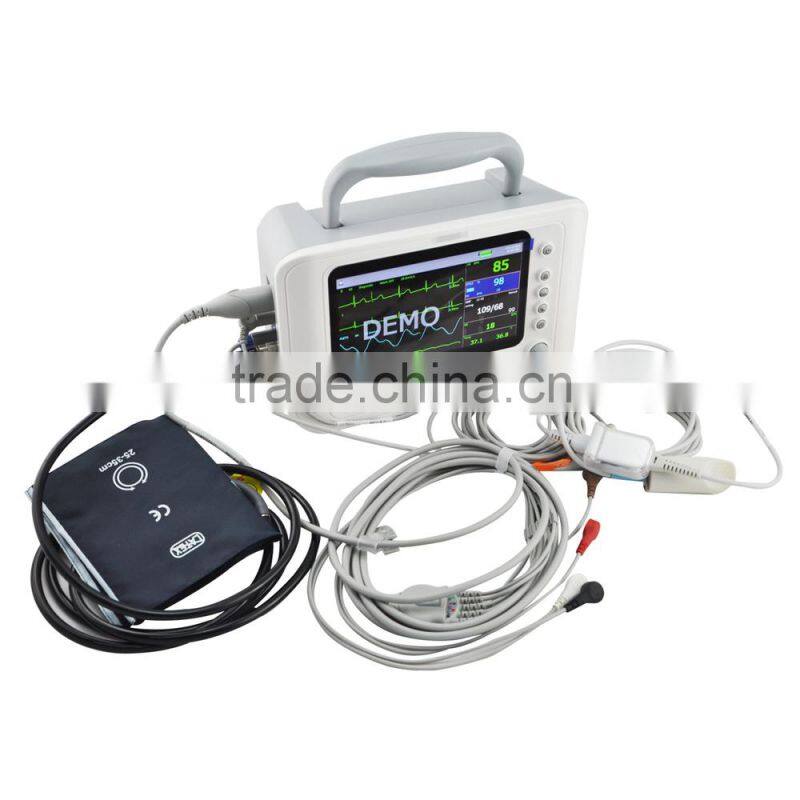

Help CenterHandheld 7 Inch 6 Parameter Patient Monitor RPM-9000F With Battery by CE ISO Approved
Related Products
-
CE ISO Certified Portable15 Inch 6 Parameter Patient Monitor for Adult, Pediatrics and NeonateUS$ 500 - 900MOQ: 1 Set -
2016 Promotion!! 12-Inch 6-Parameter Patient Monitor /BP Monitor/ECG Monitor RPM-9000ENegotiableMOQ: 1 Set
-
Big Screen 15-inch 6-Parameter Patient Monitor Ambulance Monitor on SaleNegotiableMOQ: 1 Unit
-
8 Inch Multi-parameter Patient Monitor Optional Printer RPM-9000D2 for Adult, Pediatrics and Neonate PatientsUS$ 410 - 700MOQ: 1 Set
-
8-inch 6-Parameter Patient Monitor With Low Price Ambulance Patient MonitorNegotiableMOQ: 1 Unit
Patient Monitor
Pulse Oximetry
SPO2 Range: 1% to 99%
Resolution: 1%
Accuracy: 70% to 99% range: ±2%;
1% to 69% range: ±5%;
Method: Dual wavelength LED
NIBP (Non-invasive Blood Pressure)
Technique: Oscillometric during inflation
Range: Adult/Pediatric: 40 to 240 mmHg
Neonate: 10 to 150 mmHg
Measurement Cycle: < 40 sec. typical
Automatic Measurement
Cycles (Selectable): 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
STAT Mode: 5 minutes of continuous readings
Max. Allowable Cuff
Pressure: Adult: 300mmHg
Pediatric: 240 mmHg;
Neonate: 150 mmHg
Resolution: 1 mmHg
Transducer Accuracy: ±2 mmHg or ±2% of reading,
Heart (Pulse) Rate
Range: 30 to 250 bpm
Accuracy: ±2 bpm or ±3%, whichever is greater
Capnography (CO2)
Units: mmHg; kPa; %
Method: Non-dispersive infrared; auto calibrating
N2O Compensation: Manual; On/Off, user selectable
Range: 0 to 114 mmHg; 0 to 15%
Flow, Sample Rate: Sidestream; 50 ml/min
Accuracy: ±2 mmHg or 5% of reading
Respiration Rate
Rate: 2 to 120 bpm (CO2)
Resolution: 1 breath/min
Trends
Memory: 96 hours with a NIBP reading every 5 minutes
Display: tabular, graphical
Interface & Display
Keys: 4; membrane activated
Rotary Knob: Push and rotate; 24 steps/turn
Screen: 6 inch active color TFT
Resolution: 800 x 480 pixels
Waveforms: 3, maximum
Waveform Types: CO2; Pleth;
Sweep Speed: 6.25, 12.5, 25 mm/s
Languages: English
Printer (optional)
Type: Thermal printer
Paper Speed: 6.25, 12.5, 25 mm/sec
Physical Properties
Weight: 1.7 kg
Size: 17.5 cm (H) x 23 cm (W) x 11 cm (D)
Power Requirements
Voltage: 110-240 V AC; 50 Hz
Power Consumption: 8 Watts, typical
Battery: 1 sealed lithium battery
Battery Life: 8 hours, typical
Recharge Time: 4 hours, typical
Environmental
Operating Temperature: 59° to 95°F (15° to 35°C)
Storage Temperature: 23° to 122°F (-5° to 50°C)
Operating Humidity: 15% to 90%, non-condensing
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aims to provide the costeffective, reliable performance products. By collaborating with famous universities
and organizations, the company has designed and produced several types medical equipments in China market.
The quality management system of our company is ISO13485 certified.
Our products are also CE certified by MedCert Germany CE 0482.
Our company has a considerable market share in China domestic market and a growing increase in international market.
We aims to build good business relationships with more international distributors and customers sincerely.
We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices
and rapid & effective customer service
