Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A

Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A thumbnail-1
Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A thumbnail-2
Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A thumbnail-3
Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A photo-1

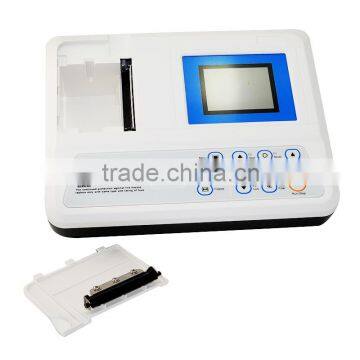

Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A photo-2

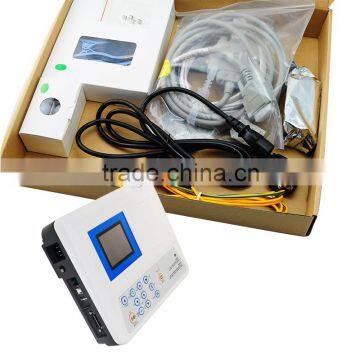

Portable 5 Inch 3-channel Color LCD ECG Machine Electrocardiograph EKG-903A photo-3
US$ 400 - 460 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other
Brand Name:
Carejoy
Model Number:
EKG-903A
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Brand Name Carejoy
Model Number EKG-903A
Place of Origin Beijing, China





Product Description

 ECG Machine  Electrocardiograph

Features:
  • Three channel digital ECG machine with interpretation
  • Simultaneous acquisition of 12-lead ECG signal
  • Manual/Auto/Arrhythmia analysis modes
  • Real time ECG, 20 patients cases
  • Multiple printing modes
  • 80mm 3-ch format recording
  • 5 inch Color LCD
  • High resolution thermal printing system
  • High resolution digital filter
  • Built-in USB or RS232, optional PC-ECG software
  • AC/DC power, built-in rechargeable Ni-MH battery
  • Light weight with handle, convenient for use
Specification:

Safety standard
IEC60601-1 class I, type CF
Lead
Standard 12 Leads, Lead change automatically
Resolution
 12 bit / 1000Hz
Operation mode
Manual/Auto/Analysis modes
Filter
AC, EMG filter
Drift filter
Anti-drift system
Input circuit
Floating; Protection against Defibrillator effect
CMRR
>100dB (with filter)
Input circuit current
<0.1μA
Input impedance
≥50ΜΩ
Calibrating voltage
1mV±3%
Frequency response
0.05Hz~160Hz (IEC)
Time constant
>3.2seconds
Noise level
≤15Vp-p
Threshold
≤20μV
Sensitivity
Auto 2.5, 5, 10, 20, 40mm/mV
Recording system
High resolution thermal printer
Paper speed
25, 50mm/s±3%
Recording paper
112mmx20m, roll/fold paper
Power supply
AC: 220V / 110V, 50/60Hz
DC: 14.4V rechargeable NI-Ion battery (2200mAh)
LCD display
320x240 graphic, 5 inch Color LCD
Dimensions
285×265×72mm
Weight
2.5kg
