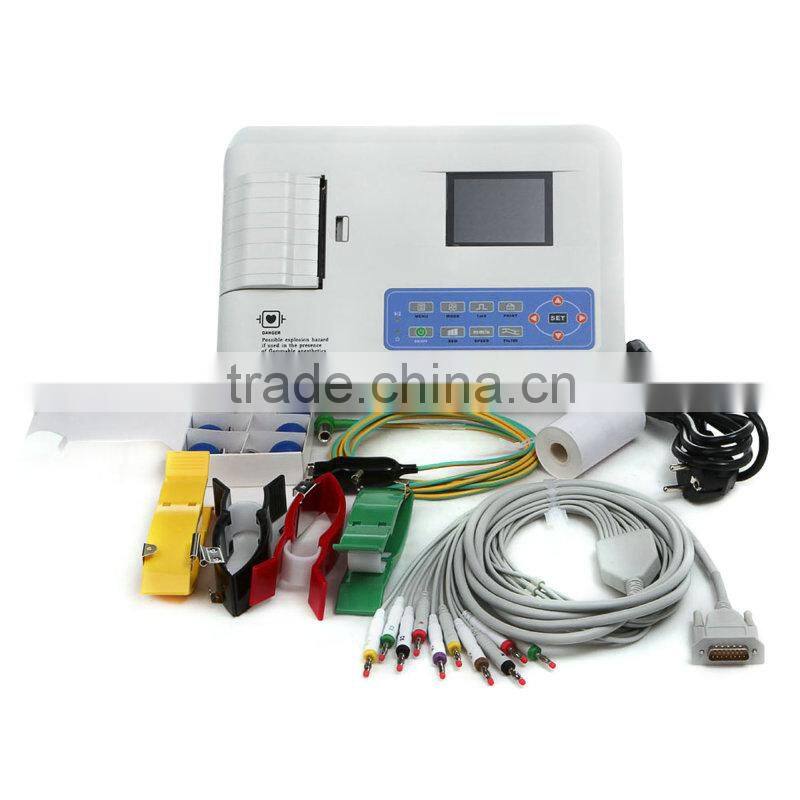

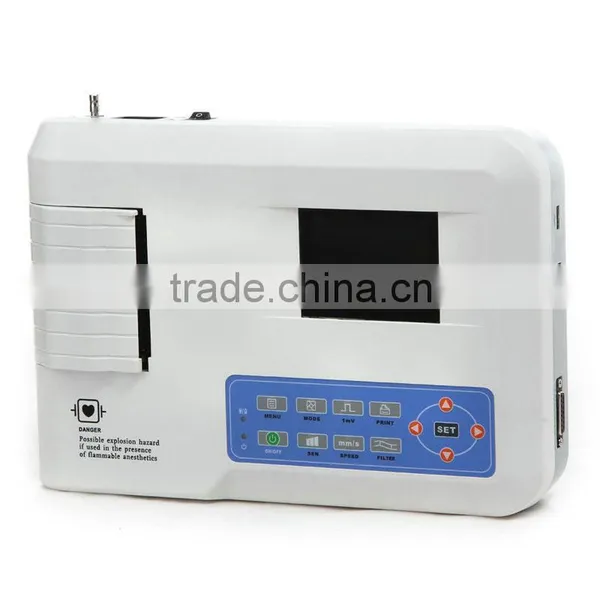

CE Approved Portable Digital 3-channel Color Electrocardiograph ECG EKG Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Type:

First-Aid Devices

Brand Name:

OEM

Model Number:

EKG-903B

Beijing Carejoy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Type First-Aid Devices

Brand Name OEM

Model Number EKG-903B

Place of Origin Beijing, China

Description:

Features:

12-lead simultaneous standard resting ECG

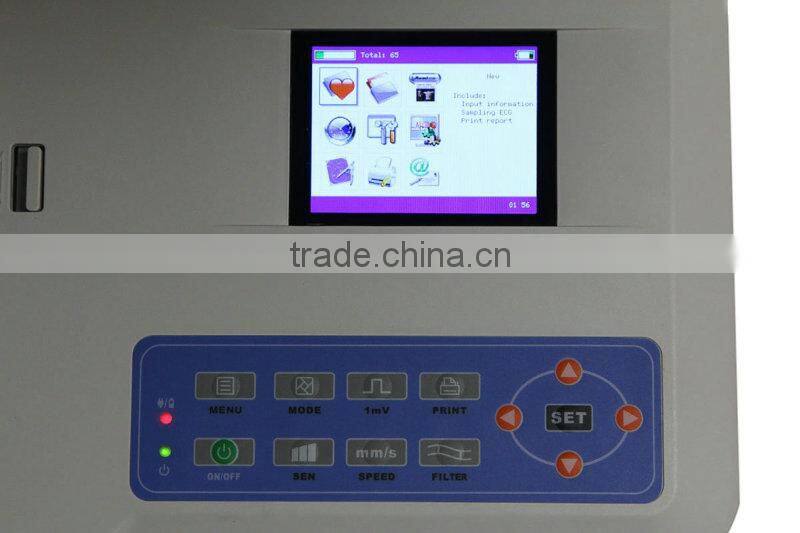

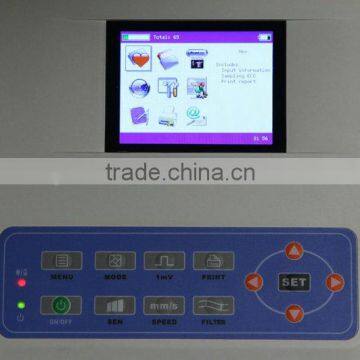

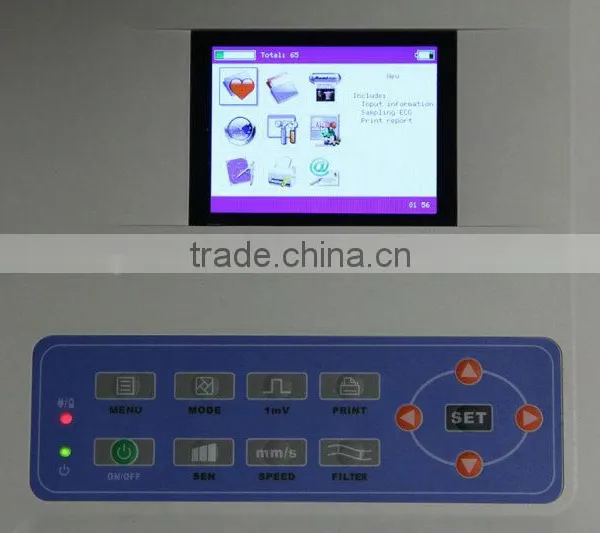

One-touch operation
Concept of floating input circuit meets IEC safety standard

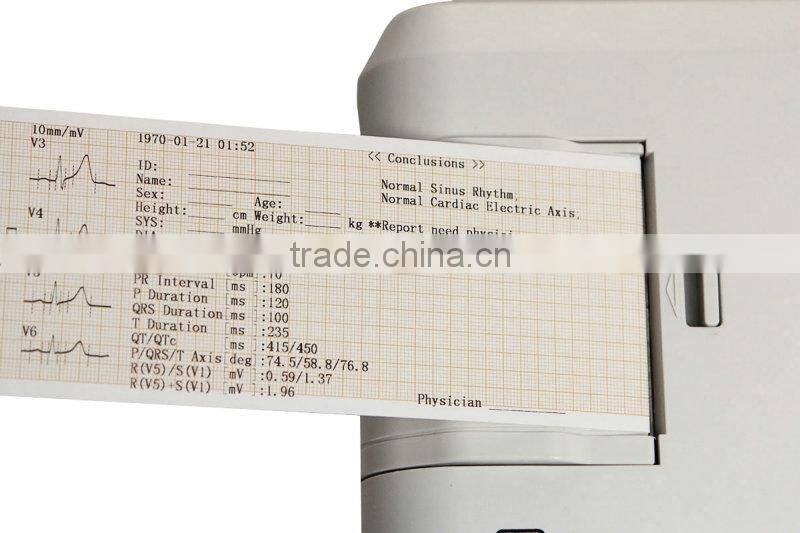

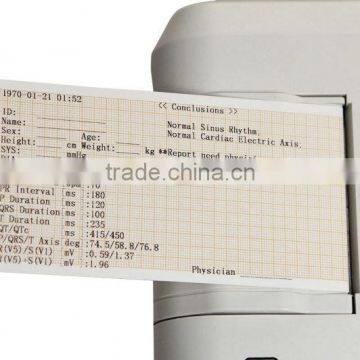

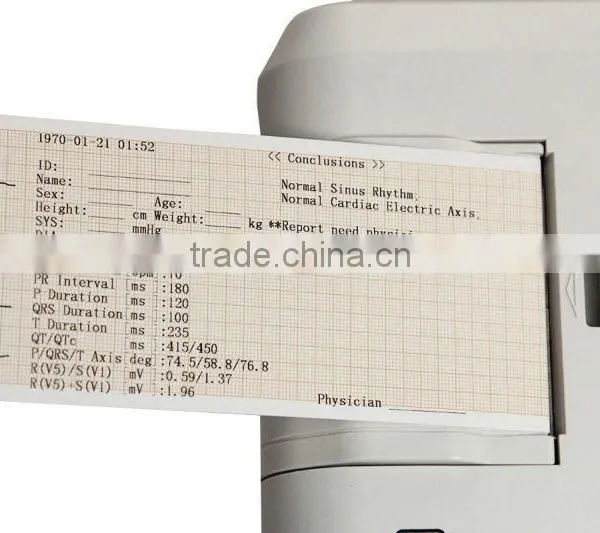

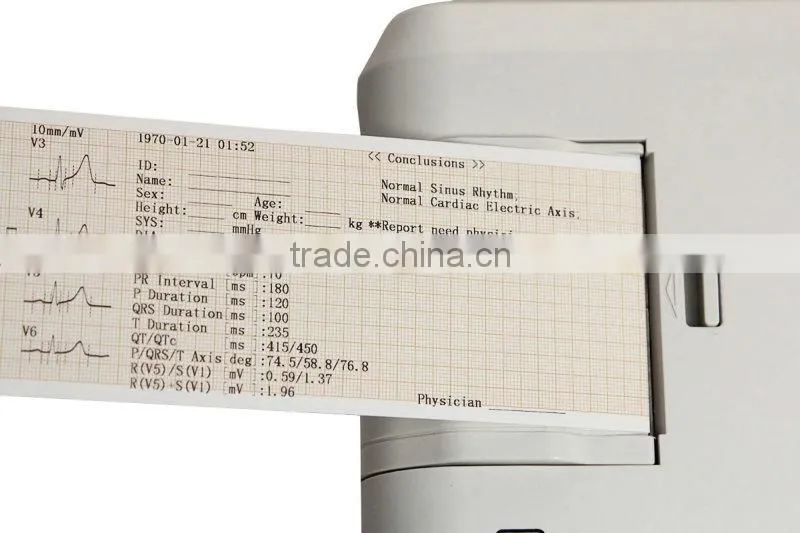

High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
Rechargeable battery supporting more than 50 patient examinations

Specification:

Safety standard	IEC class I, type CF
Input circuit	Floating; Protection against Defibrillator effect
Lead	Standard 12 Leads, Lead change automatically
Patient current leakage	<10μA
Input impedance	≥10ΜΩ
Calibrating voltage	1mV±3%
A/D conversion	12 bit
Frequency response	0.05Hz~150Hz (IEC)
Time constant	>3.2seconds
CMRR	>80dB
	>100dB (with filter)
EMG filter	35Hz (-3dB) / 25Hz (-3dB)
Sensitivity	1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording system	Thermal-array
	8 dots/mm ( vertical )
	16 dots/mm ( horizontal, 25mm/sec )
Paper speed	25, 50mm/s±3%
Recording paper	50mm,20m, high-speed roll
Input circuit current	≤50nA
Power supply	AC: 220V / 110V, 50/60Hz
	DC: 12V rechargeable battery
Skin voltage tolerance	±300mV
Noise level	<15uVp-p
Dimensions	310×230×70mm

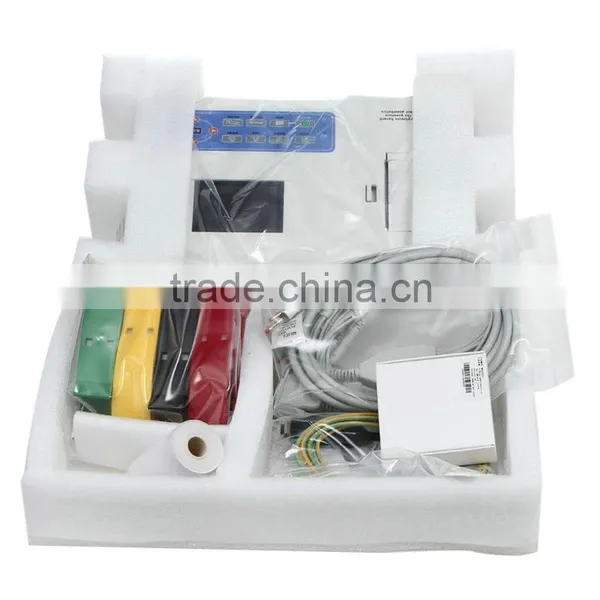

Dimension of packing	400×280×160mm
Weight	2.75kg
