Details

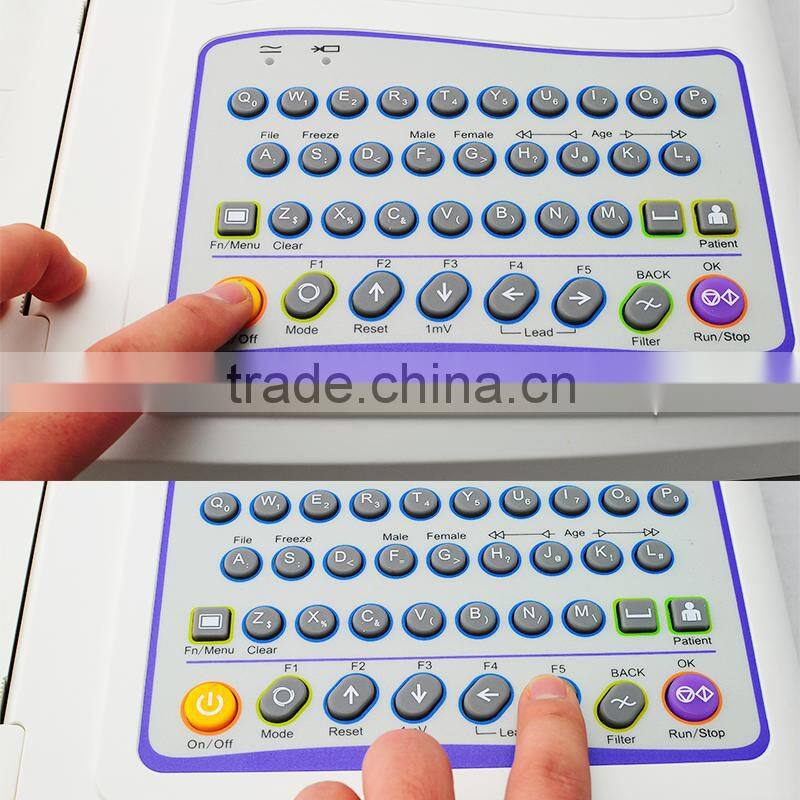

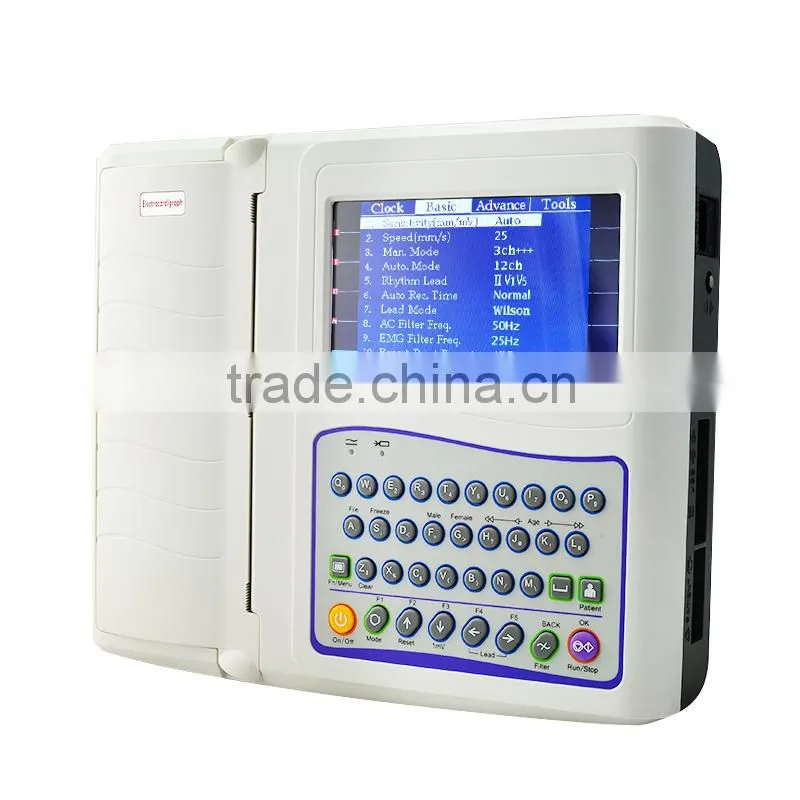

- Alphanumeric keyboard to operate, very convenient to use

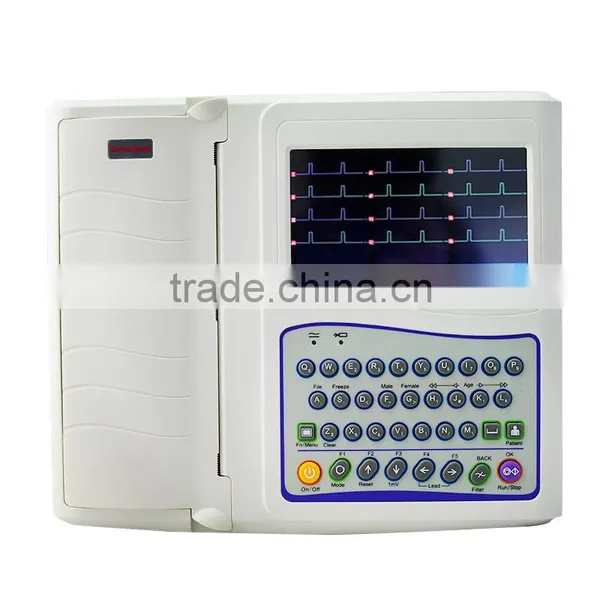

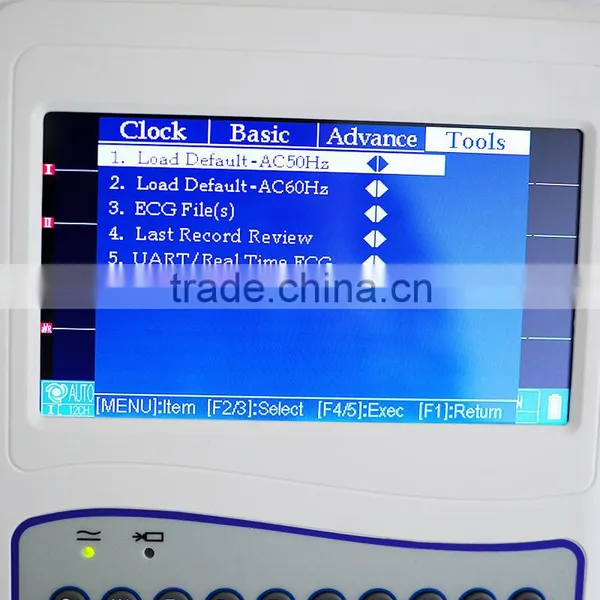

- 800x480 graphic 7 inch color LCD to simultaneously display ECG information
- Portable and delicate design, easy to operate
- Accurate pulse pace identification function
- High accuracy digital filter, automatic baseline adjustment
- Working modes: Manual, Automatic, Arrythmia Analysis, Storage
- 215mm, 12 channel format recording, excellent automatic interpretation
- 250 patient cases storage ( SD card storage is optional )
- Detailed patient information record
- Adapt to 110-230V,50/60Hz power supply.
- Built-in rechargeable Li-ion battery continuously working for about 4 hours

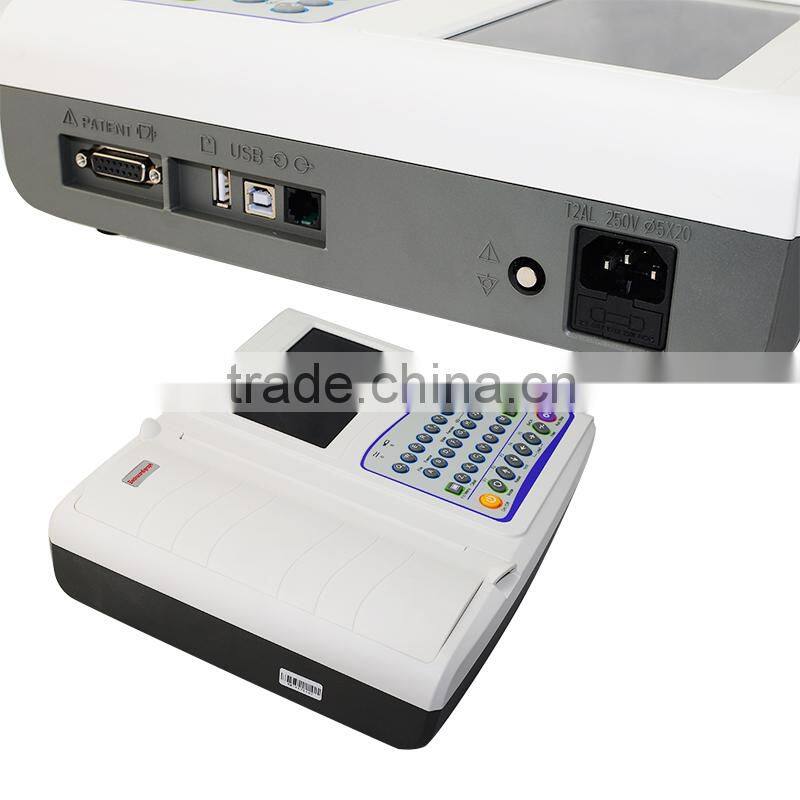

- USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )
General Specs
Lead |
Standard 12 leads |
Lead acquisition |
12 bit/1000Hz(synchronously 12 leads) |
Work mode |
Manual/Auto/R-R Analysis |
Filter |
AC Filter: 50Hz/60Hz EMG Filter: 25Hz/45Hz Anti-Drift Filter:0.15 Hz (Adaptive) |
CMMR |
≥120dB (with AC Filter) |
Input circuit |
Floating; Protection circuit against Defibrillator effect |
Input impedance |
≥50ΜΩ |
Input circuit current |
≤0.05 μA |
Patient current leakage |
<10 μA |
Calibrating voltage |
1mV±2% |
Voltage tolerance |
≥±500mV |
Time constant |
≥3.2s |
Frequency response |
0.05~160Hz(-3db) |
Noise level |
<15μVp-p |
Inter-channel interference |
≤0.5mm |
Sensitivity |
Auto,2.5,5,10,20,40mm/mV(±3%) |
Recording mode |
3ch+++, 6ch, 6ch+, 12ch Default Man.Mode is 3ch+++ format Default Auto.Mode is 12ch format |
Paper speed |
6.25,12.5,25,50mm/s(±3%) |
Paper |
215mm x 20m roll / 210x140mm Z-fold paper |
Working environment |
Temperature5-40℃;Humidity 25-95% |
Power supply |
AC 110-230v(±10%), 50/60Hz(±1Hz), 40VA DC Built-in rechargeable battery,14.4V (4400mAh) |
Dimension/Weight |
347mm x 293mm x 83mm, 4.8kgs |
Packing List:
Electrocardiograph: 1each

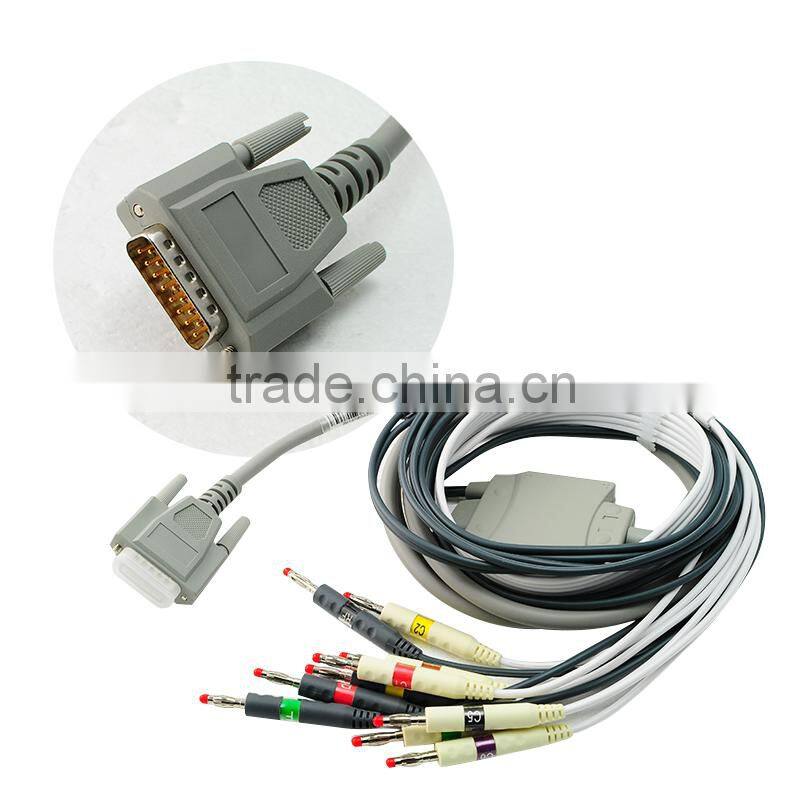

Banana type ECG cable: 1each

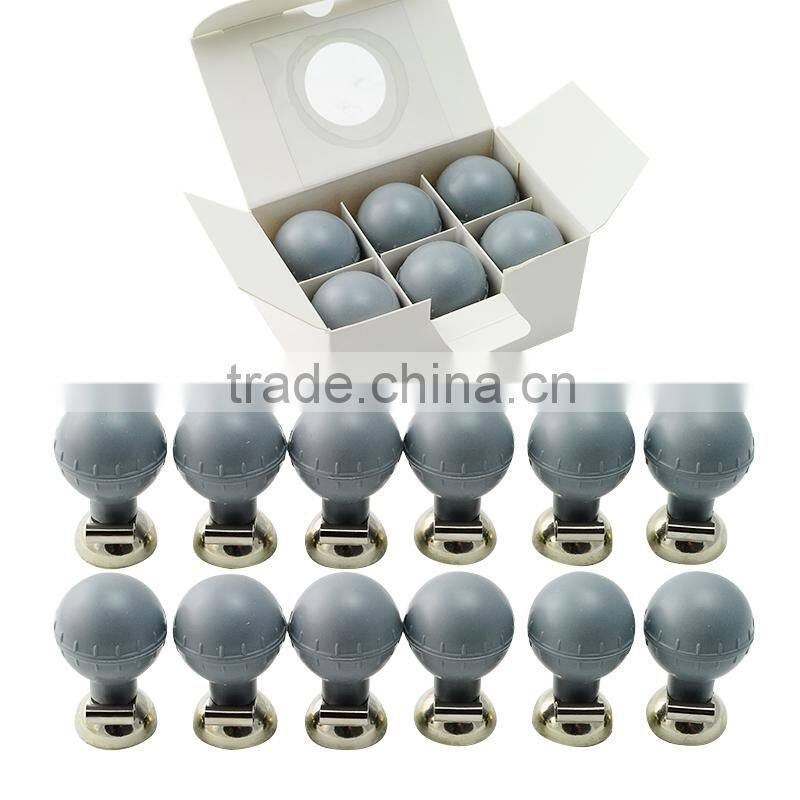

Chest electrodes: 6each

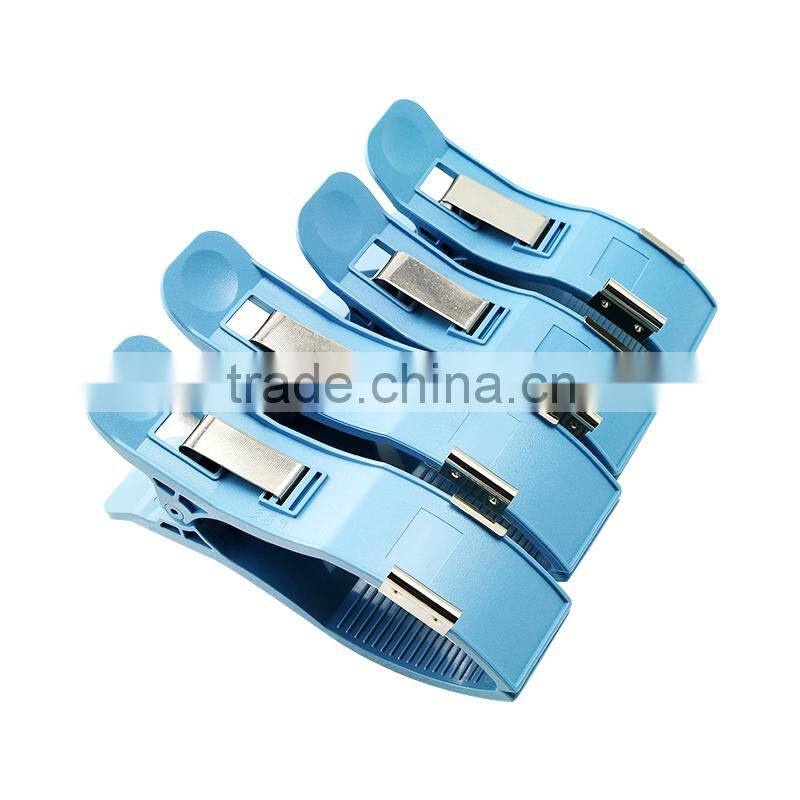

Limb electrodes: 4each
Power cable: 1each
Grounding cable: 1each
Fuse: 2each
Paper roll: 1each
Manual: 1each
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
