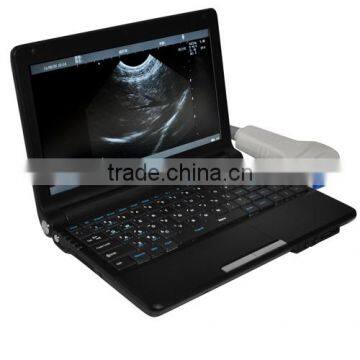

Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function

Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function thumbnail-1
Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function thumbnail-2
Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function thumbnail-3
Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function photo-1
Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function photo-2
Laptop 10.1 Inch LCD pc Ultrasound Machine for Scan With 3D Function photo-3
US$ 300 - 1,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Doppler Ultrasound Equipment
Brand Name:
Carejoy
Model Number:
RUS-9000F
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Doppler Ultrasound Equipment
Brand Name Carejoy
Model Number RUS-9000F
Place of Origin Beijing, China



Hot Sale black color 10.1-inch high-resolution TFT LCD portable pc ultrasound machine for scan

Product Description

  Ultrasound Scanner

This laptop versatile linear & convex ultrasound system is ideal for mixed practice. It is designed for bedside use and emergency scanning (triage ultrasound) either on site or in a rescue situation. RUS-9000F, weight only 1.5kg, is distinguishable by its bright and clear image quality. The probes offer a wide range of diagnostic applications. This scanner is a cost effective solution for family doctors, veterinary scanning. The complete software package, the multi-step zoom, and the high product versatility are available in it.

Advanced digital imaging technology
DBF: Digital Beam Forming technology
DFS: Dynamic Frequency Scanning technology
DRF: Dynamic Receiving Focusing technology
RDA: Real-time Dynamic Aperture imaging technology
DRA: Real-time Dynamic Receiving Apodization technology

Specification:
Performance:
Image mode:  B, B+B, 4B, B+M, M
Grey:              256
Display:          10.1-inch high-resolution TFT LCD
Probe frequency:   2.5~10.0 MHz
Probe connector:   1
Lateral resolution:  ≤3 mm (depth ≤80mm)
                               ≤4 mm (80mm≤depth ≤130mm)
longitudinal resolution:  ≤2 mm (depth ≤80mm)
                                       ≤3 mm (80mm≤depth ≤130mm)
Detectable depth: ≥160mm
Blind area:   ≤5mm
Geometrical position distortion: Lateral ≤15
                                              Longitudinal ≤10

Image processing:
Pre-processing:     Continuously variable aperture
                              TGC (Near Middle Far)
                              Dynamic filtering
                              Dynamic Range
                              Edge enhancement
                              Frame correlation
                              Smooth
Post- processing:  Gray map
                              Black/white reverse
                              Left/right reverse
                              Up/down reverse

Function:
Cine loop:     192-frame cine loop memory
Zoom:           X0.8X0.9X1.0X1.1X1.2X1.3X1.4X1.5
                      magnifications in real time
Permanent Storage: 1024
Storage media: massive image-storage capacity
                          USB disk
                          SD card
Front panel control:  Brightness, overall gain of the image
Focusing method:   Automatic multi-stage focusing
OSD (On Screen Display): Date, Time, age, sex, Patient ID and hospital, information, Gain, Focusing, Comments, Scroll, Zoom setting
Measurements: Distance, circumference, area/perimeter, volume, heart rate, pregnant week, fetal weight, etc.
Body-marks:  More than forty different body-markers
Adjustable biopsy guideline:  Guidance for puncture
Sleep mode:  save energy and protect screen and probe
Parameter Preset:  Suitable present for different application (Gynecology, Heart, Abdomen)
Image mode:  B, B+B, 4B, B+M, M

Measurement & Calculations
B mode: Distance, circumference, area, volume
M mode: Distance, velocity, heart rate
Software packages:
Abdomen    (Distance, circumference, area, volume)
GYN/OB     (EDD,GA,BPD,GS,CRL,AD,AC,FL,HC,FTA,APTD,TTD,FW),
Cardiology  (SAm, SL, SAi, SD, DAm, DL, DAi, DD, ESV, EDV, SV, EF)

Others

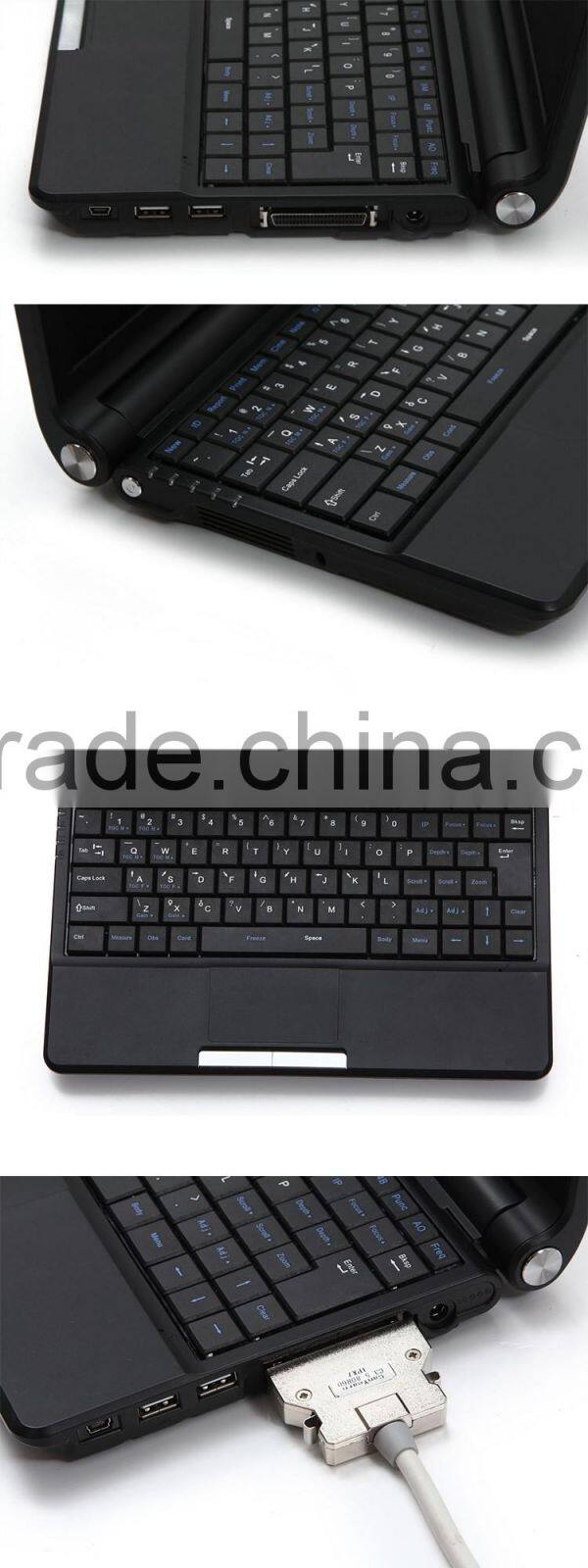

Peripheral port:  Video output 1
                           USB port 2
                           MiniUSB2.0 port
Power supply: AC 100~240V
                       50Hz/60Hz
Dimension (cm): 37(L)X27(W)X6(H)
Net weight: 1.5 KG

Standard Configurations:
Main unit
10.1-inch high-resolution TFT LCD
1 each 3.5MHz R60 convex probe
1 probe connector
192 frames cine-loop
1024 permanent storage
OB report
OB & GYN & Cardiac software
2 USB port & 1 mini2.0USB port
VALENX Li-ion battery

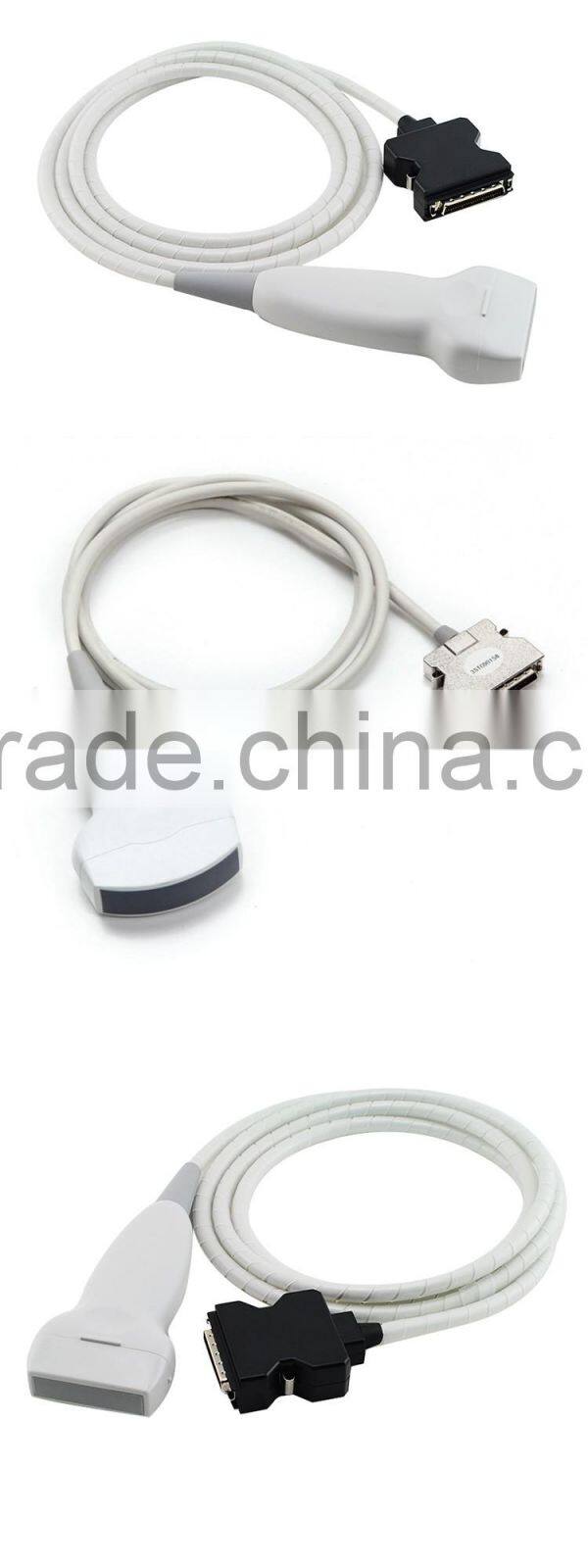

Optional
7.5MHz linear probe
6.5MHz Trans-vaginal probe
5.0MHz Micro-convex probe

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D function



Click the link for more styles:

http://jxkh.en.china.cn/productgrouplist-801116687/Ultrasound_Scanner.html





Hot Sale

Click the picture for more styles:

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D functionlaptop 10.1 inch LCD pc ultrasound machine for scan with 3D function





Contact information

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D function

Company Information

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D function



Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.

Packaging & Shipping

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D function

laptop 10.1 inch LCD pc ultrasound machine for scan with 3D function
