High sensitivity Trolley style Digital Portable Ultrasound Scanner with 2 probe connector
Product Name: Digital Portable Ultrasound Scanner
Model: RUS-6000A
Features:
- Application of FPGA& SMT technology, brief circuits with reliable performance.
- Dynamic frequency imaging, multistage focusing, aperture control.
- Multi-frequency (4-frequency) & high sensitivity probe contributes to high resolution images.
- Applicable to abdominal, obstetrics, gynecological, urological and small parts diagnosis.
- Cline-loop & permanent image storage.
- 8-segment TGC.
- Built-in color coding module & VGA video outlet.
-User-friendly with one-touch keyboard & trackball operation.
- USB port.
Specification:
Display modes: B, B+B, B+M, M, 4B
Scanner depth: 230mm
Gray scale: 256
Image magnification: x0.8, x1.0, x1.2, x1.5, x2.0
Cline-loop: maximum 128 frames
Permanent Image storage: 32 frames
Image conversion: up/down, left/right, black/white
Local zoom: 4(can be used at frozen/real-time)
Frame correlation: selectable 4 levels
Body marks: 43
Pseudo color processor: 7 colors
Video output: PAL-D, VGA
Monitor: external monitor can be used
Measurement: distance, circumference, area, heart rate, pregnant week, fetal weight, EDD
Comments: real-time clock, date, scanning depth, model of probes, parameter of frame correlation, combination of focus, patient’s ID, gender, age
Power supply: AC220V±22V or AC110±11V, 50Hz±1Hz or 60 Hz±1Hz
Gross Weight: 12kgs
Net Weight: 10kgs(including probe)
Carton Size: 47cm x 39cm x 39cm
Standard:
10-inch SVGA high resolution monitor
2 probe connector
1 USB
80 elements R60, 3.5MHz multi-frequency convex probe

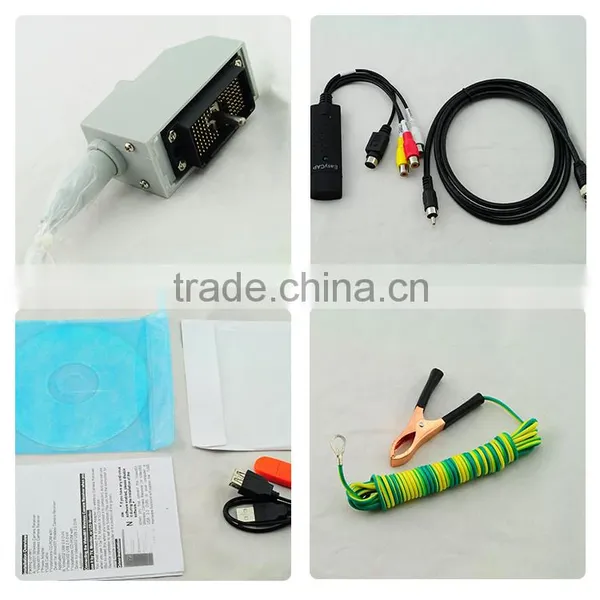

Optional:
High frequency linear probe
Electronic trans-vaginal probe
Micro-Convex probe
Video thermal recorder
3D Ultrasound image working station, etc.
Click the link for more styles:
http://jxkh.en.china.cn/productgrouplist-801116687/Ultrasound_Scanner.html
Click the picture for more styles:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
