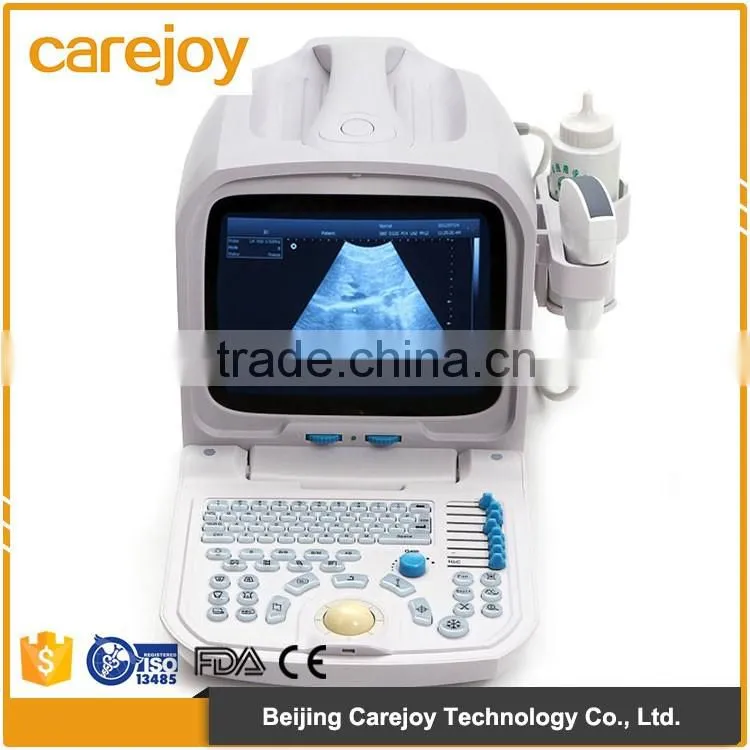

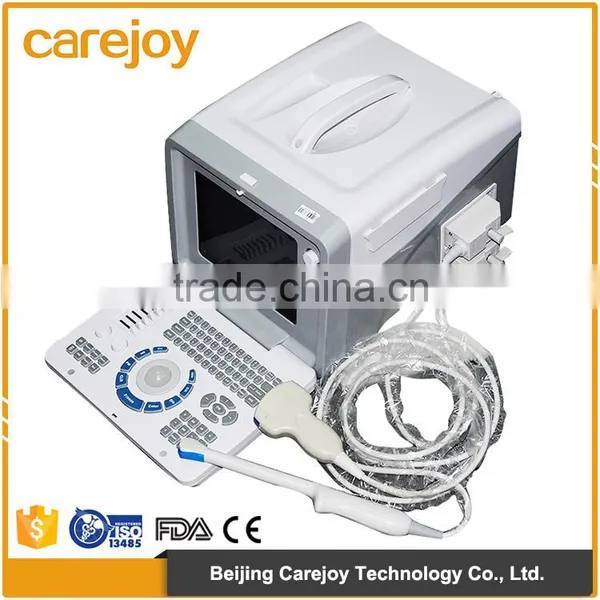

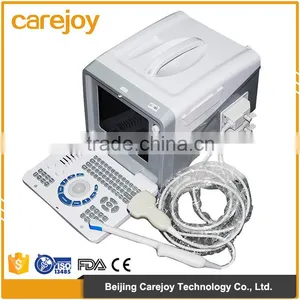

Medical hospital ultrasound diagnostic machine portable ultrasound equipment
Full Digital Imaging Technology
DBF: Digital Beam Forming.
RDA: Real-time dynamic aperture imaging.
DRA: Dynamic real-time acoustic apodizer.
DRF: Dynamic receiving focus.
DFS: Dynamic frequency scanning.
- Ensure that the image is not distorted, edge clearer, level richer.
- Humanized operating design.
- 8 sections TGC gain adjustment.
- With abundant built-in software packages.
- Comprehensive software measurement capabilities, to allow more extensive clinical application.
- Two probe connectors.
- Probe connected with a variety of choice to achieve maximum functionality.
Excellent value for money.
- VLSI, advanced technology, stable performance.
- Reasonable cost control, to achieve the perfect embodiment of price and performance.
Specification for Digital Ultrasound Scanner:
Image mode: |
B, B/B, 4B, B+M, M |
Image magnification: |
*0.8, *1.0, *1.2, *1.5, *1.8, *2.0 |
Local zoom: |
2 times local zoom in real time |
Dynamic range: |
64dB – 96dB adjustable |
Focus: |
4-segments dynamic electronic focuses selected |
Gray scale |
256 |
Multi-frequency: |
2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. |
Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc.
Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and calculating fetus weight, etc.
Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display.
Puncture lead: Image B: Puncture guide line under B mode.
Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable
Image reverse: left/right, black/white, up/down.
Storage: 128 images permanent storage.
Cine loop: 256 images real time display cycling/one-by-one checked.
Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.
Standard configuration:
10-inch SVGA high resolution monitor
2 probe connector
1 USB
Optional:
- 80 elements R60, 3.5MHz multi-frequency convex probe.
- High frequency linear probe.
- Electronic trans-vaginal probe.
- Rectal probe.
- Video thermal recorder.
- 3D Ultrasound image working station, etc.

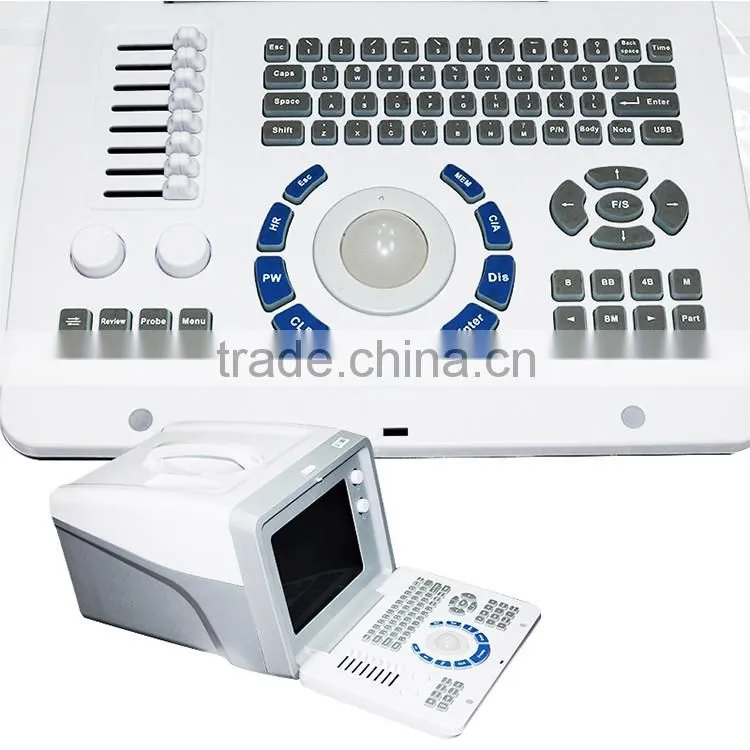

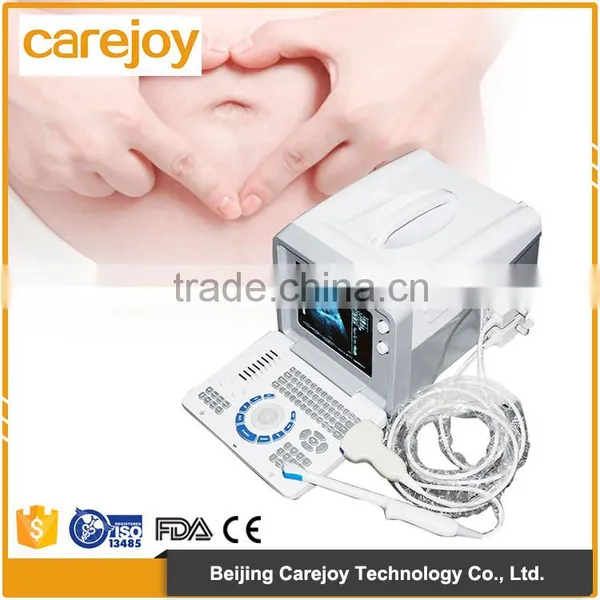

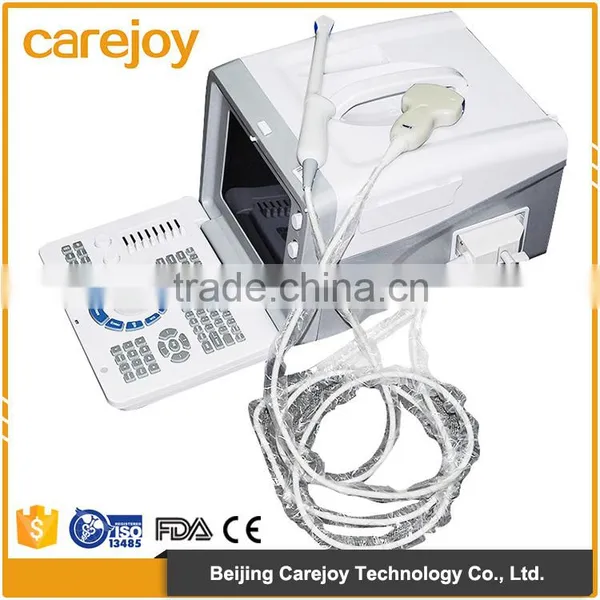

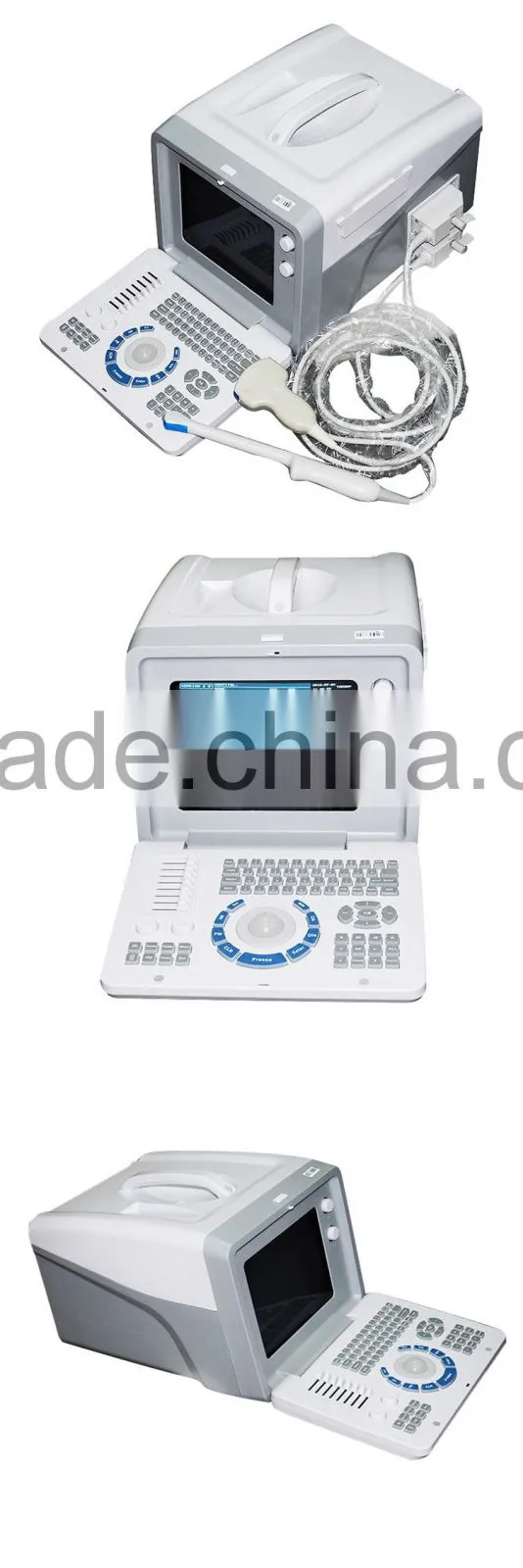

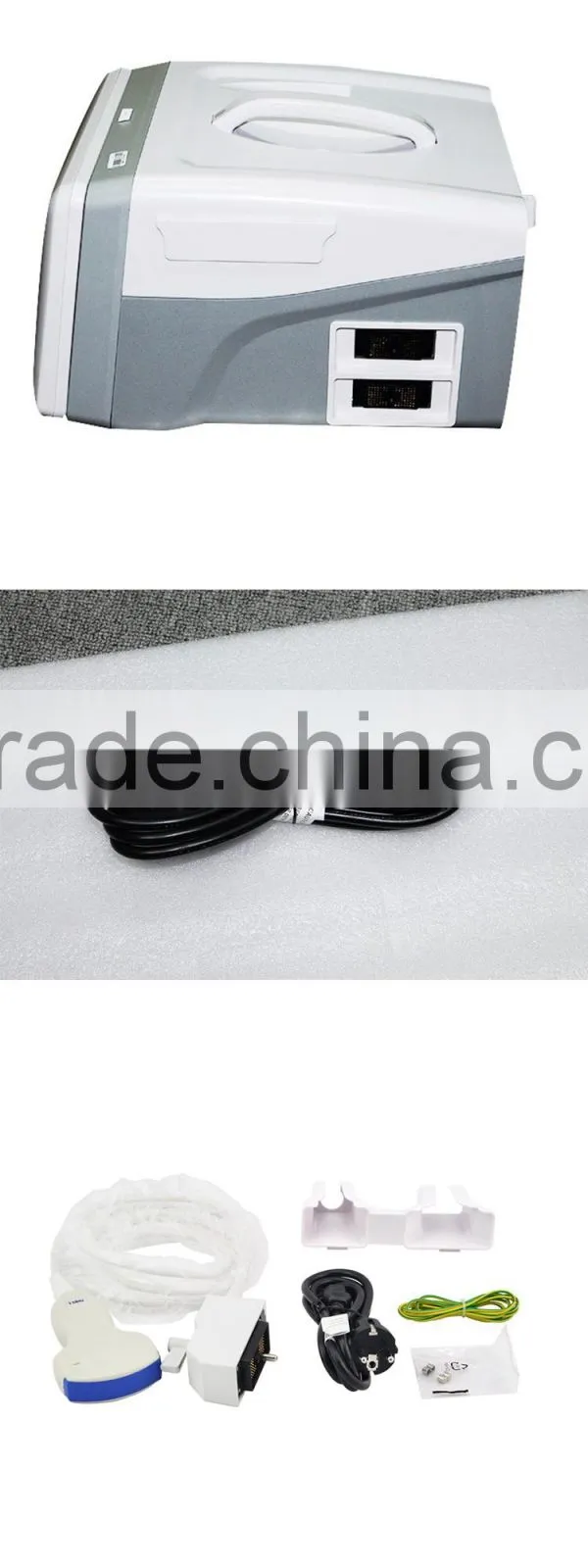

Details show:
Cick the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801116687/Ultrasound_Scanner.html

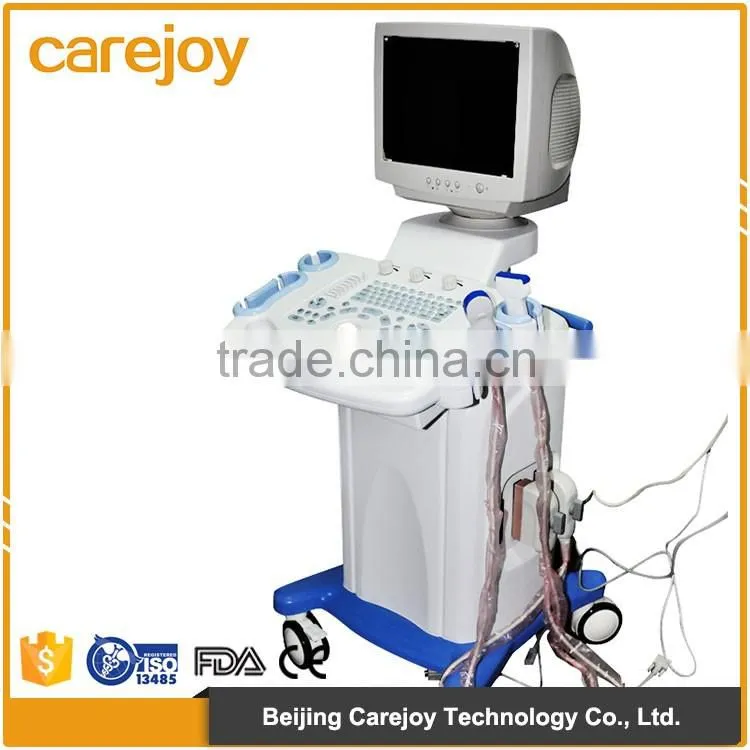

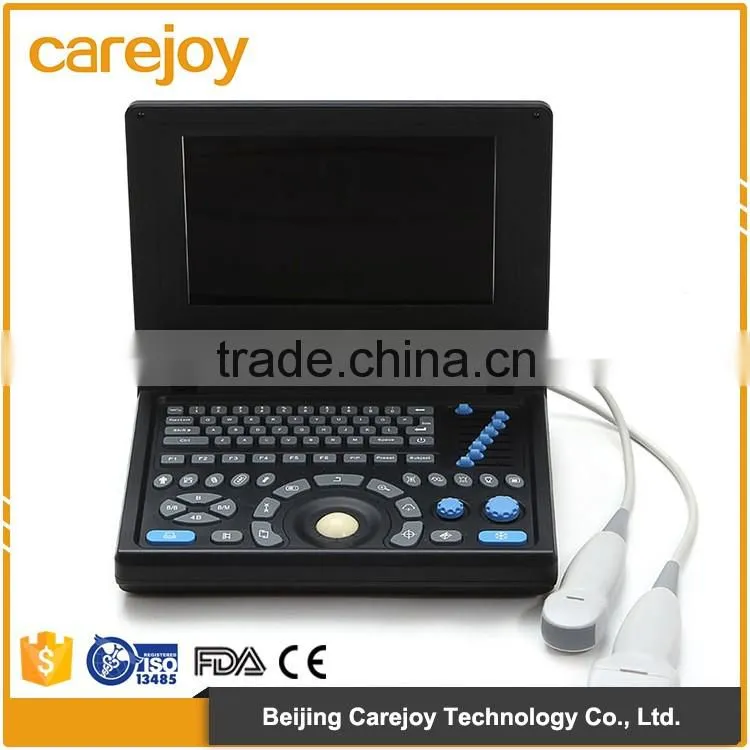

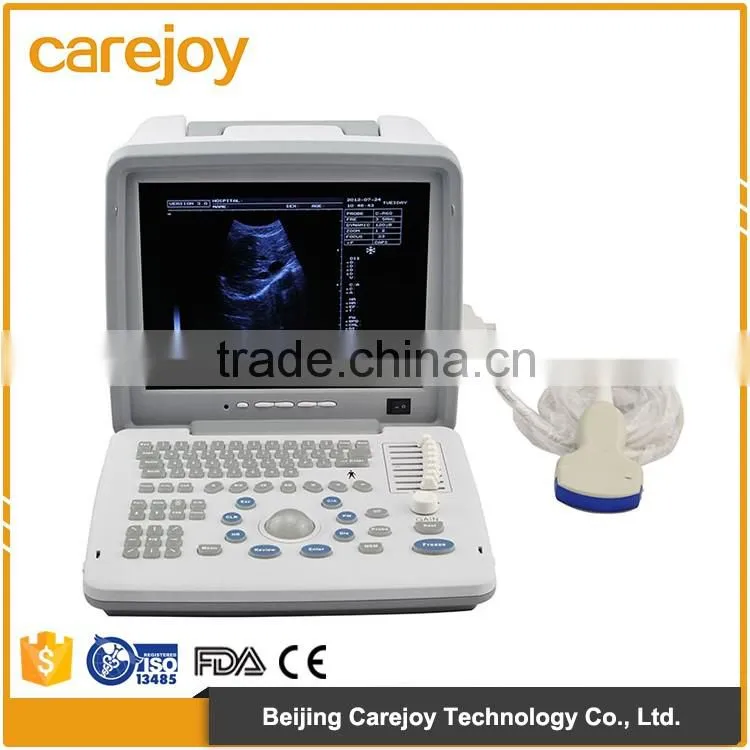

Click these pictures for detalied information:
