Optical Microscope Colposcope for Gynecologic Examination and Diagnosis RCS-700

Optical Microscope Colposcope for Gynecologic Examination and Diagnosis RCS-700 photo-1
US$ 2,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Visual Acuity Examination Apparatus
Brand Name:
OEM
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Visual Acuity Examination Apparatus
Brand Name OEM
Place of Origin Beijing, China
Model Number RCS-700

Colposcope





Product Description



RCS-700 microscope colposcope is a precise optical instruments designed specially for the gynecologic examination and diagnosis. Because the magnification of the microscope colposcope, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly see with the instrument. The correctness of a diagnosis is enhanced significantly. RCS-700 is featured for sharp image, vide field of view, uniform illumination, adjustable brightness and easy operation. It is the essential instrument for gynecology examination.

Specifications:

  • Observation angle: 45°titled binocular observation unit
  • Magnification of eyepiece: 16X
  • Focus length of objective: F=230mm & F=280mm (connection screw: M58x0.75)
  • Working distance: 215mm & 260mm
  • Magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X, 5-step magnification change
  • Total magnification: 2.9X-21.7X
  • Linear field: 11mm-84mm
  • Beam splitter: 50:50 beam splitter
  • Demonstrator: Optional,  total magnification 2.1X-16.4X
  • TV adapter: C-mount 1/3-inch CCD attachable
  • Photo adapter: Optional
  • Fine focus distance: 20mm
  • Balanced arm: Counterweight adjustable
  • Illumination system: Coaxial illumination with cold light source fiber-optic cable, 21V, 150W halogen lamp, brightness adjustable
  • Filter: Green filter with frame, fitted on the objective during using
  • Fiber-optic cable: 1300mm
  • Stand: Short column fitted on the 5-star foundation with 5 jaws





Table of Optical Characteristic for RCS-700A



Item

Mircoscope

Objective focus

Length

F=230mm

F=280mm

Magnification on handwheel

2.5X

1.5X

1X

0.66X

0.4X

2.5X

1.5X

1X

0.66X

0.4X

 Total magnification

21.7X

13.2X

8.7X

5.7X

3.5X

17.8X

10.8X

7.1X

4.7X

2.9X

 Linear field

 11

18.2

27.6

42.1

69

13.4

22

33.6

51.1

84

 Resolution

 86

68

52

35

27

80

63

42

31

22.3

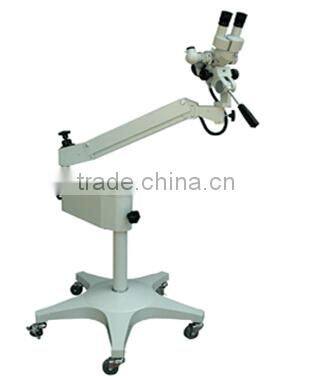

 Optical Microscope Colposcope for gynecologic examination and diagnosis RCS-700
