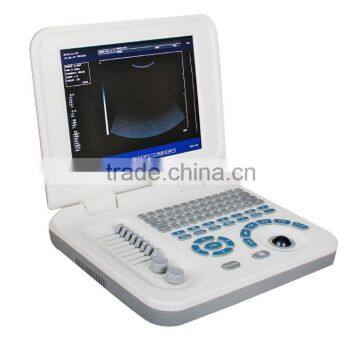

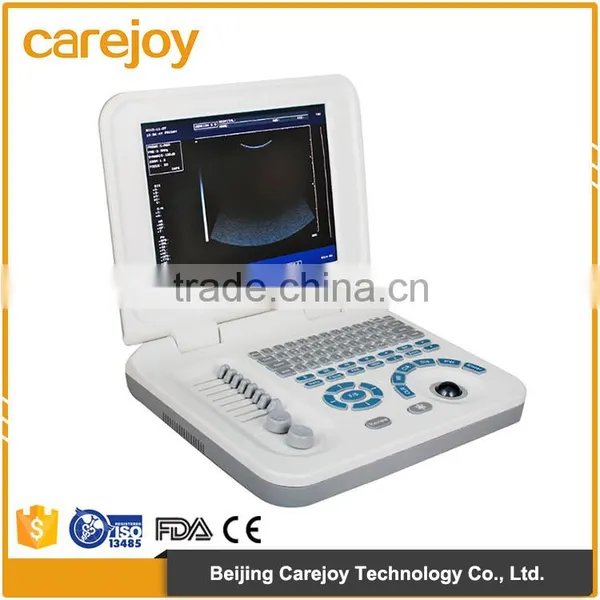

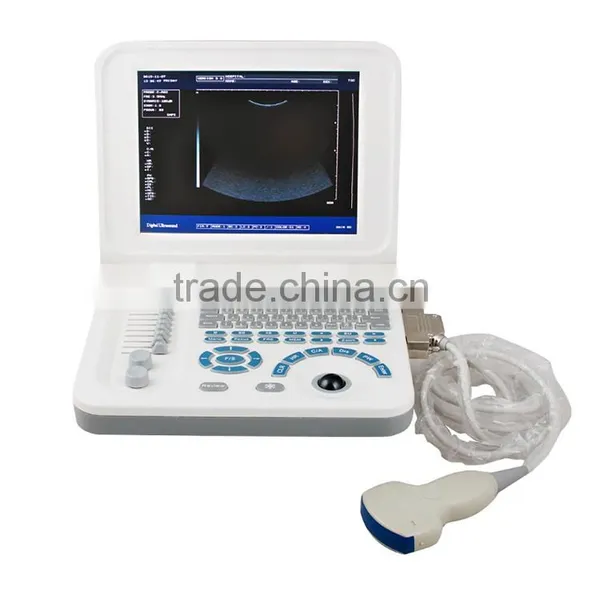

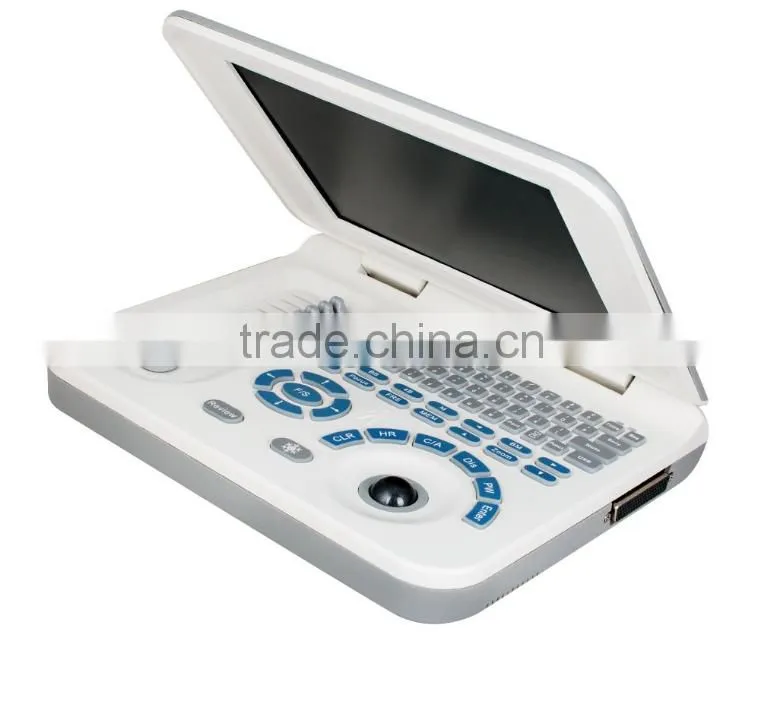

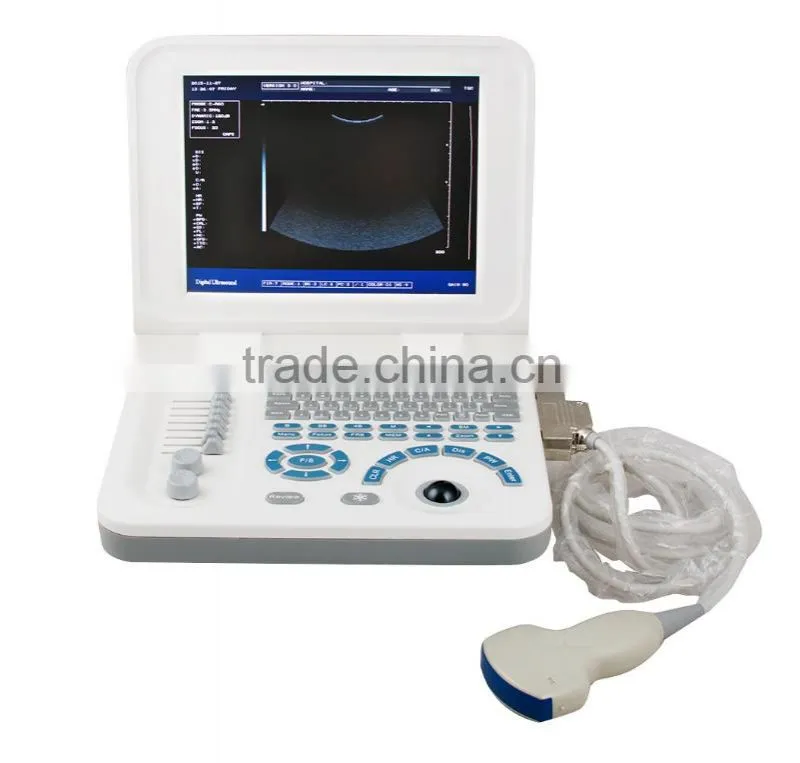

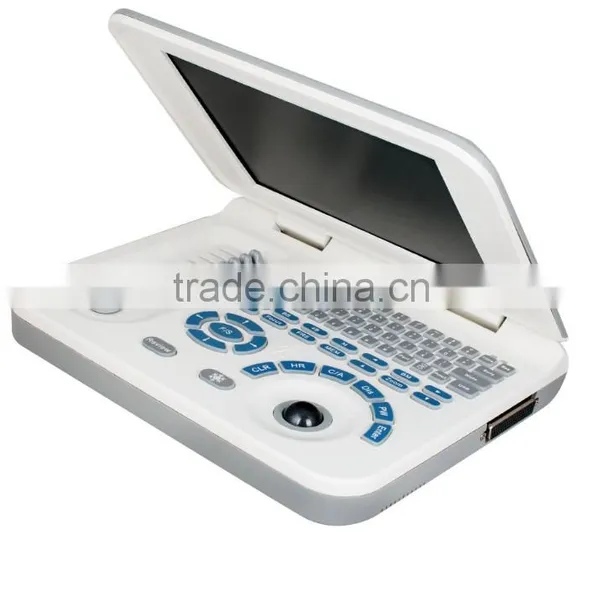

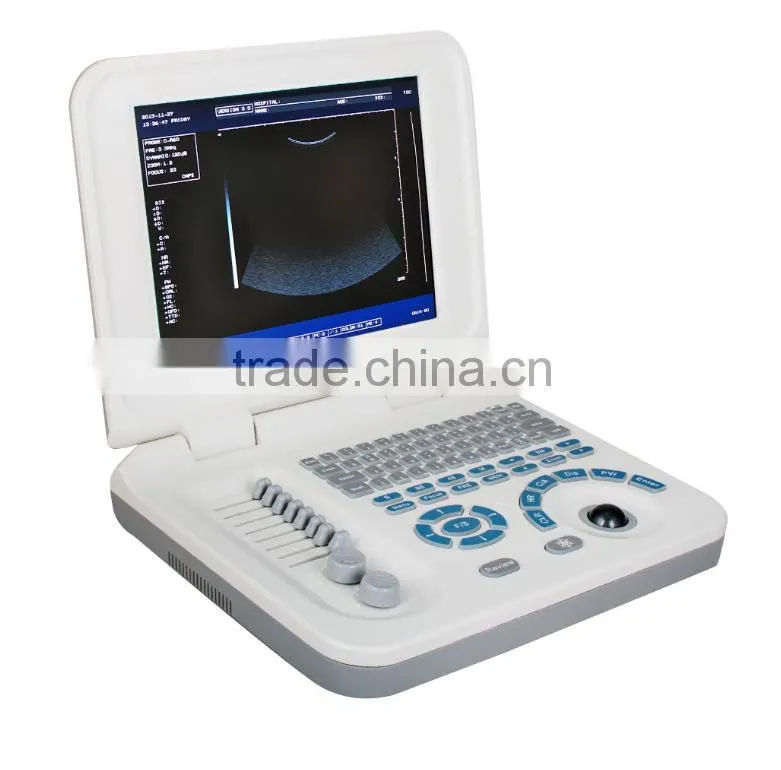

Ultrasonic, Optical, Electronic Equipments Laptop Portable B pc based ultrasound scanner
Specification for Laptop Ultrasound Scanner:
Scan pattern: electron convex array scanning

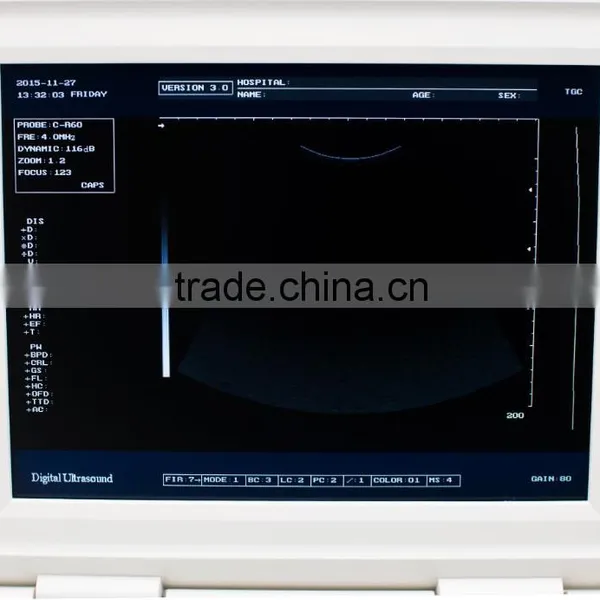

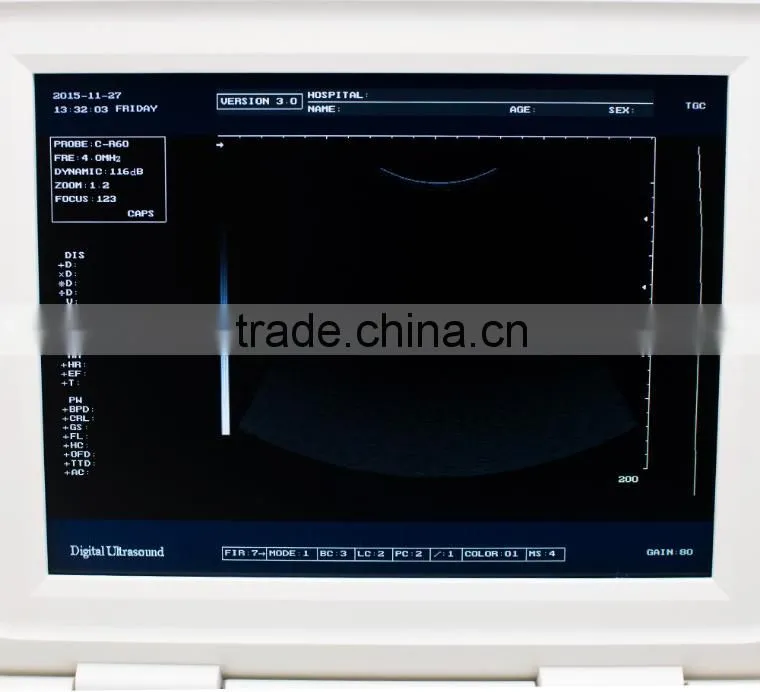

Display mode: B, B/B, 4B, B+M, and M
Image Magnification: x2.0
Dynamic range: 0~120dB adjustable.
Focus position: dynamic digital electron focusing point-by point.
Manu function: 8 types of γ correction, , line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc.
Frequency conversion: T35R60GZ convex array probe, 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz
T65R13GZ cavity probe, 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL,etc), expected date of confinement and so on.
Annotation function: hospital name, patient’s name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display;
Puncture guide:The puncture guide line can be displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image polarity: left/right, black/white and up/down reverse.
Capacity cine loop: 256 consecutive images can be memorized successively when the real-time is displayed.
Image playback: series playback or check one by one
Permanent storage: 128 images
Output interface: SVGA video output offers connection to SVGA color display;
PAL video output offers connection to PAL display, video image recorder and image workstation, etc.
USB port.
Main Technical Indexes:
Probe: 80-element 60R
Probe frequency: 3.5MHz
Scan depth: ≥180mm
Lateral resolution: ≤2mm (depth≤80mm)
≤3mm (80< depth≤130mm)
Axial resolution: ≤1mm (depth≤80mm)
≤2mm (80< depth≤130mm)
Blind area:≤3 mm
Geometry position precision: horizontal≤5%
vertical≤5%
Monitor: 10.4 inch SVGA mode HR LCD
Capacity cine loop: 256
Power supply: AC 220V±22V 50Hz
Input power: ≤ 300VA
Running hours: ≥8h
Packing list:
1×Main Unit
1×3.5MHZ convex array probe
1×Power adapter

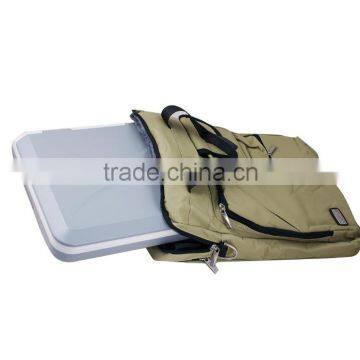

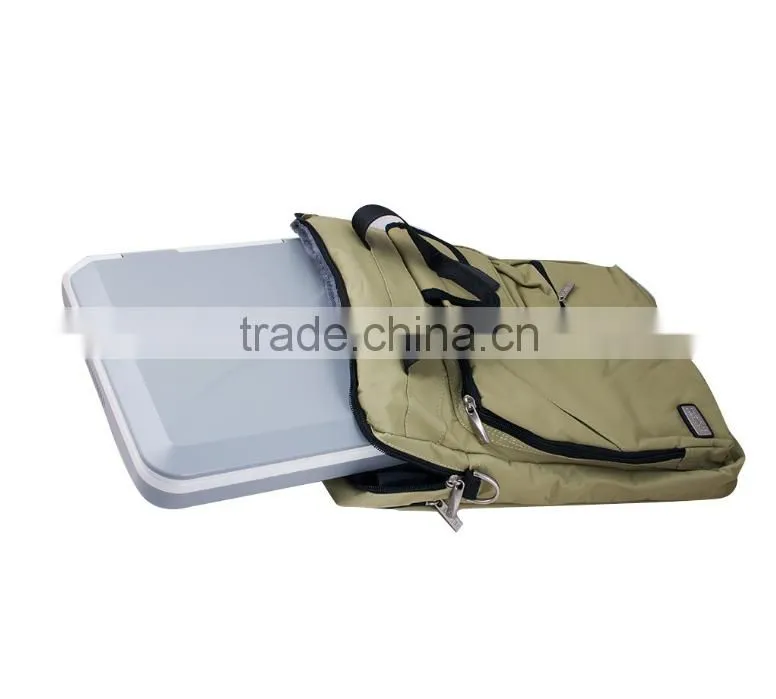

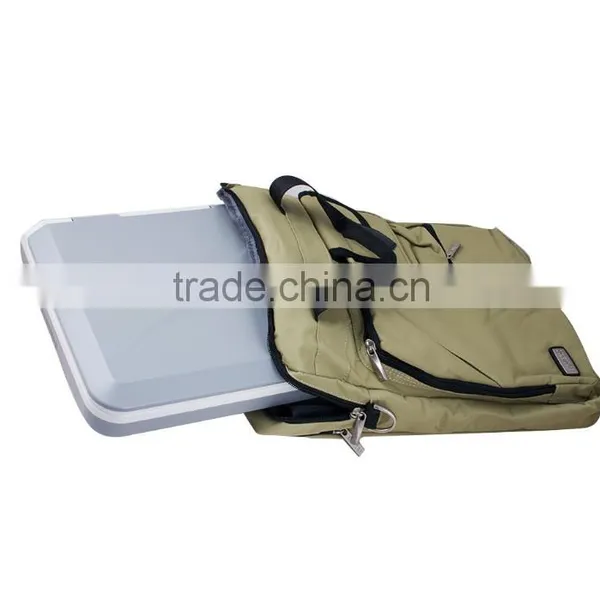

1×Carry bag
1×User Manual
Click the picture for more information:
Martin
Beijing CareJoy Technology Co., Ltd.
Our website:
Tel: 0086-010-82125963
Skype: martin101901
Email : martin.she(@)
Phone/Whatsapp: 0086 17701221019
Beijing Carejoy Technology Co., Ltd. (Carejoy) is a professional manufacturer & distributor for high-tech medical equipments for more than 10 years.
Carejoy aims to provide the cost-effective, reliable performance products. By collaborating with famous universities and organizations, the company has designed and produced several types medical equipments in China market. The quality management system of Carejoy is ISO13485 certified. Our products are also CE certified by MedCert Germany CE 0482. Carejoy has a considerable market share in China domestic market and a growing increase in international market.
Carejoy aims to build good business relationships with more international distributors and customers sincerely. Carejoy assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid & effective customer service.
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
