Microscope Colposcope
Introduction:

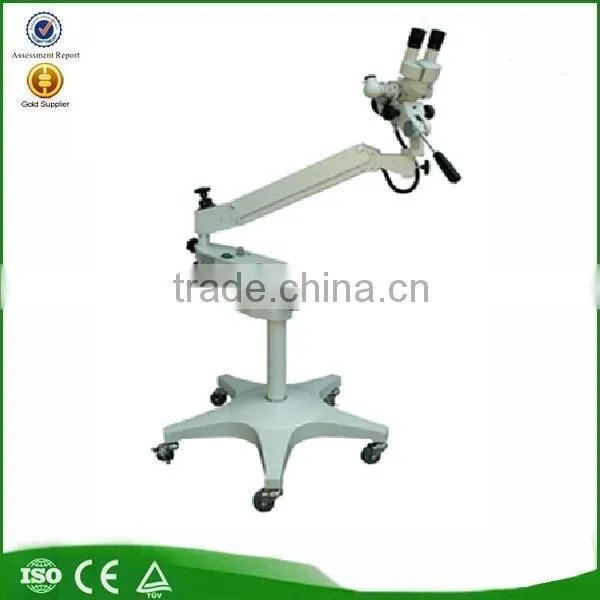

RCS-700 microscope colposcope is a precise optical instruments designed specially for the gynecologic examination and diagnosis. Because the magnification of the microscope colposcope, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly see with the instrument.
Specifications:
Observation angle: 45 titled binocular observation unit
Magnification of eyepiece: 16X
Focus length of objective: F=230mm & F=280mm (connection screw: M58x0.75)
Working distance: 215mm & 260mm
Magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X, 5-step magnification change
Total magnification: 2.9X-21.7X
Linear field: 11mm-84mm
Beam splitter: 50: 50 beam splitter
Demonstrator: Optional, total magnification 2.1X-16.4X
TV adapter: C-mount 1/3'' CCD attachable
Photo adapter: Optional
Fine focus distance: 20mm
Balanced arm: Counterweight adjustable
Illumination system: Coaxial illumination with cold light source fiber-optic cable, 21V, 150W halogen lamp, brightness adjustable
Filter: Green filter with frame, fitted on the objective during using
Fiber-optic cable: 1300mm
Stand: Short column fitted on the 5-star foundation with 5 jaws
|
Table of Optical Characteristic for RCS-700A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
