CE & ISO approved Electronic digital video Colposcope on sale
RCS-500: SONY Camera 830,000 pixels
Work with Laptop & Desktop
Working Principle:
RCS-500 Digital Video Colposcope is applicable to detect pathological change in Vulva, vagina and the cervix, filtering cervix cancer by fluorescence indirectly, and images management.
Application:
For clinical detection of pathological changes in vulva, vagina and cervis, filtering cervis cancer by fluorescence indirectly and images management.
Feature of Performance:
- The outlook is fashionable and convenient.
- We adopt the color digital CCD camera of high resolution and clarity. (Sony)
- The Colposcope is the sole dismountable light source, which has been got the patent.
- Bulbs adopt supper cold LED light source whose diameter is 3 mm. And in one light source there are 30 bulbs.

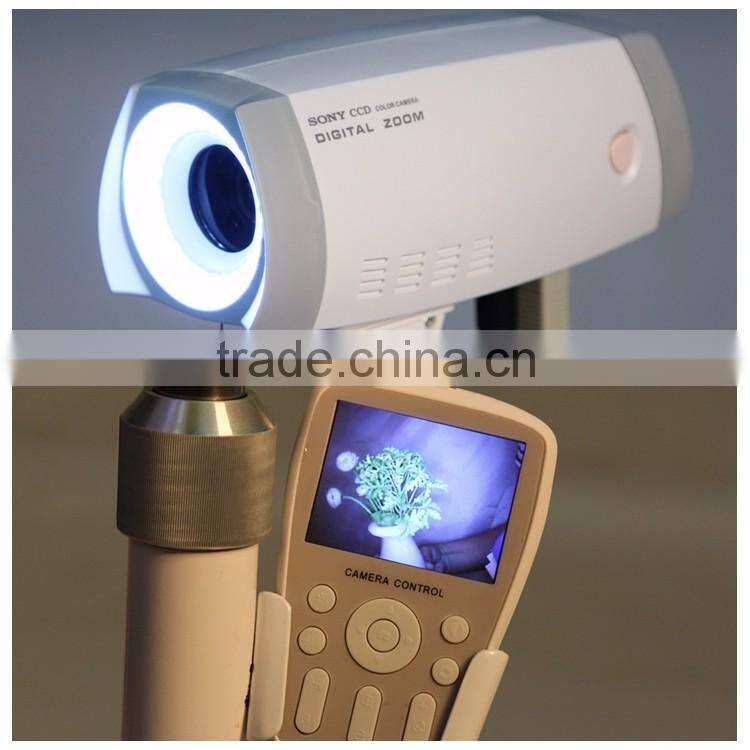

- There are freeze, filter, zoom in, zoom out, white balance button on the top of the camera for the speedy automatic function.
- Professional green-filter technique
- Image freeze
- White balance
- Auto focus
- Timing of acetic acid and iodine reaction tests
- Powerful image software and workstation system
Feature of Software:
- Capacity of freezing and storing static images continuously and a maximum of 99 images available for reviewing simultaneously in scroll.
- Capacity of cine loop and record continuously for different frequencies dynamic image in sampling.
- Capacity of comparison of 4 pictures in the screen, multi-orientation and dynamic consultation, copy, freeze, and other function.
- Supply hundreds of pathological reference image. Can help doctor compare the pathology and make the diagnoses.
- Need not be inputted because of abundant diagnosis information
- Capacity of internet report, and transmit the data through the internet to make an long-distance consultation and share of the information
- Color image report in multi-formats and freely input information to make the user template
- Tens of image enhanced functions to improve the checking rate of micro-focus
- Sole Filter function to make sure to see the vein clearly with less loss of the light.
- Easy operating software with icon, which can freeze and store 99 images consecutive and multi-orientation and dynamic consultation
Specification:
CCD | 1/4 Super HAD CCD |
Pixels | ≥830,000 pixel |
Illumination (min): | ≤0.01Lux |
Lens: | Sony 18 times focus |
Resolution | ≥480+ lines |
Light source | 30-point ringed LED, lili-white, super bright, cool, parallel, shadowless, 100, 000 hours longevity |
Focus | 10mm ~400mm |
Zoom magnification | Optical ≥54X, Eelectronical ≥12X |
Collection model | Electronic collection |
Depth of field | 5-200mm |
Focalizing | Auto/Manual, quick |
Signal-to-Noise | ≥52 db |
Color filter | Green |
Image collection | Y |
Cineloop | Y |
Output port of the image | -Video/PAL/NTSC |
Green Filter | Digital filter based on CCD imaging |
Eliminate polarization | Y |
Field of vision | Φ=2.5-320mm |
Software package | Y |
Operating system | Windows 2000, XP, VISTA |
Standard configuration:
- Image capture system
- Image control system
- Bracket
- light source
- Software
- Plastic packing case
Optional configuration:
- Foldable trolley
- PC: desktop or latptop
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
