Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved

Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved thumbnail-1
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved thumbnail-2
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved thumbnail-3
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved thumbnail-4
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved photo-1
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved photo-2
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved photo-3
Digital Video Electronic Colposcope RCS-500 SONY Camera CCD 800,000 Pixels With CE*ISO Approved photo-4
US$ 100 - 1,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Visual Acuity Examination Apparatus
Brand Name:
Carejoy
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Visual Acuity Examination Apparatus
Brand Name Carejoy
Place of Origin Beijing, China
Model Number RCS-500





Product Description

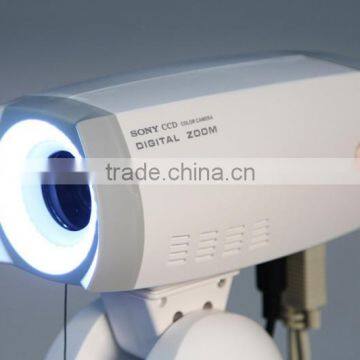

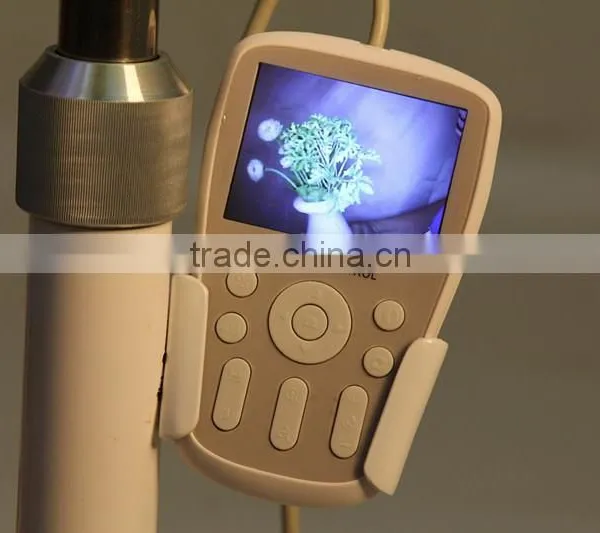

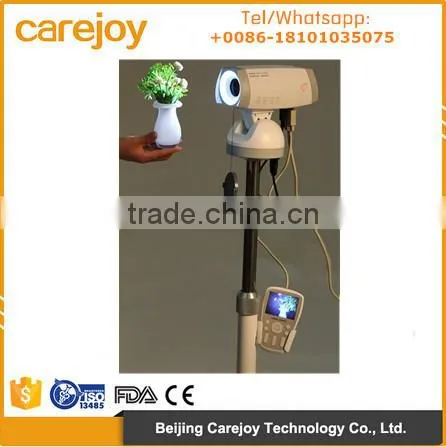

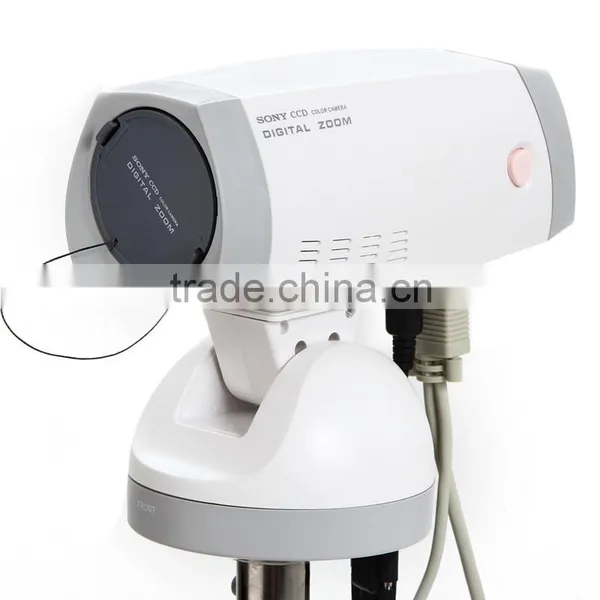

Electronic Colposcope





RCS-500: SONY Camera 800,000 pixels



Work with Laptop & Desktop



Working Principle:



RCS-500 Digital Video Colposcope is applicable to detect pathological change in Vulva, vagina and the cervix, filtering cervix cancer by fluorescence indirectly, and images management.



Application:



For clinical detection of pathological changes in vulva, vagina and cervis, filtering cervis cancer by fluorescence indirectly and images management.



Feature of Performance:



  • The outlook is fashionable and convenient.
  • We adopt the color digital CCD camera of high resolution and clarity. (Sony)
  • The Colposcope is the sole dismountable light source, which has been got the patent.
  • Bulbs adopt supper cold LED light source whose diameter is 3 mm. And in one light source there are 30 bulbs.
  • There are freeze, filter, zoom in, zoom out, white balance button on the top of the camera for the speedy automatic function.
  • Professional green-filter technique
  • Image freeze
  • White balance
  • Auto focus
  • Timing of acetic acid and iodine reaction tests
  • Powerful image software and workstation system



Feature of Software:



  • Capacity of freezing and storing static images continuously and a maximum of 99 images available for reviewing simultaneously in scroll.
  • Capacity of cine loop and record continuously for different frequencies dynamic image in sampling.
  • Capacity of comparison of 4 pictures in the screen, multi-orientation and dynamic consultation, copy, freeze, and other function.
  • Supply hundreds of pathological reference image. Can help doctor compare the pathology and make the diagnoses.
  • Need not be inputted because of abundant diagnosis information
  • Capacity of internet report, and transmit the data through the internet to make an long-distance consultation and share of the information
  • Color image report in multi-formats and freely input information to make the user template
  • Tens of image enhanced functions to improve the checking rate of micro-focus
  • Sole Filter function to make sure to see the vein clearly with less loss of the light.
  • Easy operating software with icon, which can freeze and store 99 images consecutive and multi-orientation and dynamic consultation



Specification:



CCD

1/4  Super HAD CCD

Pixels

≥830,000 pixel

Illumination (min):

≤0.01Lux

Lens:

Sony 18 times focus

Resolution

≥480+ lines

Light source

30-point ringed LED, lili-white, super bright, cool, parallel, shadowless, 100, 000 hours longevity

Focus

10mm~400mm

Zoom magnification

Optical ≥54X, Eelectronical ≥12X

Collection model

Electronic collection

Depth of field

5-200mm

Focalizing

Auto/Manual, quick

Signal-to-Noise

≥52 db

Color filter

Green

Image collection

Y

Cineloop

Y

Output port of the image

-Video/PAL/NTSC

Green Filter

Digital filter based on CCD imaging

Eliminate polarization

Y

Field of vision

Φ=2.5-320mm

Software package

Y

Operating system

Windows 2000, XP, VISTA



Standard configuration:



  • Image capture system
  • Image control system
  • Bracket
  • light source
  • Software
  • Plastic packing case



Optional configuration:



  • Foldable trolley
  • PC: desktop or latptop
