Home > Health & Medicine > Medical Equipment > Medical Diagnosis Equipment > Beijing High Resolution Thermal Printing System 3.8 Inch LCD Three Channel Digital ECG Machine for Sale
Beijing High Resolution Thermal Printing System 3.8 Inch LCD Three Channel Digital ECG Machine for Sale
US$ 100 - 499
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Blood Testing Equipments
Brand Name:
OEM
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Class I 5 Inch Color LCD Display 12-lead ECG Signal Portable ECG Machine From ChinaUS$ 100 - 499MOQ: 1 Set -
CE Approved Three Channel Color LCD Display 12-lead Built ECG Machine in USB/RS232 InterfaceUS$ 100 - 500MOQ: 1 Set
-
Hospital 7 Inch Color Graphic LCD Display Portable 3 Channels 12 Lead Ecg MachineUS$ 100 - 499MOQ: 1 Set
-
Medical Equipment TFT Color LCD Display High Resolution Wide Touch Screen 3-Channel ECG Machine With Standard 12 LeadsUS$ 300 - 550MOQ: 1 Set
-
Hot Selling Portable 6 Channel 7 Inch Touch Screen Digital ECG Machine Ekg MonitorUS$ 300 - 600MOQ: 1 Set
Type
Blood Testing Equipments
Brand Name
OEM
Place of Origin
Beijing, China
Model Number
EKG-903

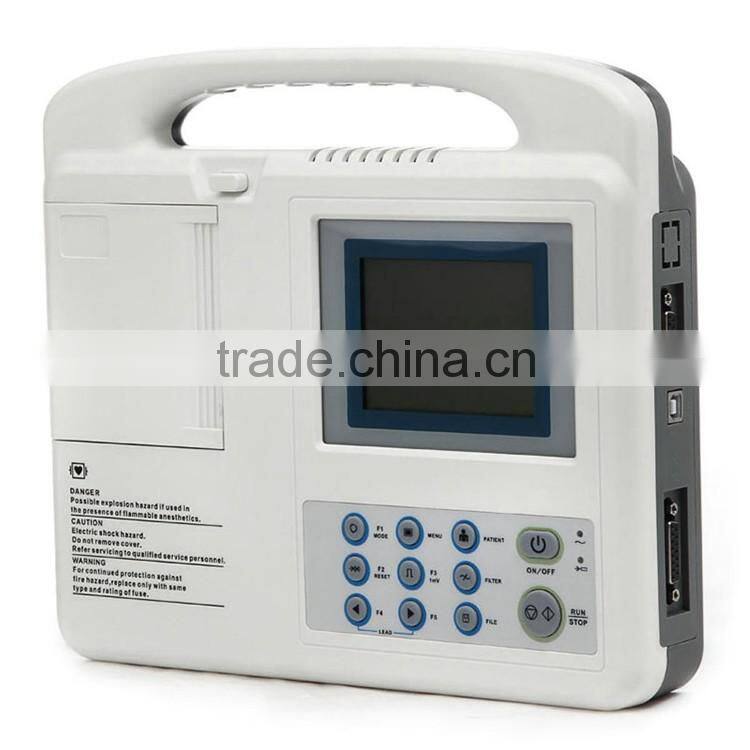

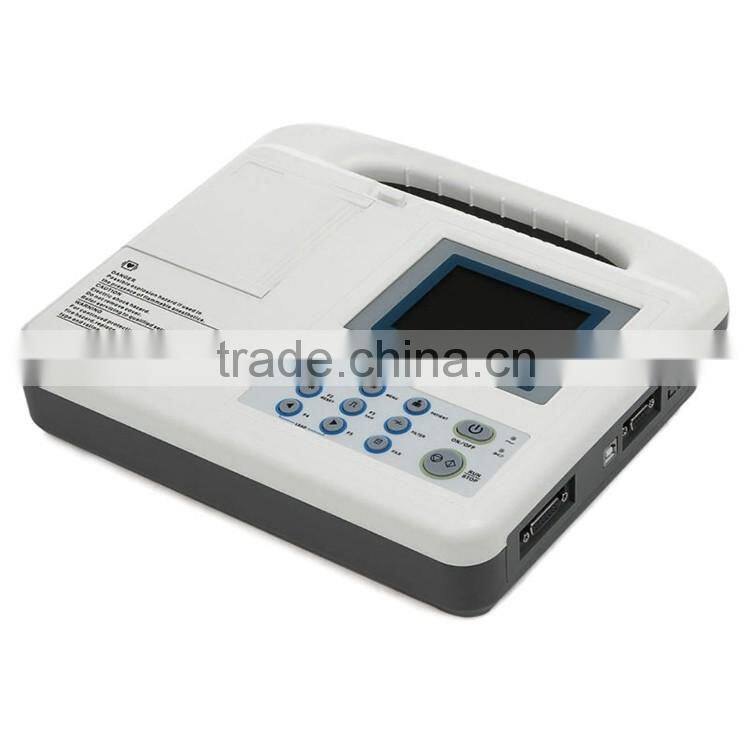

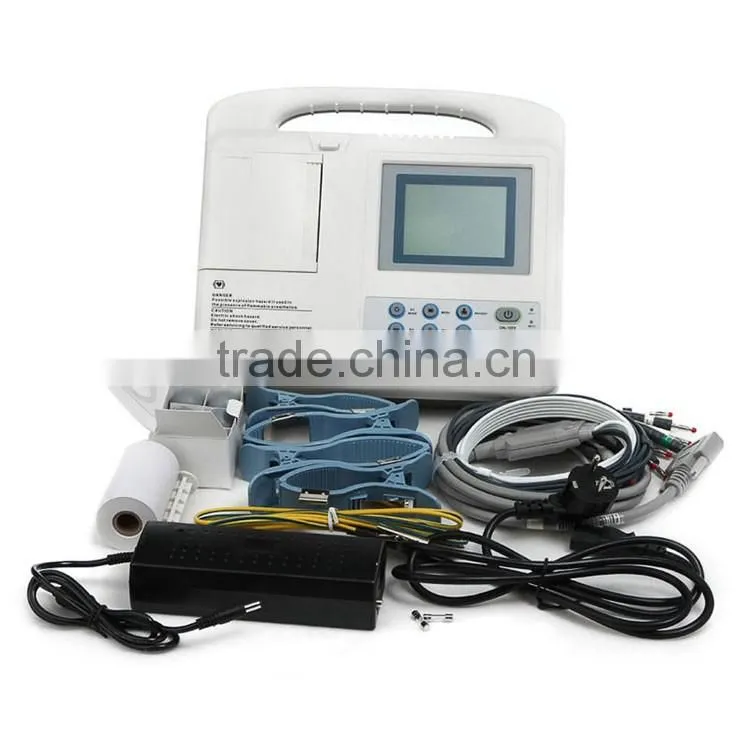

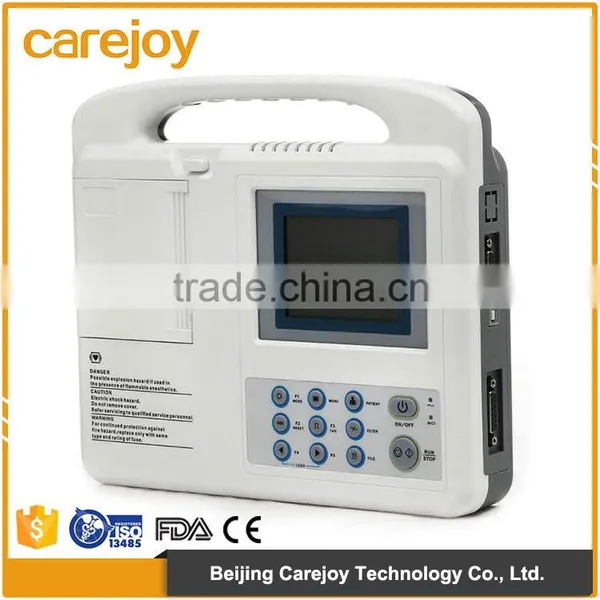

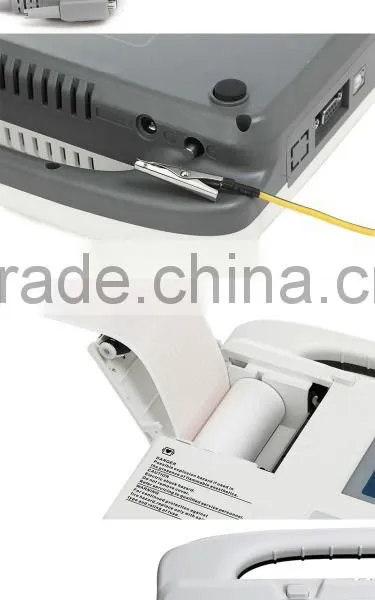

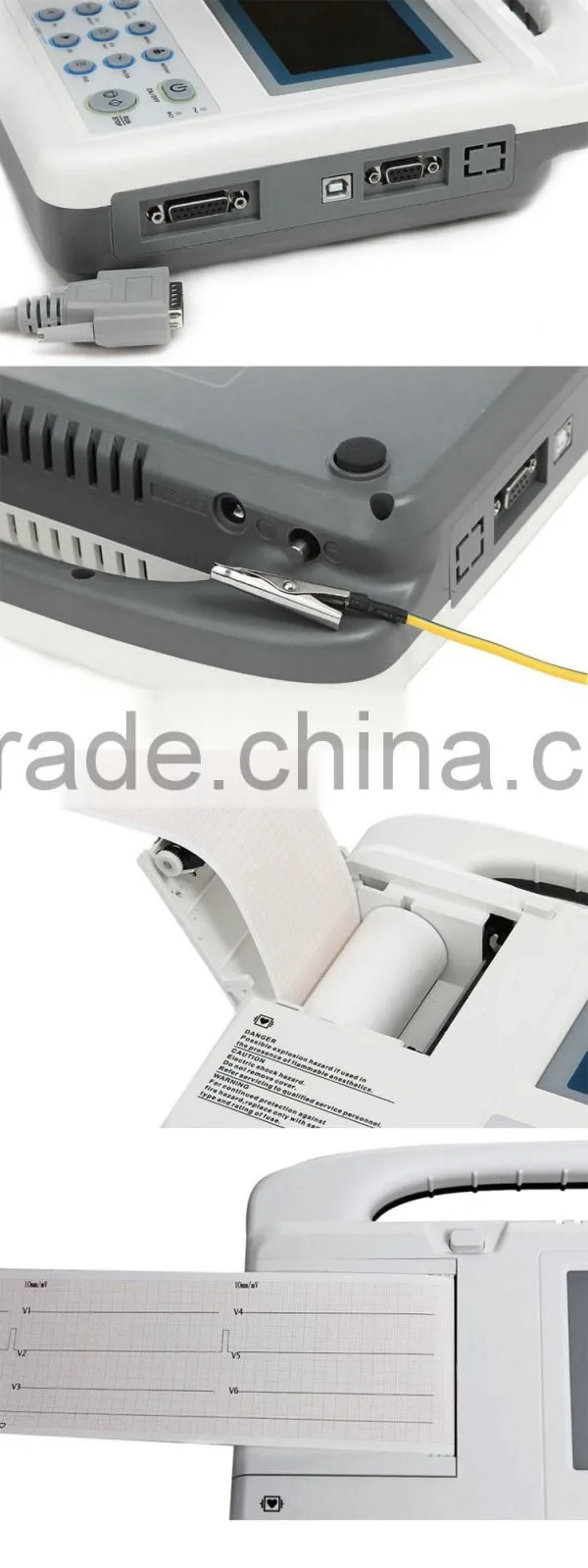

Beijing High resolution thermal printing system 3.8 inch LCD Three channel digital ECG machine for sale
Product Description
Features:
- Three channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Multiple printing modes
- 80mm 3-ch recording with rhythm lead

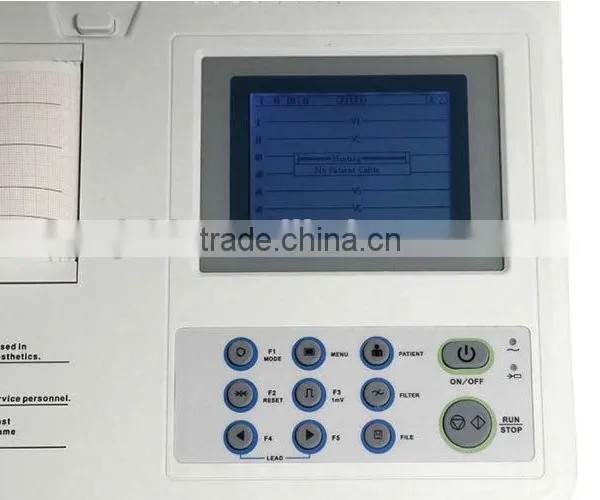

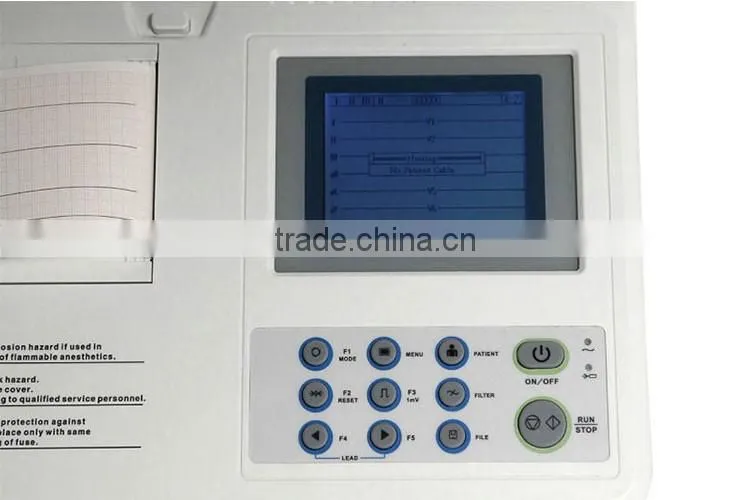

- 320x240 graphic, 3.8 inch LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight with handle, convenient for use
Specification:
| Safety standard | IEC60601-1 class I, type CF |
| Lead | Standard 12 Leads, Lead change automatically |
| Resolution | 12 bit / 1000Hz |
| Operation mode | Manual/Auto/Analysis modes |
| Filter | AC, EMG filter |
| Drift filter | Anti-drift system |
| Input circuit | Floating; Protection against Defibrillator effect |
| CMRR | >100dB (with filter) |
| Input circuit current | <0.1μA |
| Input impedance | ≥50ΜΩ |
| Calibrating voltage | 1mV±3% |
| Frequency response | 0.05Hz~160Hz (IEC) |
| Time constant | >3.2seconds |
| Noise level | ≤15Vp-p |
| Threshold | ≤20μV |
| Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
| Recording system | High resolution thermal printer |
| Paper speed | 25, 50mm/s±3% |
| Recording paper | 80mmx20m, roll/fold paper |
| Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 14.4V rechargeable NI-Ion battery (2200mAh) | |
| LCD display | 320x240 graphic, 3.8 inch LCD |
| Dimensions | 285×265×72mm |
| Weight | 2.5kg |
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
Hot Sale
Click the picture for detalied information:
Contact Information
Company Information
Our Services
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
