Type Blood Testing Equipments
Brand Name CareJoy
Place of Origin Beijing, China
Model Number EKG-1212A

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly

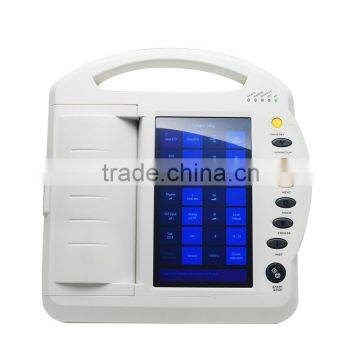

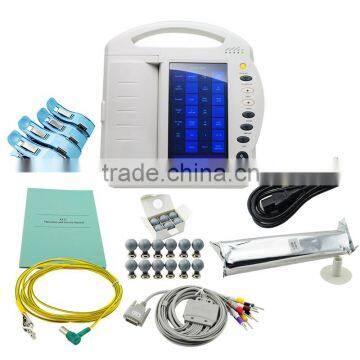

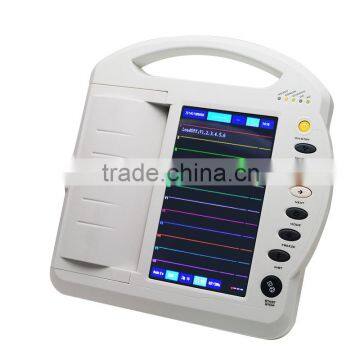

New style Portable 12 channel Touch Screen ECG machine




2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly





Product Description

 Features:

- 12 channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.
- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Alphabetic keyboard for patient info.
- Multiple printing modes.
- 320x240 graphic, 10 inch LCD.
- High resolution thermal printing system.
- High resolution digital filter.
- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight, portable, convenient for use.





Specification:

Safety standard

IEC60601-1 class I, type CF

Lead

Standard 12 Leads, Lead change automatically

Resolution

12 bit / 1000Hz

Operation mode

Manual/Auto/Analysis modes

Filter

AC, EMG filter

Drift filter

Anti-drift system

Input circuit

Floating; Protection against Defibrillator effect

CMRR

>100dB (with filter)

Input circuit current

<0.1μA

Input impedance

≥50ΜΩ

Calibrating voltage

1mV±3%

Frequency response

0.05Hz~160Hz (IEC)

Time constant

>3.2seconds

Noise level

≤15Vp-p

Threshold

≤20μV

Sensitivity

Auto 2.5, 5, 10, 20, 40mm/mV

Recording system

High resolution thermal printer

Paper speed

25, 50mm/s±3%

Recording paper

210/216mmx20m, roll/fold paper

Power supply

AC: 220V / 110V, 50/60Hz

DC: 14.4V rechargeable NI-Ion battery (4400mAh)

LCD display

320x240 graphic, 10 inch LCD

Dimensions

285×265×72mm

Weight

3.8kg





Details show:

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly







Click the link for more styles:

https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html





Contact Information

Martin

Beijing CareJoy Technology Co., Ltd.
Our website:
Tel: 0086-010-82125963
Skype: martin101901
Email : martin.she(@)
Phone/Whatsapp: 0086 17701221019

Company Information

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly

Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.

Packaging & Shipping

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly

2016 new style Portable 12 channel Touch Screen ECG machine Price with ISO 9001 and 13485 with warranty of China factory-Shelly
