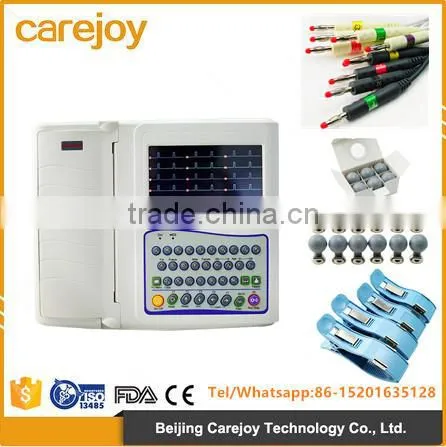

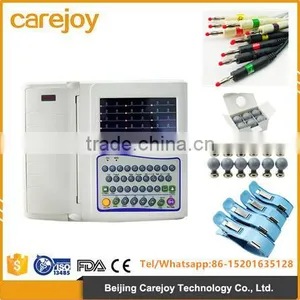

Hot Selling ECG EKG 12-channel Electrocardiograph

Name: Hot Selling ECG EKG 12-channel Electrocardiograph
Brand: Carejoy
SKU: 136264437
Availability: InStock

US$ 699 - 899 MOQ: 1 Set

Key Specifications

Type:

Visual Acuity Examination Apparatus, Portable

Brand Name:

Carejoy

Place of Origin:

Beijing, China

Beijing Carejoy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing or Tianjiin

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Carejoy

Place of Origin Beijing, China

Model Number EKG-1212F

Hot Selling ECG EKG 12-channel Electrocardiograph

Product Description

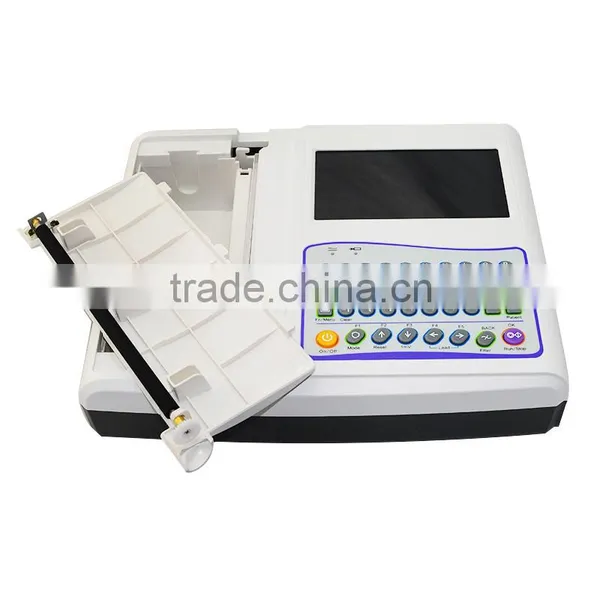

ECG Machine

Details

- 1024*600 10 inch color touchscreen display

- Twelve channel ECG machine with interpretation

- 12-lead ECG simultaneous acquisition

- Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes

- 12-channel recording with a rhythm lead

- Digital filters eliminate EMG, AC, Baseline Drift interference

- Built in rechargeable Li-ion battery, 2 hours continuous working

- Adapt 110-240V, 50/60Hz AC power supply

- 250 patients save/replay

- Built in USB/RS232 interface

Power Supply	100-120V or 220-240V, 50/60Hz or internal rechargeable battery with lifetime of 60 minutes
Safety	Class I, type CF
LCD display	Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously
Leads	12 STANDARD or CABRERA leads
Defibrillation protection	Internal, according to current regulations
Recording modes	Manual, automatic sequential, automatic simultaneous, Rhythm lead selectable
Print Channels	12 channels , Rhythm lead selectable
Writing system	High-resolution thermal printer (8 dots/mm); Horizontal 40 dots/mm
Thermal paper	216mm wide 20M thermal paper in Z-fold packers or in rolls
Paper speed	5 - 6.25 - 10 - 12.5 - 25 - 50mm/s ± 3%
Recording sensitivity	Auto or Manual: 1.25 - 2.5 - 5 - 10 - 20 - 40mm/mV ±3%
Input dynamics	±500 mV @ 0 Hz ± 10 mV in the pass band
Input impedance	50 MΩ DC
Power requirements	AC220V/50Hz
Common-mode rejection	> 90 dB
Frequency response	0.05 to 150 Hz
Time constant	>3.3 s
Data acquisition	12 bits; 1000 samples/sec/channel when printing, filtering and computing
Fuse Specification	2Φ5x20mm
Case storage	250 cases at least, can be stored on external SD card
Patient Cable	standard 10 leads
Resolution	3.125 uV/bit
Filters	Low pass filter off 75 Hz, 100 Hz, 150 Hz
	Muscle filter: 25 or 35 Hz digital filters (-3 dB/oct)
	AC filter: digital notch filters 50 or 60 Hz selectable, - 20 dB or better
	Drift filter: 0.5 Hz high pass linear phase digital filter
Net weight	3.7kg (8.14 lb)
Gross weight	5.2kg (11.44lb)
