Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph

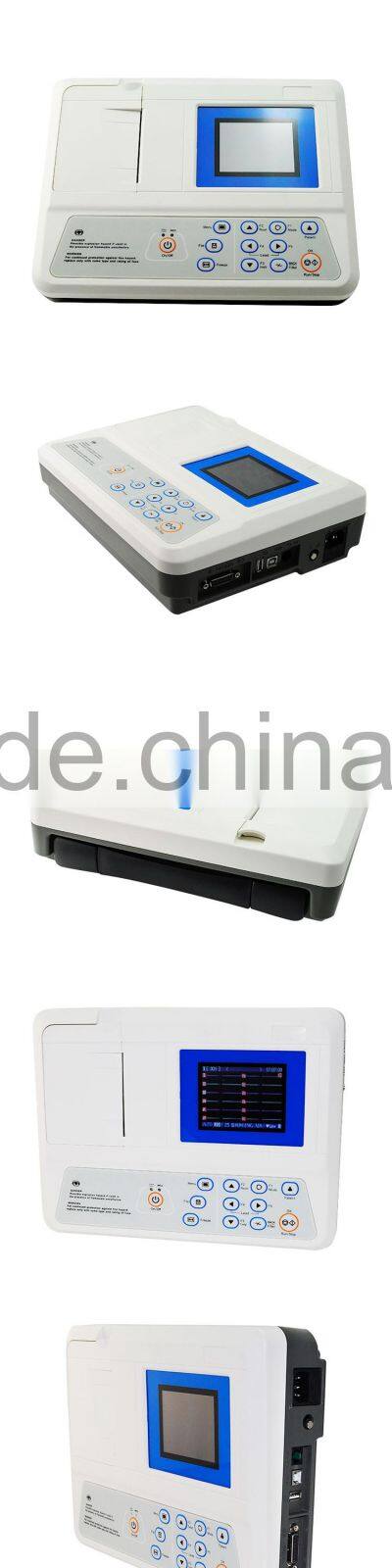

Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph photo-1
Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph photo-2
Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph photo-3
Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph photo-4
Multiple Printing Modes 5 Inch Color LCD Portable Ekg Machine / Electrocardiograph photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other
Brand Name:
Carejoy
Model Number:
EKG-903A
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Type Other
Brand Name Carejoy
Model Number EKG-903A
Place of Origin Beijing, China

 Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph



Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph



Product Description

 ECG Machine  Electrocardiograph

Features:
  • Three channel digital ECG machine with interpretation
  • Simultaneous acquisition of 12-lead ECG signal
  • Manual/Auto/Arrhythmia analysis modes
  • Real time ECG, 20 patients cases
  • Multiple printing modes
  • 80mm 3-ch format recording
  • 5 inch Color LCD
  • High resolution thermal printing system
  • High resolution digital filter
  • Built-in USB or RS232, optional PC-ECG software
  • AC/DC power, built-in rechargeable Ni-MH battery
  • Light weight with handle, convenient for use
Specification:

Safety standard
IEC60601-1 class I, type CF
Lead
Standard 12 Leads, Lead change automatically
Resolution
 12 bit / 1000Hz
Operation mode
Manual/Auto/Analysis modes
Filter
AC, EMG filter
Drift filter
Anti-drift system
Input circuit
Floating; Protection against Defibrillator effect
CMRR
>100dB (with filter)
Input circuit current
<0.1μA
Input impedance
≥50ΜΩ
Calibrating voltage
1mV±3%
Frequency response
0.05Hz~160Hz (IEC)
Time constant
>3.2seconds
Noise level
≤15Vp-p
Threshold
≤20μV
Sensitivity
Auto 2.5, 5, 10, 20, 40mm/mV
Recording system
High resolution thermal printer
Paper speed
25, 50mm/s±3%
Recording paper
112mmx20m, roll/fold paper
Power supply
AC: 220V / 110V, 50/60Hz
DC: 14.4V rechargeable NI-Ion battery (2200mAh)
LCD display
320x240 graphic, 5 inch Color LCD
Dimensions
285×265×72mm
Weight
2.5kg


Multiple printing modes 5 inch Color LCD portable ekg machine / ElectrocardiographMultiple printing modes 5 inch Color LCD portable ekg machine / ElectrocardiographMultiple printing modes 5 inch Color LCD portable ekg machine / ElectrocardiographMultiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph



Click the link for more styles:

https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html

Hot Sale

Click these pictures for detalied information:



Multiple printing modes 5 inch Color LCD portable ekg machine / ElectrocardiographMultiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph



Contact Information

Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph

Company Information

Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph

Multiple printing modes 5 inch Color LCD portable ekg machine / Electrocardiograph

Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.
