OEM 3-lead Color LCD Holter 24-hours recorder System ecg holter monitor with Software-Cardioscope
Description:
1.Holter Monitor System
Version: CardioScape Holter Monitor Software
Functions & Features for Holter Monitor System:
- QRS Templates
Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can be superimposed. Weak signal can be identified such as P wave.
-
Arrhythmia Analysis
VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc. -
HRT (VE Chaos) Analysis
HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF. -
Pacemaker Analysis
Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers. -
HRV (Heart Rate Variability) Analysis
Time domain and Spectral domain HRV analysis, superlower HRV analysis -
Atrial Fibrillation and Atrial Flutter Analysis
Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib. -
OSAS (Obstructive Sleep Apnea Syndrome) Analysis
Using Holter test to detect the OSAS earlier and cost-saving. -
ST Analysis
ST analysis trends, form and support report, identify ischemia location.

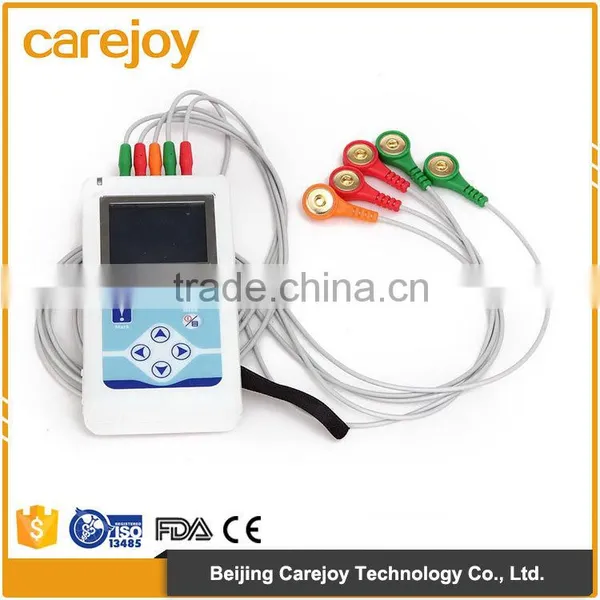

2. Holter Monitor Model: CS-3CL
Features for Holter Monitor:

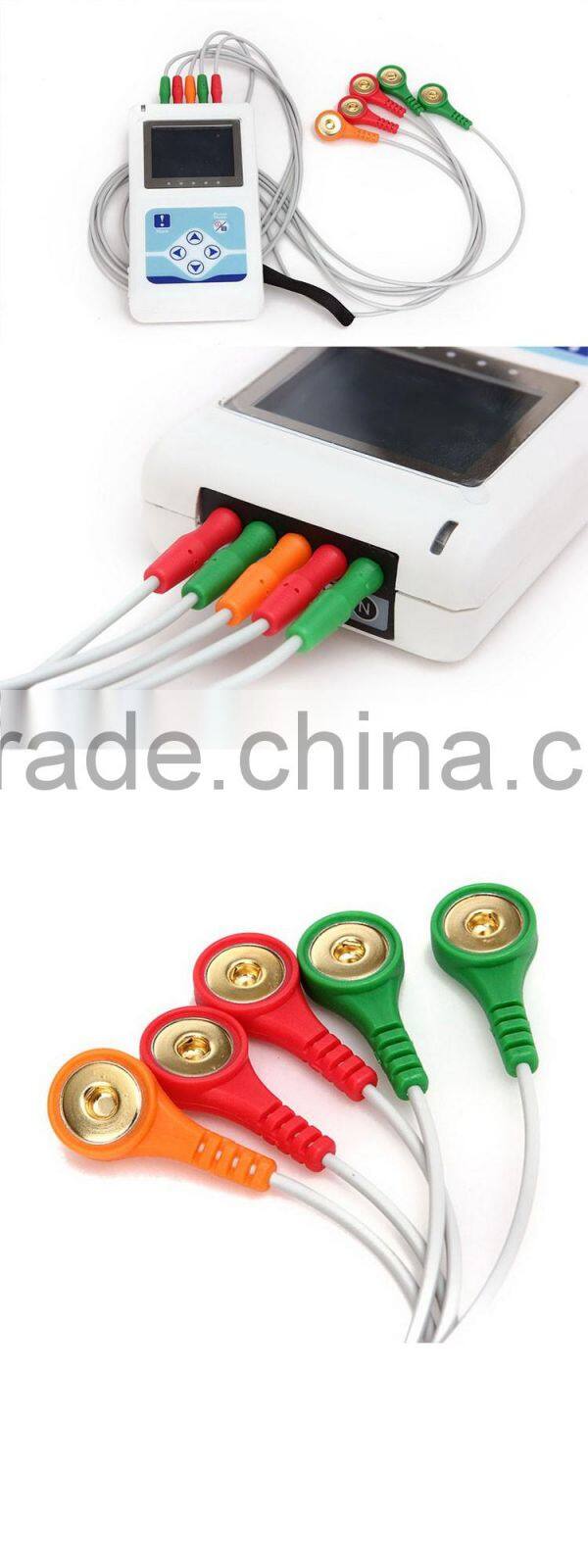

- 3-Channel Color LCD Holter recorder
- Compact size, light weight
- Fully programmable, high Fidelity
- Lower power consumption
- Fast data transfer
- Pacemaker detection
Specification for Holter Monitor:
- Channel: 3 digital recording channels for 12-lead
- Sample rate: 1000Hz
- Resolution: 12 bit sampling
- Frequency response: 0.05-60Hz
- Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
- Storage: 2G built-in flash memory
- LCD display: ECG waveform and lead number

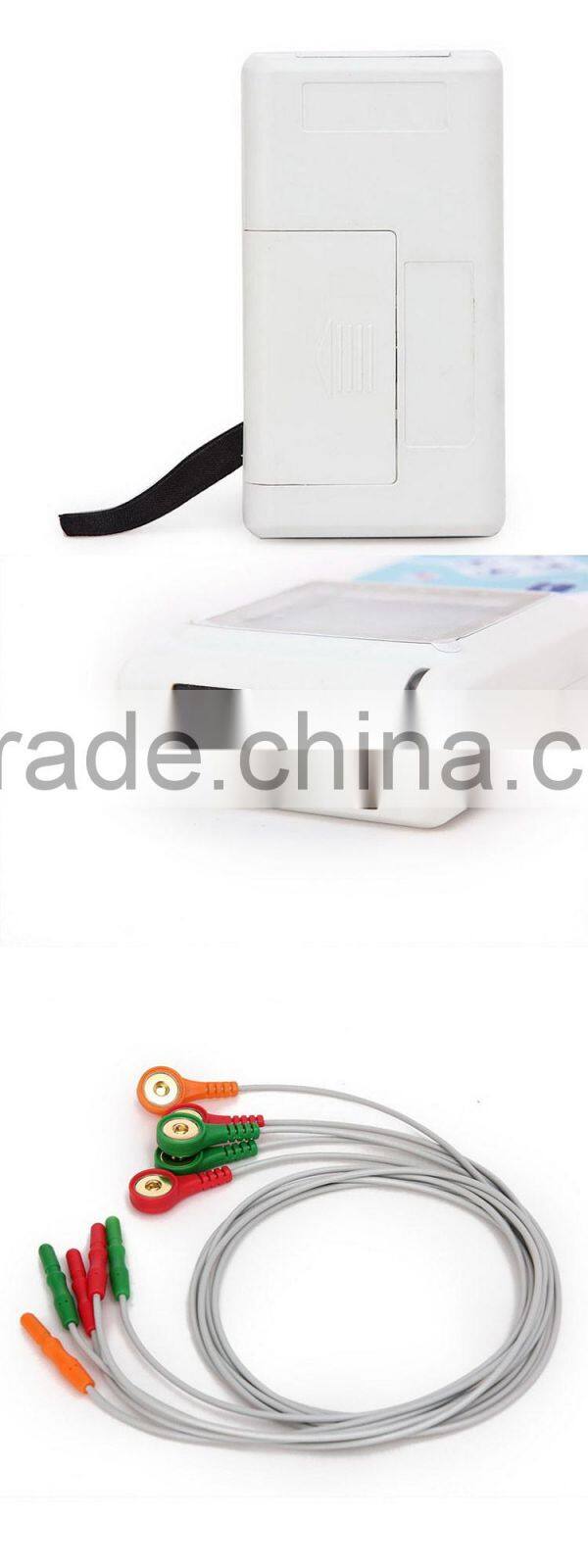

- Lead: 5 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)
- Power: 2 AA size battery
Safety Mode |
IEC60601-1 class I, type CF |
Lead selection |
Automatic and Manual |
Operation mode |
Automatic and Manual |
Input circuit |
Floating |
Calibrating voltage |
1mV ±5% |
Input current |
<100nA |
CMRR |
>103dB |
A/D |
12bit |
Frequency response |
0.05Hz-150Hz |
Filter |
AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance |
±300mV |
Sensitivity setting |
5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level |
≤15Vp-p |
Display |
LCD 160x96, visual size: 34x60 |
Recording system |
Thermal-array printing |
Noise level |
≤15μVp-p |
|
- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- Mini size, hand-held, portable, convenient for doctors’ use anywhere
Click the link for more styles:
https://img13.fr-trading.com/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
