CE&ISO Approved High Quality 12-lead Resting PC Based ECG Machine Computer Software+CardioScape
CardioScape PC-ECG 3.0
Function (8 functions):
- ECG: 12-lead resting PC-ECG with auto interpretation
- VCG: Vector-cardiograph with auto interpretation
- TVCG: Timed Vector-cardiograph
- FCG: Frequency ECG (unique technique to detect ischemia and CAD)
- HFECG: High Frequency ECG
- SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
- QTD: QT Dispersion with chroma map
- HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots
Hardware Features:
- High sampling rate of 1000Hz
- Digital filter system
- Applying anti-baseline-drift technology ensuring the stability of ECG baseline
- Wilson and Frank hookup system
- Meet the international standard of IEC60601-1
- Easy operation and perfect printout
- Diagnosis of coronary heart disease
- Perfect time domain, frequency domain and non-linear HRV analysis
- Perfect ECG database management system
Specification:
- Sample rate: 1000Hz, simultaneous 12 leads recording
- Resolution:12bit
- Power: 5.0V (DC)
- Patient Insulation: 4000V AC
- Defibrillation Protection: Built-in box
- Digital resolution: 2μV
- Frequency response: 0.05-250 Hz
- Common mode rejection: >90dB
- Input impedance: >10MΩ
- Time constant: ≥3.2 s
- Max electrode potential: ±300mV DC
- Dynamic range: ±10mV
- Isolate voltage: 4000V
- Current leak: <10μA

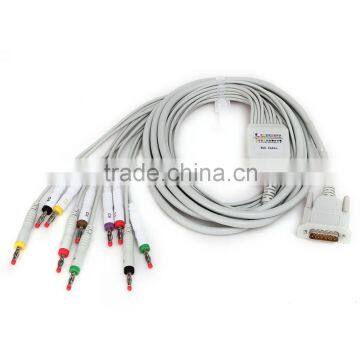

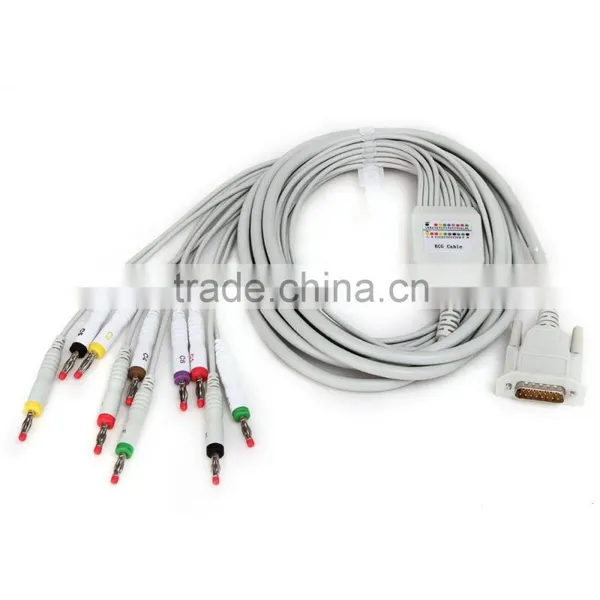

- Patient cable: standard 10-wire, 15-pin D connection

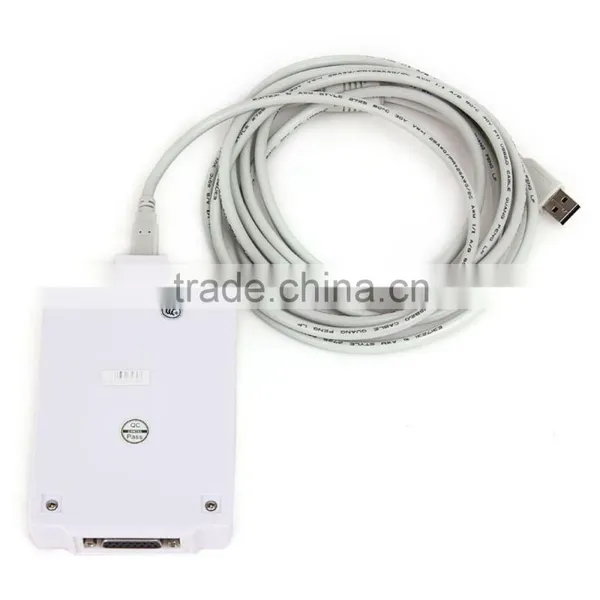

- PC interface: USB
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
