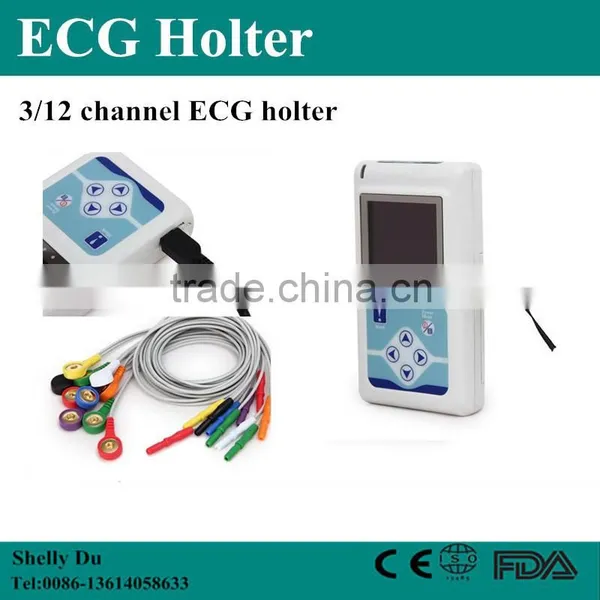

2016 3/12 Channel ECG Holter System -24 Hours CS-3CL Cardiac Heart Diagnose Monitor with Free Software-Shelly

Holter Monitor

Version: CardioScape Holter Monitor

Functions & Features for Holter Monitor:

QRS Templates
Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can be superimposed. Weak signal can be identified such as P wave.

• Arrhythmia Analysis
  VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc.
• HRT (VE Chaos) Analysis
  HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF.
• Pacemaker Analysis
  Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers.
• HRV (Heart Rate Variability) Analysis
  Time domain and Spectral domain HRV analysis, superlower HRV analysis
• Atrial Fibrillation and Atrial Flutter Analysis
  Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib.
• OSAS (Obstructive Sleep Apnea Syndrome) Analysis
  Using Holter test to detect the OSAS earlier and cost-saving.
• ST Analysis
  ST analysis trends, form and support report, identify ischemia location.

Holter Monitor Model: CS-3CL

Features for Holter Monitor:

• 3-lead Color LCD Holter recorder

• Compact size, light weight

• Fully programmable, high Fidelity

• Lower power consumption

• Fast data transfer

• Pacemaker detection

Specification for Holter Monitor:

• Channel: 3 digital recording channels for 12-lead

• Sample rate: 1000Hz

• Resolution: 12 bit sampling

• Frequency response: 0.05-60Hz

• Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG

• Storage: 2G built-in flash memory

• LCD display: ECG waveform and lead number

• Dimension: 80mmx45mmx18mm

• Weight: 75 grams (battery not included)

• Lead:  5 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)

• Power: 2 AA size battery

- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- AC/DC power, built-in rechargeable Ni-MH battery
- Mini size, hand-held, portable, convenient for doctors’ use anywhere
