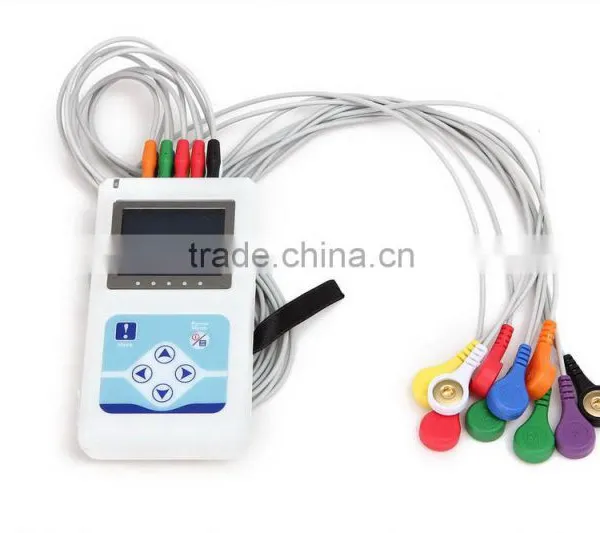

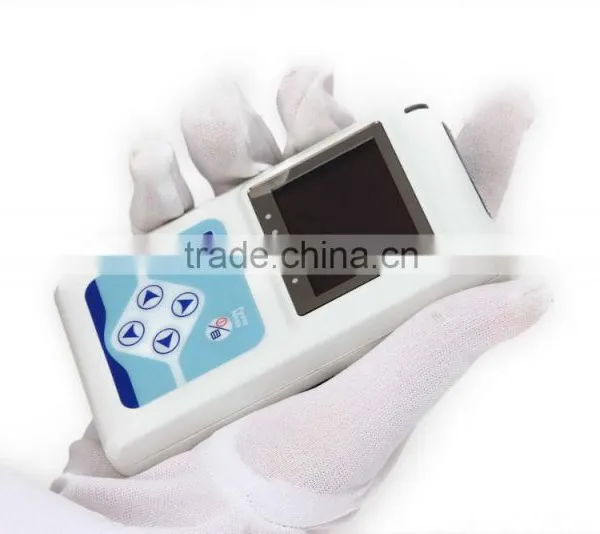

Handheld 12 Channels ECG Holter Monitor with free software 24 hour recorder
Features for Holter Monitor:
12-lead Color LCD Holter monitor
Compact size, light weight
Fully programmable, high Fidelity
Lower power consumption
Fast data transfer
Pacemaker detection
Specification for Holter Monitor:
Channel: 10 digital recording channels for 12-lead
Sample rate: 1000Hz
Resolution: 12 bit sampling
Frequency response: 0.05-60Hz
Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
Storage: 2G built-in flash memory
LCD display: ECG waveform and lead number
Dimension: 80mmx45mmx18mm
Weight: 75 grams (battery not included)
Lead: 10 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)
Power: 2 AA size battery
Safety Mode |
IEC60601-1 class I, type CF |
Lead selection |
Automatic and Manual |
Operation mode |
Automatic and Manual |
Input circuit |
Floating |
Calibrating voltage |
1mV ±5% |
Input current |
<100nA |
CMRR |
>103dB |
A/D |
12bit |
Frequency response |
0.05Hz-150Hz |
Filter |
AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance |
±300mV |
Sensitivity setting |
5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level |
≤15Vp-p |
Display |
LCD 160x96, visual size: 34x60 |
Recording system |
Thermal-array printing |
Noise level |
≤15μVp-p |
Power supply |
AC: 220V+-10% DC: 7.4 Lithium battery |
Size |
190x90x40mm |
Weight |
800g |
Click the link for more styles:
https://img13.fr-trading.com/productgrouplist-803129216/Holter.html
Click the picture for more information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
