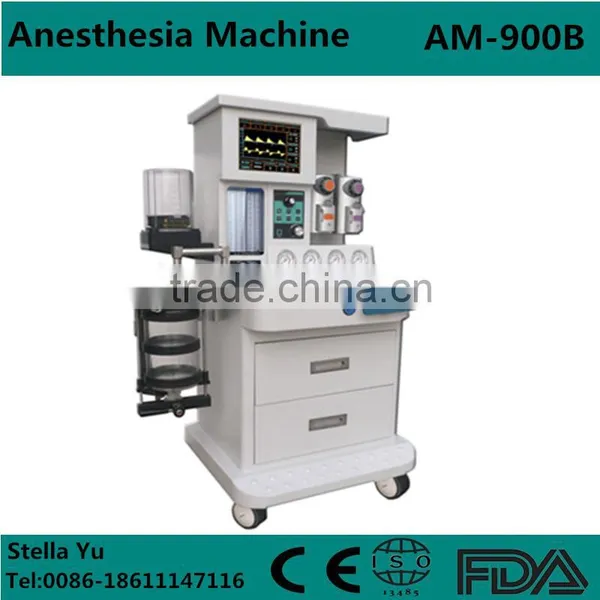

CE Marked Anesthesia Machine With Two Vaporizers

Features:

• Advanced versatile anaesthesia machine with more working modes including IPPV, VCV, PCV, SIMV, SIGH, MANUAL, STANDY, DEMO for selection
• 10.4-inch TFT color screen showing P-t & F-t dual channel waveform
• Adopts integrated computer controlled high speed data processing system with high reliability and advanced technology

Anesthesia Machine:

• Patient: Adult, Pediatric
• Driven mode: Pneumatically driven electronically controlled
• Mode: Semi-open, Semi0closed or closed system
• Power supply: 110/220V+/- 10%, 50/60Hz +/-1Hz
• Internal battery: DC12V( over 4 hours)
• Power consumption: ≤50W
• Dimension: 910W x 618L x 1355H(mm)
• Net weight: 112Kg

Main Unit:

• Circle absorber: compact circle absorber
• Bellow: 0-1600ml
• Gauge: 4 units, one is for N2O, one is for Air, two is for O2
• Flow meter(backlight design):
• O₂, N₂O, Air five-tube flow meter
• O₂ flow meter: 0L/min~1L/mim~10L/min
• N₂O flow meter: 0L/min~1L/mim~10L/min
• Air flow meter range: 0L/min~10L/min
• O₂ and N₂O Linkage Device
• Adjust O₂ and N₂O in proportion(O₂ concentration is not lower than 25%)
• Fast for oxygen:35L/min—75L/min
• Gas source pressure

O₂: 0.27MPa—0.55MPa

N₂O: 0.27MPa—0.55Mpa

Air: 0.27MPa—0.55MPa

• Anesthetic Vaporizer: two high precise vaporizers

Anaesthesia Ventilator:

• Respiration Pattern: IPPV,VCV,PCV,SIMV,SIGH,MANUAL,STANDBY,DEMO
• Display: 10.4 TFT color screen
• Waveform: P-t, F-t
• Tidal Volume: 20ml to 1600ml
• Respiratory frequency: 1 to 65bpm
• I:E ratio: 8:1--1:8
• Inspiration pause: 0--50%Ti
• Inspiration Pressure: 1--60cmH₂O
• Trigger Pressure: -10--10cmH₂O
• Pressure Alarm setting: High Alarm limit Set 1--60cmH₂O,Low Alarm limit Set 0--20cmH₂O
• O₂ Concentration Alarm setting: High Alarm limit Set 21--99%, Low Alarm limit Set 21--50%
• MV Alarm setting: High Alarm limit Set 10--99L/min, Low Alarm Limit Set 0--40L/min
• Monitoring Parameter (under both manual and control modes):
• O₂ concentration, MV, respiratory frequency, tidal volume, airway average pressure, PEEP, I:E ratio, air maximum pressure etc.
• Alarm parameters: pressure high alarm, pressure low alarm, O₂ concentration high alarm, O₂ concentration low alarm, MV high alarm, MV low alarm, AC power lost alarm, O₂ lost alarm etc.
• Alarm silence function
