Home > Products > ND:YAG Laser series > Q-switch Laser ND YAG for Tattoo Removal/laser yag

Q-switch Laser ND YAG for Tattoo Removal/laser yag

Name: Q-switch Laser ND YAG for Tattoo Removal/laser yag
Brand: SANHE
Availability: InStock

FOB Price

US$ 7,000 - 7,000 / Set

1 Set(Min. Order)

Port Beijing Sanghai Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	Nd: Yag Laser	Q-Switch	Yes
Style	Stationary	Certification	CE IEC, CE
Place of Origin	Beijing, China	Brand Name	SANHE
Model Number	SQ-3	Feature	Dark Circles, Pigment Removal, Pore Remover, Skin Rejuvenation, Tattoo Removal, Whitening

Product Description

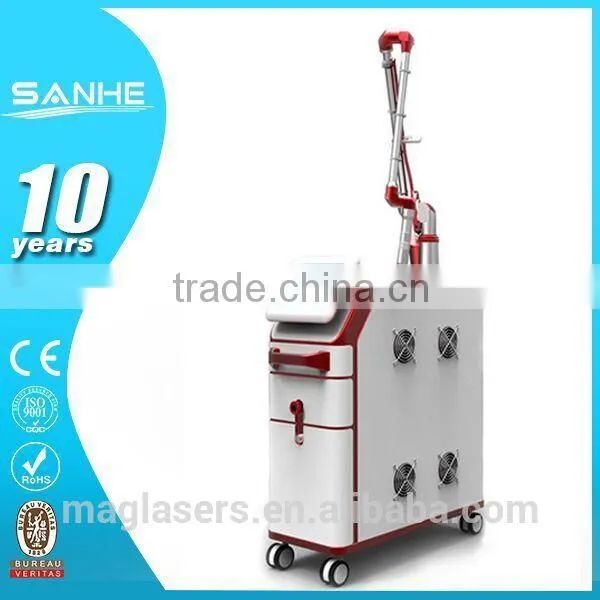

Active Q-Switch ND YAG Laser Tattoo Removal & Skin Care Machine

Principle of therapy:

1. Therapy of epidermis and dermis pigmentation

Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.

2. Therapy of the dilatation of capillary vessel

Utilizing the heat effect of the Nd: Yag Laser,, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.

Indications of Treatment:

Dermis pigmentation

-----Birth mark, such as: Ota nevus, Ito nevus, black nevus

-----Pigment, such as: sun-burn spots, age spots, speckle, freckle, senior fleck

-----Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line

Epidermis pigmentation

-----Speckles: such as freckle, senior flecks, coffee spot......

Vascular lentigines

-----vascular lesion, spider vessel, spider veins

Skin rejuvenation with laser peeling

Specification:

Light source	Q-Switch ND: YAG solid-state laser
Wavelength	1064nm, 532nm
Output Energy	1064nm: 100-1500mj; 532nm:100-800mj
Energy density(max.):	1064nm: 15.0J/cm2; 532nm:6j/cm2
Pulse duration	8±2ns
Repetition Rate	1-10Hz adjustable
Spot Size	φ1-8mm adjustable
Light guide beam	650nm red laser
Cooling System	Closed Cycle Water to Air Heat Exchanger
Laser delivery	7 jointed articulated arm
Controlling system	10.4inch TFT color touch screen
Power requirement	220V,10A,50/60Hz; 110v,10A, 50/60Hz
Machine dimensions	680mm×400mm×820mm
Net weight	75kg
Note:	Technical data changed will not inform specially

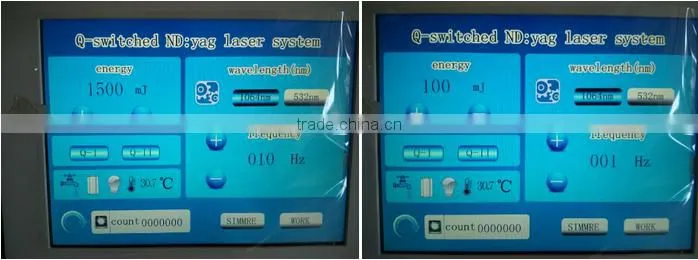

Interface of our machine:

Advantage:

7 jointed arm delivery system, make it easy for longtime treatment.

650nm led beam point, find the right treatment area exactly.

Motor drived auto-switching with 1064/ 532nm wavelength change.

Spot size can be adjusted through forcus ajdustment lens--------------------1-8mm

High power for fast and effective treatment---------1064nm: 100-1500mj; 532nm:100-800mj

Operation and parameter adjustment with 10.4 inch color LCD touch screen.

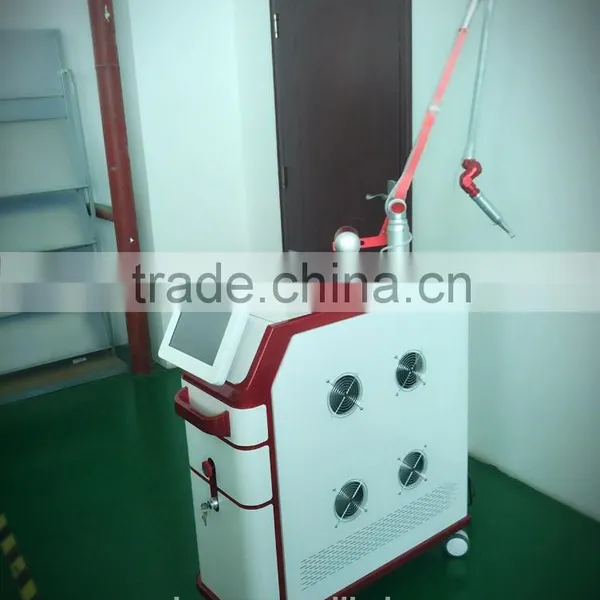

True Photos:

*Red Light aiming the spot

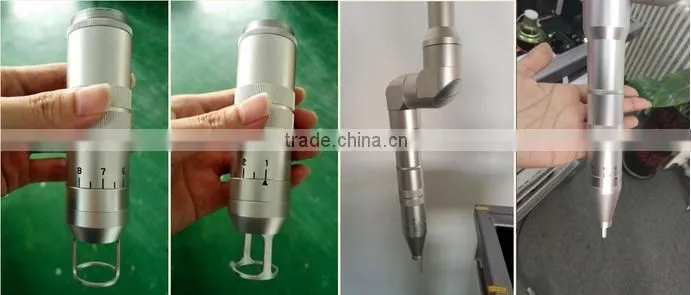

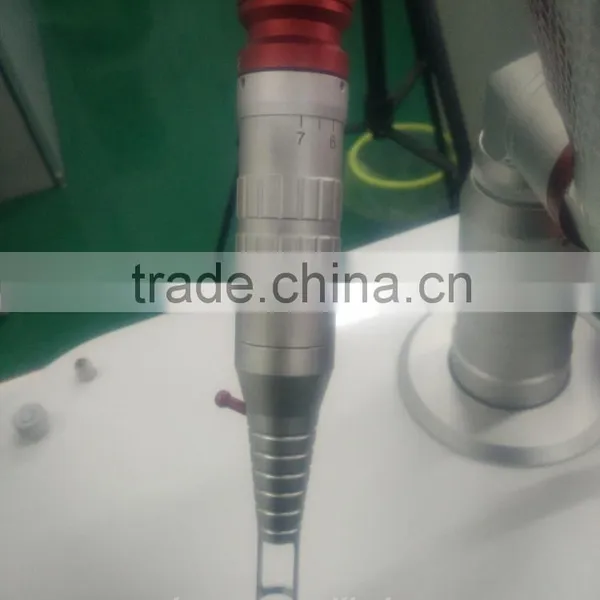

*Treatment Spot Size by Handpiece: 1-8mm

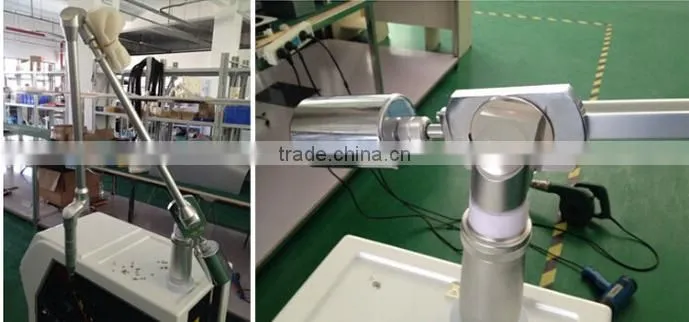

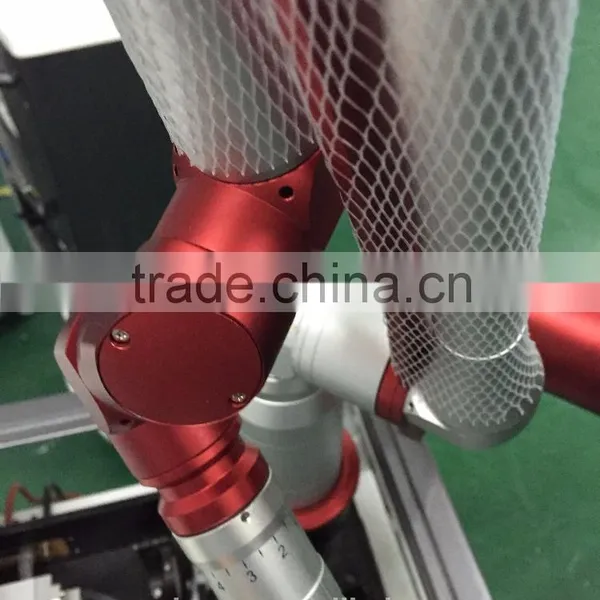

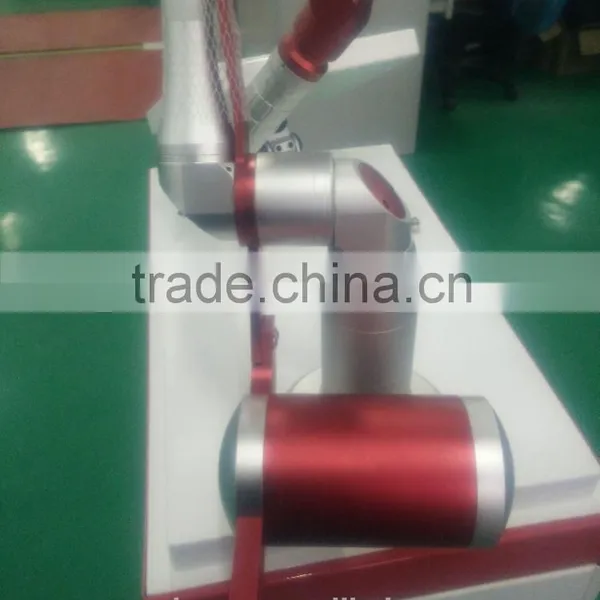

*7-Articulation Joint Spring Arm

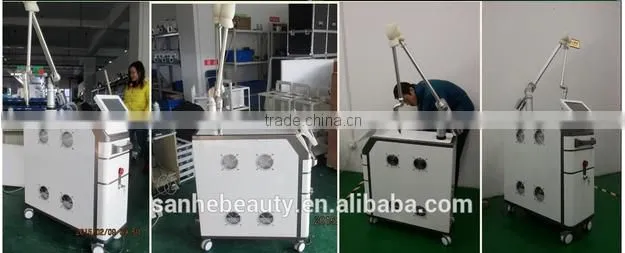

*Factory picture

*Before and After

Packaging & Shipping

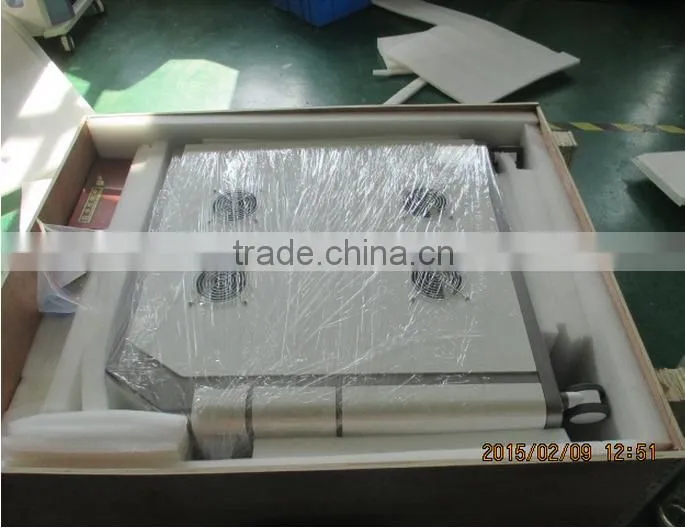

Packing

Shipping

Our Services

1. We have our own factory, be responsible to every customers, and cherish every chance to be a long term partner with anyone.

2. Our machines had been sold out to USA, Canada, Columbia, Brazil, Australia, Japan, UK, Poland, Saudi Arabic and so on.

3. We provide OEM and ODM service
