Remove spot and nevus
The speed of flashes could be set 3Hz/5Hz.Keep 3-4 fingers distance between head of handle and treatment area. It is better to use high energy for treatment until treatment area seeps a little blood. It is advised to use 1064 nm head for normal spot and nevus treatment, but for deep color spot and nevus, it is better to use 532nm head for treatment. It should have a 15-30days interval to continue next treatment until remove all.

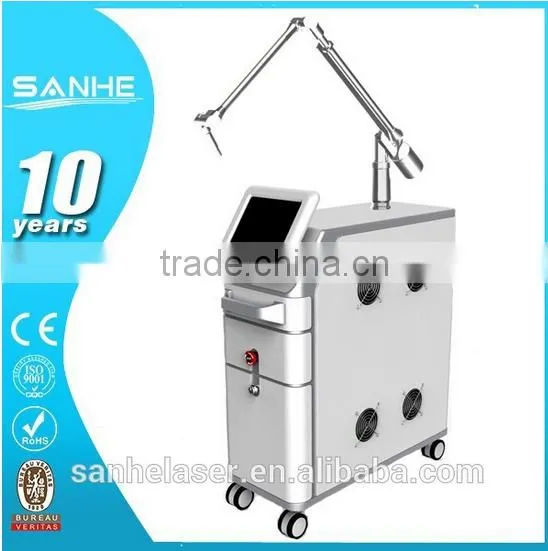

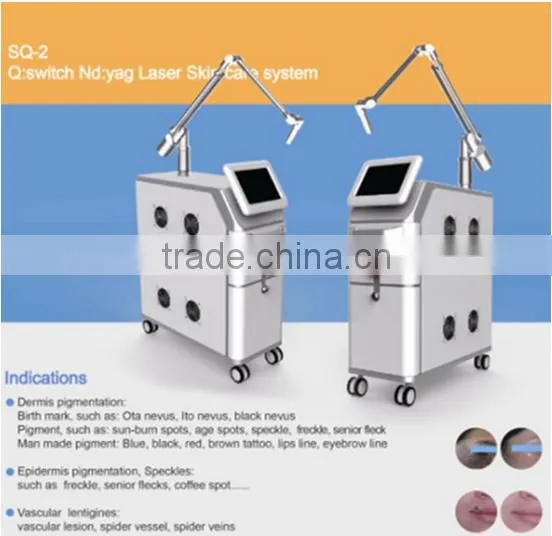

Newest Design Q-switched nd yag laser Device
Application
*Dermis pigmentation: Birth mark, such as: Ota nevus, Ito nevus, black nevus
*Pigment
*Speckles
Specification of Q switched nd yag laser :
Light source |
Q-Switch ND: YAG solid-state laser |
Wavelength |
1064nm, 532nm |
Output Energy |
1064nm: 100-1500mj; 532nm:100-600mj |
Energy density(max.): |
1064nm: 15.0J/cm2; 532nm:6j/cm2 |
Pulse duration |
8±2ns |
Repetition Rate |
1-10Hz adjustable |
Spot Size |
φ1-8mm adjustable |
Light guide beam |
650nm red laser |
Cooling System |
Closed Cycle Water to Air Heat Exchanger |
Laser delivery |
7 jointed articulated arm |
Controlling system |
10.4inch TFT color touch screen |
Power requirement |
220V,10A,50/60Hz; 110v,10A, 50/60Hz |
Machine dimensions |
680mm×400mm×820mm |
Net weight |
75kg |
Note: |
Technical data changed will not inform specially |
System advantages: TREATMENT THEORY Q-switched nd yag laser radiates the light ia absorbed by the pigmentations and results in an instantaneous blast that is light blasting principle The pigmentation particles are shattered into fragments some can be bounced out of the skin and others can be splited into tiny particles that can be engulfed by phagocytes and then eliminated by the lyphatic system.

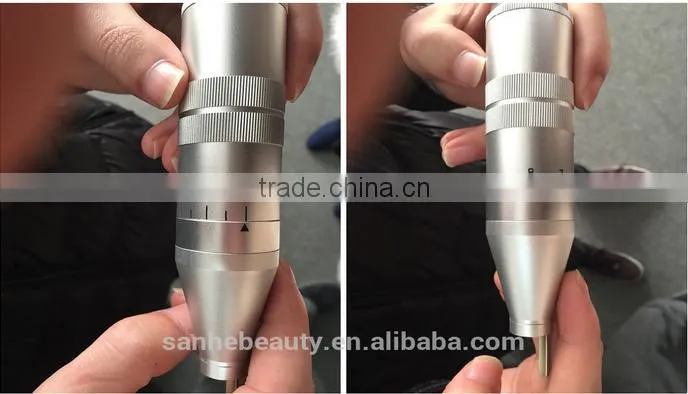

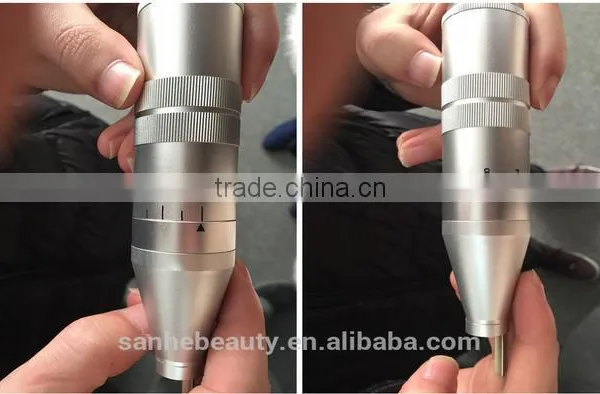

Treatment head: Spot size can be adjusted through forcus ajdustment lens(1-8mm adjustable)
The premium Q-switched Nd:YAG Laser offers the light of single wavelength 1064/532nm with sequential and uniform energy output, which will be on the target tissue directly to shatter pigments cell, not damage any normal tissue. It is very safe and effective treatment procedure for various tattoo and pigment lesions.
By bonding technology, the treatment performance is more effective than previous, it is our newest development with advantages of no light leakage, no need to debug, lower than 1‰ maintenance and much longer life time.

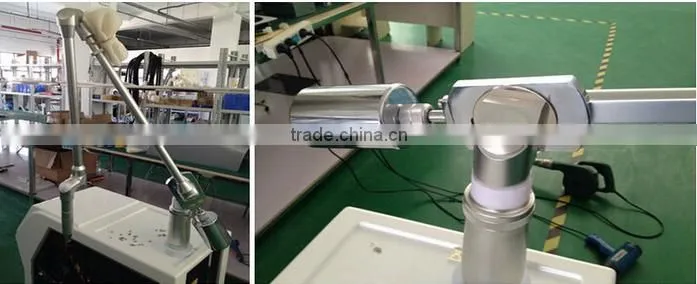

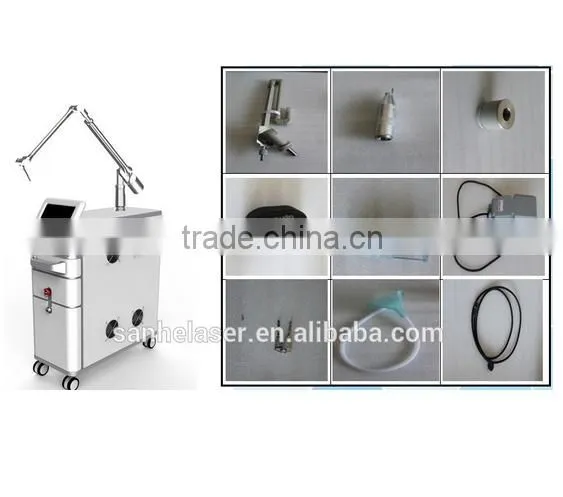

7 jointed arm delivery system, make it easy for longtime treatment.

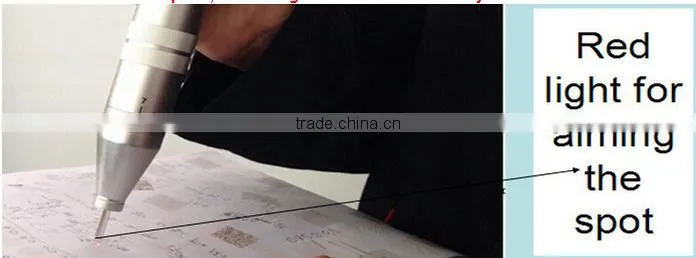

Red diode laser beam point, find the right treatment area exactly.

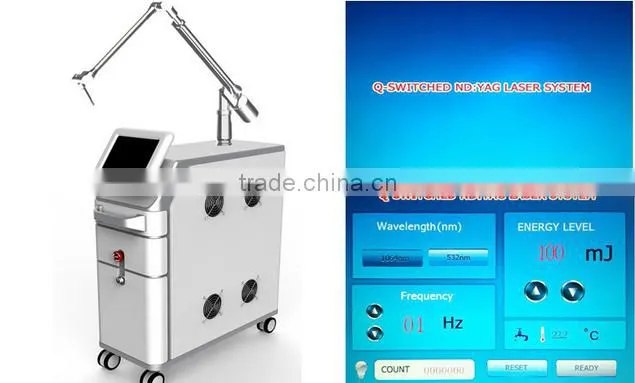

operate system :
Output energy 1064nm: 100-1500mj; 532nm:100-600mj adjustable
Frequency is 1-10HZ CONTIOUS adjustable
Traits of SQ-1:
|
1. No harm to the hair follicle and normal skin, leaving no scar.
|
|
2.The latest hi-tech of laser explosion in a twinkling.
|
|
3.Short treating time and easy operation
|
|
4. High quality controlled solid-state laser complying with international standard.
|
|
5. Computerized with big LCD
|
|
6. Tiny sense of pain, Anesthesia is unnecessary in most cases
|
|
7. No downtime and interruption of routine activities, no side effect.
|
|
8. Extensive patient and fast return of investment.
|
The effect picture:
Before and After Picture:

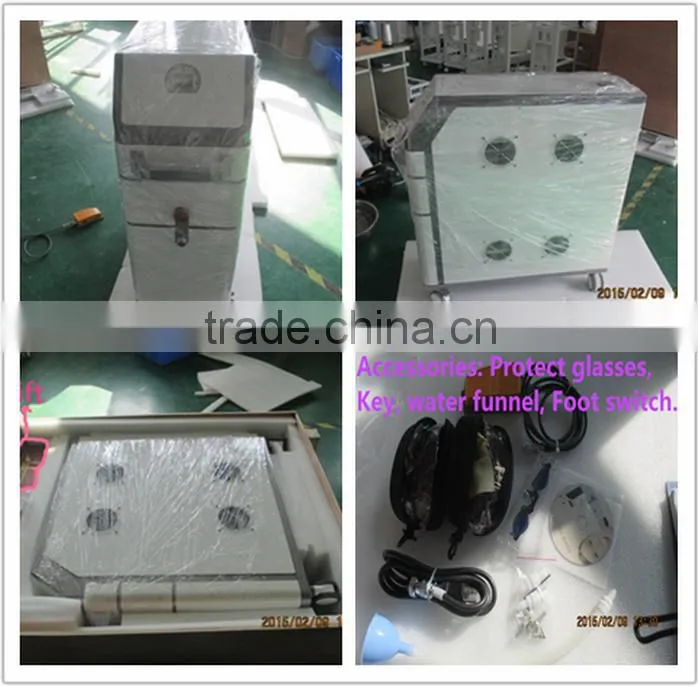

Package:
1. Provide 2 year warranty
2. In two year, any problem, we will send spare parts to you by DHL.
Provide video and file for your reference
3. Our Alibaba account online for 24 hours. Our phone is open for 24 hours.
Our team:
Our factory:
Our exhibition:
Function:
1.Getting rid of tatoos ,eyebrow,Ota's nevus .
2. Acne treatment
3.Skin rejuvenation
4.Pigmentation treatment
5.Vascular treatment.
6.Eliminate and smooth wrinkles treatment
7.Professional tatoo removal machine for sale
8.Body Tattoo & Eyebrow Tattoo & Eyeliner Removal
9.Various Pigmentation Lesions such as Freckles, Sun Spots,
10.Color Spots, Age Spots, Nevus, Birthmarks
11.Deep Facial Cleansing & Rejuvenation Assisted With Carbon Cream
