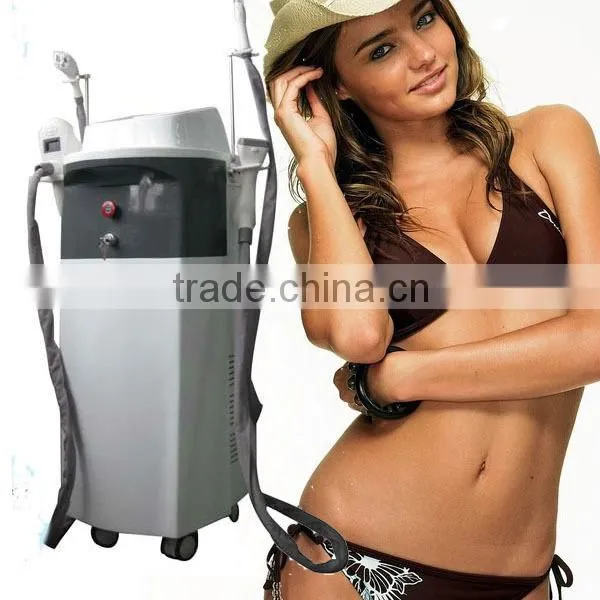

vertical 3 IN 1 Cryotherapy Vacuum Slimming Machine With Cavitation RF

Specifications

1.vacuum slimming machine
cess all kinds of oil crops
3.10M bipolar RF
4.infared treatment
5.factory supply

vertical 3 IN 1 Cryotherapy Vacuum Slimming Machine With Cavitation RF

4 treatment handles:

1.How does the QTS-slim6 work?
1. Infrared laser lowers skin impedance by heating skin and RF energy penetrates deeply into connective tissue.
2. The synergistic combination of infrared laser and conducted RF energy increases the oxygen intracellular diffusion by heating skin.
3. The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, significantly improving effect and safety, even for the upper eyelid area treatment.
4. Vacuum plus specially-designed rollers manipulate leads even RF penetration (5-15mm). Meanwhile, vacuum and roller mechanical tissue manipulation nips and stretch fibrillar connective tissue, effectively break down subcutaneous fat as well as extruded capillary vessel, increase lymphatic drainage, promote metabolism and reduce or shrink the size of the actual fat chamber, thereby greatly improving body shaping effect.



2.Our QTS-slim6 system is suitable for:
1. body shaping,
2. body circumference reduction,
3. cellulite reduction,
4. skin tightening,
5. wrinkle removal,
6. skin surface smooth,
7. massage,
8. eyelid area treatment.



3.Treatment principle:
Infrared laser reduces skin impedance by heating skin and RF energy penetrates deeply into connective tissue.The synergistic combination of infrared laser and conducted energies increase the oxygen intracellular diffusion by heating the skin.Vacuum plus specially designed rollers manipulate leas RF penetration to be even 5-15mm. At the same time, vacuum and roller mechanical tissue manipulation nips and stretches fibrillar connective tissue, effectively breaks down subcutaneous fat as well as extruded capillary vessel. Increase lymphatic drainage, promotes metabolism and reduces or shrinks the size of the actual fat and great improved body contouring effect.The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, greatly improve effect and safety, even for the upper eyelid area treatment.





4.Specification
1. LCD Screen: a) Main Screen: 8”/ 10.4” TFT Chromatic Touch Screen
               b) Screen of Applicator: Screen of Applicator1: 2.4”
                                    Screen of Applicator 2: 1.9”
2. Vacuum: Pulse Mode   Pulse Duration: 0.5s-7.5s
3. Negative Pressure:
a) Absolute Pressure: 10kPa-80kPa (7.6cmHg-60.8cmHg)
b) Relative Pressure: 20kPa-90kPa (15.2cmHg-68.4cmHg)
4. Rollers Speed: 0-36rpm
5. Rollers Working Mode: 2 Types
6. Safety Testing Mode: Real-time Online
7. RF frequency: 1-10MHz
8. Energy Density of RF: Max 60J/m³
9. Laser: 940nm
10. Laser Power: Max 20W
11. Applicator Tips: 2+2 (Optional)
12. Treatment Area: Standard: 4mm*7mm, 8mm*25mm
                   Optional: 30mm*50mm, 40mm*60mm
13. Wireless IC Card Management
14. Rated Input Voltage: AC 230V±10%, 50Hz±1Hz / AC110V±10%, 60Hz±1Hz (Optional)
15. Net Weight: 43kg
16. Physical Dimensions: 488mm*430mm*989mm



5.Inside of the machine





6.shipping way



7.Company certificates
