Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w

Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w thumbnail-1
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w thumbnail-2
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w thumbnail-3
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w thumbnail-4
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w photo-1
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w photo-2
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w photo-3
Home Use Facial Equipment Skin Face Lifting Tightening Co2 Fractional Laser (30w) 40w photo-4
US$ 4,500 - 4,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Laser Type:
CO2 Laser
Q-Switch:
No
Style:
Portable
Contact Supplier Request Quote Chat Now
Beijing Quartuslaser Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Laser Type CO2 Laser
Q-Switch No
Style Portable
Certification CE
Place of Origin Beijing, China
Brand Name QTS home use co2 fractional laser
Model Number QTS-GL80
Feature Acne Treatment, Anti-Puffiness, Blood Vessels Removal, Dark Circles, Face Lift, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Whitening, Wrinkle Remover, Other, Acne Treatment, Anti-Puffiness, Blood Vessels Removal, Dark Circles, Face Lift, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Whitening, Wrinkle Remover, Scar Removal

CO2 laser system

The CO2 laser with a specific wavelength of 10.6 nm can be absorbed by human body tissue (no matter what color the skin is) by nearly 100%. Through laser emitter, the micropulsed laser beam shoots on the target skin in nanometer level to achieve a controllable precise treatment .The dimension of shooting area only can be measured in nanometer, which is precise enough for operators to control and adjust the treated depth andlayer according to the clinical diagnosis.

The energy of CO2 laser is even and steady. Its focused energy aims only at target tissue without any injury to surroundings. It is the heat and electromagnetic effect of the laser that people use to conduct non-blood or less-blood cutting, cauterizing, gasification and accurate microsurgery so as to avoid skin burnt. During the treatment, biochemical reactions of optical-thermal accelerate collagen reproduction and skin recovery,after exfoliation of the tiny scar; fresh and smooth skin can be regenerated. The device outputs invisible laser. In order to operate with more ease, red semiconductor laser has been added to indicate.


Specifications


1.Medical Or Salon Use
2.Wrinkles reduction or removal
3.No side effect
4.Seven Scanning Shap


Product Description



Home Use Facial Equipment skin tightening co2 fractional laser (30w)



CO2 fractional laser principle

CO2 fractional laser effect principle is "focal photothermal effect ". Skin tissue has ability to repair itself. The skin was injury by trauma, but it could heal itself. The wound area is too large, the results of repair of scar formation. The wound is small, the skin can completely recover. Fractional laser every effect to skin only on one of the small region to generate thermal stimulation, retaining portion of skin is not affected, the role of tissue to the skin to stimulate collagen receipt hyperplasia, and no effect of skin tissue can be used as thermal diffusion region, avoid the possibility of thermal injury and other side effects, and can quickly promote skin healing, reach, and improve scars, skin firming pores purpose.



Treatment of co2 fractional laser

Perfect skinwhiteningwrinkle removal acne preventionfacial beauty for human tissue burningvaporization and coagulation. Mainly used for local and facial skin, repair skin light aging, improve uneven skin, large pores, rough skin, the skin relaxation phenomena, especially applicable to dispel various scars and wrinkles, acne, tattoo, stains, and pigmentation, as well as on the surface of any part of a variety of moles, warts, acne, skin tag, treatment of hemangioma.

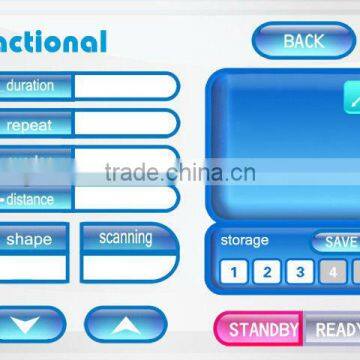

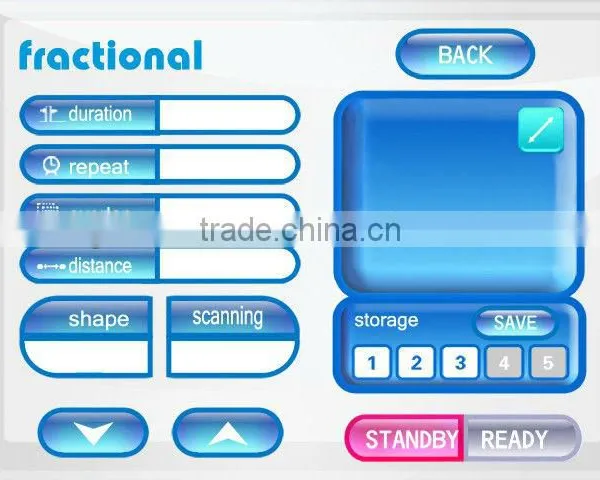

Color touch screen control panel

Home Use Facial Equipment skin tightening co2 fractional laser (30w)



Home Use Facial Equipment skin tightening co2 fractional laser (30w)



Technical parameters of co2 fractional laser

Laser wavelength 10.6 μm ± 0.1μ M
Three output mode Ultra pulse, continuous output and dot matrix output
The output terminal of power 1~40W
Lattice point output energy of each 5mj-100mj ( 16 speed adjustable )
Fractional output total energy 125mj+1kj
Scanner focal length f=50mm ( FFLS ) or f=100mm ( HFLS )
Focal spot diameter ≤ 0.1mm≤ 0.2mm ( FFLS ), ( HFLS )
Treatment of depth  2000μ m ( FFLS ), 600 μ m ( HFLS )
Guidelines for glory Green semiconductor laser ( 532nm,≤ 5mW )
System control microcomputer control
Exhaust system built-in smoke system
Cooling system built-in closed water cooling circulation system
Display interface ( 10.4 inch color touch screen )
Light guide system 2 joint torsion spring joint arm ( export)
Way of working galvanometer scanning ( lattice ):
FFLS scan size a maximum of 15*15mm
HFLS scan size a maximum of 20*20mm
The oval, triangular (standard and adjustable )
Scan rate  >10m/s continuous: 1~30W, every step 1W adjustable;
Pulse frequency modulation Pulse frequency modulation 0-999Hz, every step 1Hz adjustable
Environment temperature 5~40 degree
Relative humidity ≤ 80%
Power supply 220V, 50Hz, 3A
Dimensions 500mm 650mm 1100mm
Weight 45kg

Technology of Ultrapulse
Mainly let the original average output of the laser energy concentrated in a very short period of time then output, due to the high pulse power, short time, and more round spot, the pressure on the surface from laser heat transfer effects is low (small heat-affected zone).
Scanning pattern rectangle, square, triangle, circle, ellipse, straight line
Pulse interval

0-5000ms, every step 1ms adjustable
LCD

8/10.4

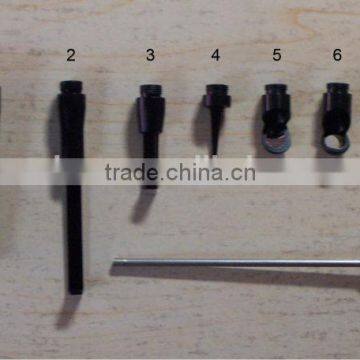

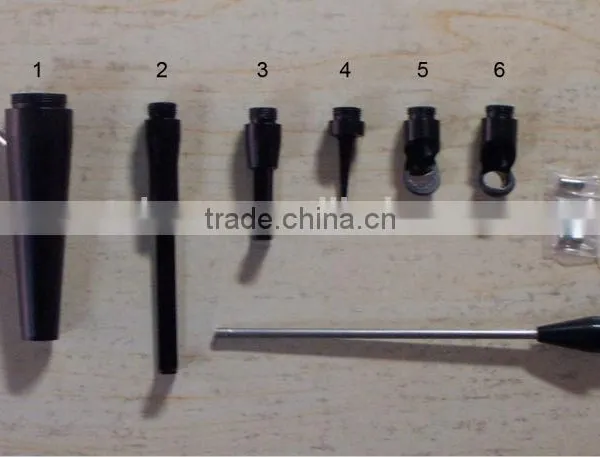

Fractional laser probe, and  Pixel laser probe

Home Use Facial Equipment skin tightening co2 fractional laser (30w)



Back











Home Use Facial Equipment skin tightening co2 fractional laser (30w)







Packaging & Shipping











Home Use Facial Equipment skin tightening co2 fractional laser (30w)





FUNCTIONS OF Portable Fractional CO2 Laser



Sealed-off CO2
CW,Pulse and Super Pulse Operation and Scanner  Modes
Thin Film Key Switch, Microprocessor Controlled
Alphanumeric Message Display
7-joint spring balanced articulated arm
Pilot Beam Of Diode Laser
Safety Protection with automatic alarm


APPLICATIONS FOR Portable Fractional CO2 Laser



Skin renewing and resurfacing;

Skin tightening;

Acne and acne scar removal;

Smooth burnt scars and surgery scars, dermabrasion etc-;

Remove intractable chloasmas and pigmentation;

Sun damage recovery

 Theory - co2 fractional laser

    CO2 Fractional laser is the most advanced conceptual fractional CO2 skin peeling laser system with a wavelength of 10600nm. In addition to its fine skin-peeling effect, it can effectively penetrate the laser beam into the dermis . It is the most beneficial skin recovery system and can achieve the long-term effect of collagen remodeling as well as improvement of aged skin conditions due to exposure to light. It can be very safely applied to various types of scars compared to the existing 100% total layer skin peeling lasers (CO2 or Er: YAG). In addition, it does not require a long period of recovery or side effects. It can remodel various types of deformed scars and skin tissue very effectively.




















Our Services



Guarantee: We offer 1 years free warranty, lifetime maintain, 24 hours calling service.
Service:There is OEM&ODM service for distributor.
Training: After you get the machine, there is user manual, maintain manual, training CD guide you to operate the machine.



Dear friend:

thanks for you interest ,welcome you to contact me

Application:



1. Application Range of Fractional treatment handpiece
    a. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
    b. Various Scars: Burn Scars, Acne Scars, Surgical Scars and Keloid;
    c. Reconstruction of photoaging skin.

2. Application Range of Incision Handpiece
    a. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery
    b. In cosmetic surgery, it can be adapted to incisions for Blephaplasty, Skin Tags and Ingrow Nails, Compound Nevus and Intra Dermal Nevus etc


Product Tags: laser resurfacing for acne scars , scar laser removal , rf fractional co2 laser machine
