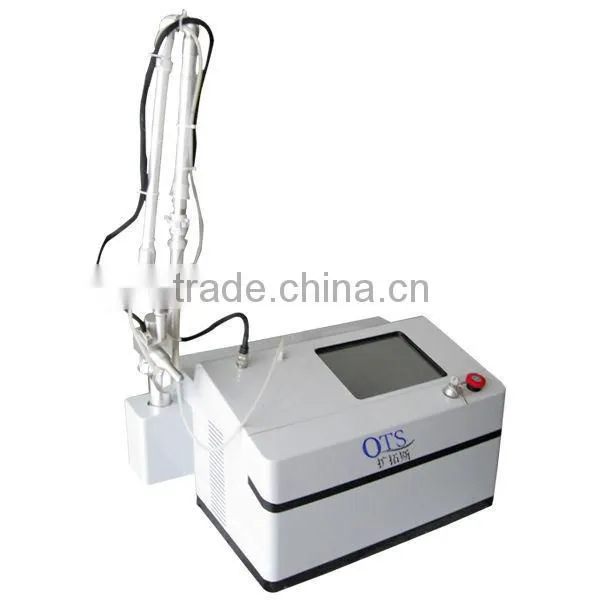

New!!! Fashion and Practical medical portable co2 laser 200w

Specifications

1.Medical Or Salon Use
2.Wrinkles reduction or removal
3.No side effect
4.Seven Scanning Shape
5.OEM ODM

New!!! Fashion and Practical medical portable co2 laser 200w









CO2 fractional laser principle

CO2 fractional laser effect principle is "focal photothermal effect ". Skin tissue has ability to repair itself. The skin was injury by trauma, but it could heal itself. The wound area is too large, the results of repair of scar formation. The wound is small, the skin can completely recover. Fractional laser every effect to skin only on one of the small region to generate thermal stimulation, retaining portion of skin is not affected, the role of tissue to the skin to stimulate collagen receipt hyperplasia, and no effect of skin tissue can be used as thermal diffusion region, avoid the possibility of thermal injury and other side effects, and can quickly promote skin healing, reach, and improve scars, skin firming pores purpose.



Treatment

Perfect skinwhiteningwrinkle removal acne preventionfacial beauty for human tissue burningvaporization and coagulation. Mainly used for local and facial skin, repair skin light aging, improve uneven skin, large pores, rough skin, the skin relaxation phenomena, especially applicable to dispel various scars and wrinkles, acne, tattoo, stains, and pigmentation, as well as on the surface of any part of a variety of moles, warts, acne, skin tag, treatment of hemangioma.



Color touch screen control panel





Technical parameters

Laser wavelength	10.6 μm ± 0.1μ M
Three output mode	Ultra pulse, continuous output and dot matrix output
The output terminal of power	1~40W
Lattice point output energy of each	5mj-100mj ( 16 speed adjustable )
Fractional output total energy	125mj+1kj
Scanner focal length	f=50mm ( FFLS ) or f=100mm ( HFLS )
Focal spot diameter	≤ 0.1mm≤ 0.2mm ( FFLS ), ( HFLS )
Treatment of depth	2000μ m ( FFLS ), 600 μ m ( HFLS )
Guidelines for glory	Green semiconductor laser ( 532nm,≤ 5mW )
System control	microcomputer control
Exhaust system	built-in smoke system
Cooling system	built-in closed water cooling circulation system
Display	interface ( 10.4 inch color touch screen )
Light guide system	2 joint torsion spring joint arm ( export)
Way of working	galvanometer scanning ( lattice ):
FFLS scan size	a maximum of 15*15mm
HFLS scan size	a maximum of 20*20mm
The oval, triangular (standard and adjustable )
Scan rate	>10m/s continuous: 1~30W, every step 1W adjustable;
Pulse frequency modulation Pulse frequency modulation	0-999Hz, every step 1Hz adjustable
Environment temperature	5~40 degree
Relative humidity	≤ 80%
Power supply	220V, 50Hz, 3A
Dimensions	500mm 650mm 1100mm
Weight	45kg
Scanning pattern	rectangle, square, triangle, circle, ellipse, straight line
Pulse interval	0-5000ms, every step 1ms adjustable
LCD	8/10.4



Fractional laser probe, and  Pixel laser probe



Back











package   (machine)





package   (A light guide arm)



FUNCTIONS OF Portable Fractional CO2 Laser



Sealed-off CO₂ laser technology
CW,Pulse and Super Pulse Operation and Scanner  Modes
Thin Film Key Switch, Microprocessor Controlled
Alphanumeric Message Display
7-joint spring balanced articulated arm
Pilot Beam Of Diode Laser
Safety Protection with automatic alarm

APPLICATIONS FOR Portable Fractional CO2 Laser



Skin renewing and resurfacing;

Skin tightening;

Acne and acne scar removal;

Smooth burnt scars and surgery scars, dermabrasion etc-;

Remove intractable chloasmas and pigmentation;

Sun damage recovery



Guarantee: We offer 1 years free warranty, lifetime maintain, 24 hours calling service.
Service:There is OEM&ODM service for distributor.
Training: After you get the machine, there is user manual, maintain manual, training CD guide you to operate the machine.
