skin fractional CO2 laser machine scar removal skin resurfacing and vaginal rejuvenation ( CE certiificate)
CO2 fractional laser principle
CO2 fractional laser effect principle is "focal photothermal effect ". Skin tissue has ability to repair itself. The skin was injury by trauma, but it could heal itself. The wound area is too large, the results of repair of scar formation. The wound is small, the skin can completely recover. Fractional laser every effect to skin only on one of the small region to generate thermal stimulation, retaining portion of skin is not affected, the role of tissue to the skin to stimulate collagen receipt hyperplasia, and no effect of skin tissue can be used as thermal diffusion region, avoid the possibility of thermal injury and other side effects, and can quickly promote skin healing, reach, and improve scars, skin firming pores purpose.
Treatment
Perfect skinwhiteningwrinkle removal acne preventionfacial beauty for human tissue burningvaporization and coagulation. Mainly used for local and facial skin, repair skin light aging, improve uneven skin, large pores, rough skin, the skin relaxation phenomena, especially applicable to dispel various scars and wrinkles, acne, tattoo, stains, and pigmentation, as well as on the surface of any part of a variety of moles, warts, acne, skin tag, treatment of hemangioma.
Color touch screen control panel
Technical parameters
Laser wavelength:10.6 μm
output mode:Ultra pulse, continuous output and fractional
The output terminal of power: 1~40W
Lattice point output energy of each: 5mj-100mj ( 16 speed adjustable )
Fractional output total energy: 125mj+1kj
Scanner focal length: f=50mm ( FFLS ) or f=100mm ( HFLS )
Focal spot diameter: ≤ 0.1mm≤ 0.2mm ( FFLS ), ( HFLS )
Treatment of depth: 2000μ m ( FFLS ), 600 μ m ( HFLS )
Guidelines for glory: Green semiconductor laser ( 532nm,≤ 5mW )System controlmicrocomputer control
Exhaust system: built-in smoke system
Cooling system: built-in closed water cooling circulation system
Displayinterface: ( 10.4 inch color touch screen )
Light guide system: 7 joint torsion spring joint arm
Way of workinggalvanometer scanning ( lattice ): FFLS scan sizea maximum of 15*15mm
HFLS scan sizea: maximum of 20*20mm The oval, triangular (standard and adjustable )
Scan rate >10m/s continuous: 1~30W, every step 1W adjustable;
Pulse frequency modulation: 0-999Hz, every step 1Hz adjustable
Ultrapulse duration: 100us to 1700us
Ultrapulse frequency:10-999Hz
Aiming beam:5mW pilot beam(650nm)
Environment temperature: 5~40 degree
Relative humidity≤ 80%
Power supply: 220V, 50Hz, 3A
Weight: 45kg
Scanning pattern: rectangle, square, triangle, circle, ellipse, straight line
Pulse interval: 0-5000ms, every step 1ms adjustable
LCD: 8/10.4

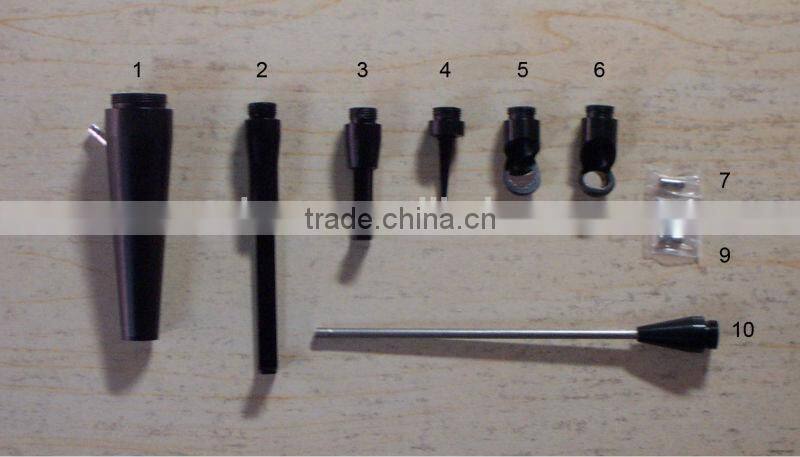

Fractional laser probe, and Pixel laser probe
Back
package (machine)
package ()
FUNCTIONS OF Portable Fractional CO2 Laser
Sealed-off CO2 laser technology
CW,Pulse and Super Pulse Operation and Scanner Modes
Thin Film Key Switch, Microprocessor Controlled
Alphanumeric Message Display
7-joint spring balanced articulated arm
Pilot Beam Of Diode Laser
Safety Protection with automatic alarm
APPLICATIONS FOR Portable Fractional CO2 Laser
Skin renewing and resurfacing;
Skin tightening;
Acne and acne scar removal;
Smooth burnt scars and surgery scars, dermabrasion etc-;
Remove intractable chloasmas and pigmentation;
Sun damage recovery
Guarantee: We offer 1 years free warranty, lifetime maintain, 24 hours calling service.
Service:There is OEM&ODM service for distributor.
Training: After you get the machine, there is user manual, maintain manual, training CD guide you to operate the machine.
